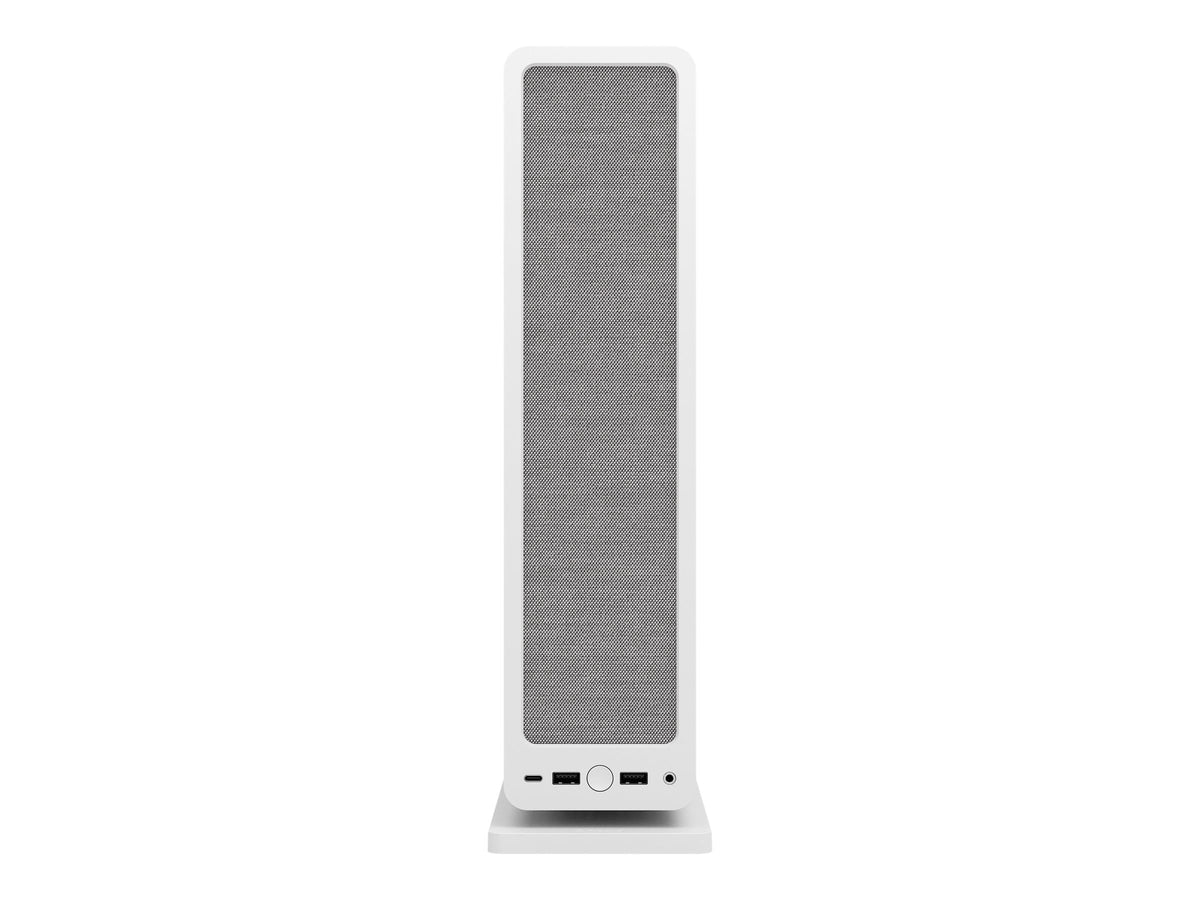

Fractal Design Ridge PCIe 4.0 White Mini ITX Console Style Cabinet

The white Ridge. A 12.6 litre Mini ITX case that stands vertically or lies flat like a console, taking a full length 335mm graphics card via a PCIe 4.0 riser that mounts the GPU alongside the motherboard.

Read this before you buy

CPU cooler clearance is 70mm, so a low profile cooler only. The power supply must be SFX or SFX-L, not standard ATX.

Specifications

• Model: Ridge PCIe 4.0 White. Part number FD-C-RID1N-12
• Type: Mini ITX, 12.6 litres. Mini DTX possible with the 140mm bracket removed
• Orientation: vertical or horizontal console style
• Dimensions: 374 x 110 x 395mm vertical. Weight 4.3kg
• Material: Steel side panels in white, tool less slide off with thumbscrew lock
• Graphics card: 335mm length, 325mm with an SSD fitted. 137mm height, 125mm with top fans. 82mm thickness, 57mm with two 140mm side fans. 3 slot
• CPU cooler: up to 70mm
• Power supply: SFX or SFX-L only
• Included fans: 2 x 140mm Aspect 14 PWM, side mounted
• Radiator support: Side 120mm with a graphics card under 175mm, or up to 280mm with no card fitted
• Fan mounts: 2 x 120 or 140mm side, 3 x 80mm
• Drive bays: 4 x 2.5 inch, mounts included
• Riser: PCIe 4.0 riser card pre installed
• Front IO: 1 x USB 3.2 Gen 2x2 Type-C at 20Gbps, 2 x USB 3.0 Type-A, combo audio jack, power button and LED
• Warranty: 2 years

Note on revisions: This is the PCIe 4.0 revision. The earlier -01 and -02 part numbers shipped a PCIe 3.0 riser with known compatibility issues.

In the box: Cabinet with 2 pre installed Aspect 14 PWM fans, PCIe 4.0 riser, drive mounts, accessory box, manual.
