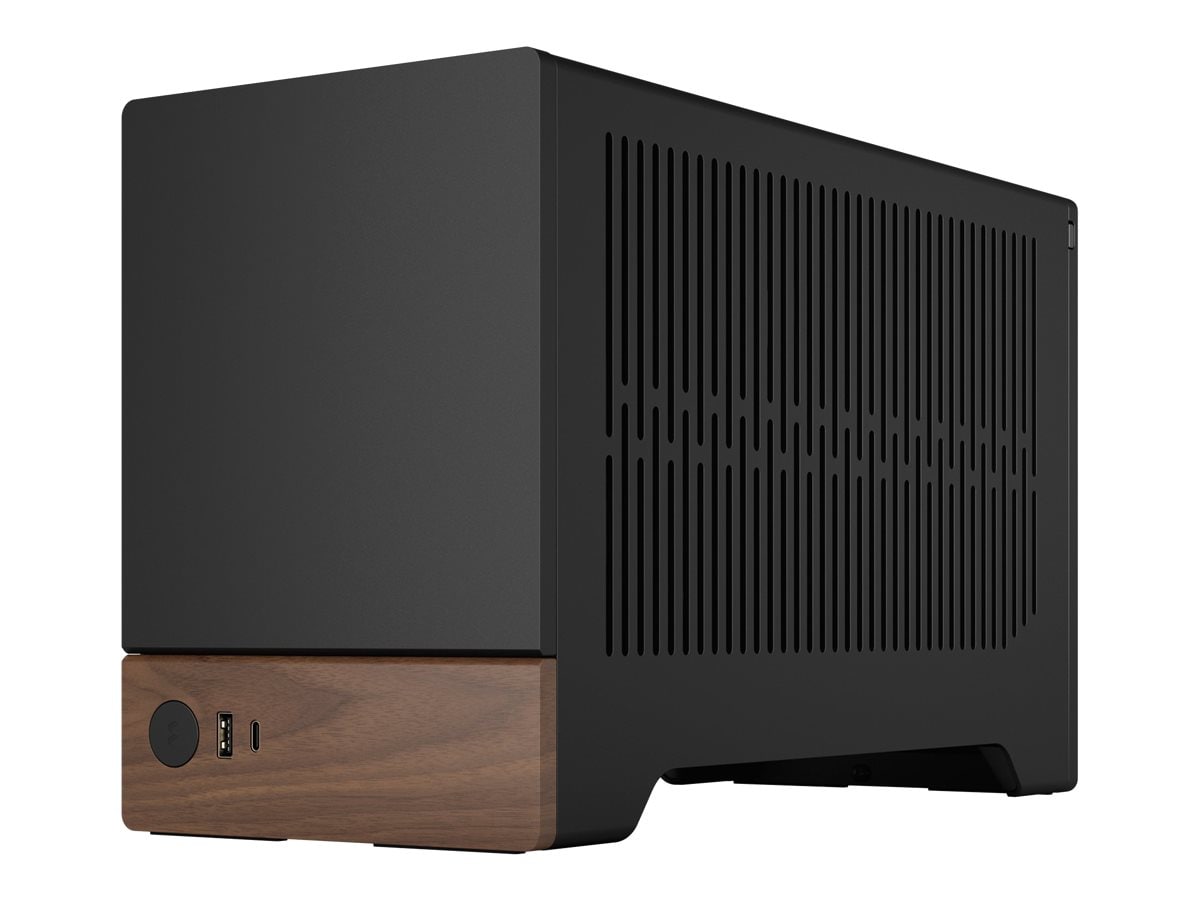

Fractal Design Terra Graphite Mini ITX Aluminium Cabinet

A 10.4 litre Mini ITX case in thick anodised aluminium with an 8mm milled aluminium front bar and an FSC certified solid walnut panel. The central wall slides steplessly through 30mm, so you choose between a thicker graphics card or a taller CPU cooler.

The sliding wall

GPU Mode gives you 3 expansion slots, 145mm of card height and 48mm of cooler clearance. CPU Cooler Mode gives you 2 slots, 131mm of card height and 77mm of cooler clearance. Same case, adjusted by hand.

Read this before you buy

No fans are included. There is one 120mm fan position and one 120mm radiator position. The power supply must be SFX or SFX-L up to 130mm. There is no audio jack on the front panel, and no 3.5 inch drive support.

Specifications

• Model: Terra Graphite. Part number FD-C-TER1N-01
• Type: Mini ITX, 10.4 litres excluding feet
• Dimensions: 343 x 153 x 218mm. Weight 3.1kg
• Material: Anodised aluminium panels with CNC milled detail, 8mm aluminium front bar, FSC certified solid walnut front panel. Tool less push to lock panels
• Graphics card: 322mm length. 145mm height in GPU Mode, 131mm in CPU Cooler Mode
• CPU cooler: 48mm in GPU Mode, 77mm in CPU Cooler Mode
• Power supply: SFX or SFX-L up to 130mm
• Included fans: None
• Radiator support: 1 x 120mm side position
• Fan mounts: 1 x 120mm
• Drive bays: 2 x 2.5 inch. No 3.5 inch support
• Expansion slots: 3 in GPU Mode, 2 in CPU Cooler Mode
• Riser: PCIe 4.0 riser cable included
• Front IO: 1 x USB Type-C 20Gbps, 1 x USB Type-A 5Gbps, power button. No audio jack
• Warranty: 2 years

In the box: Cabinet, PCIe 4.0 riser cable, drive mounts, accessory box, manual. No fans.
