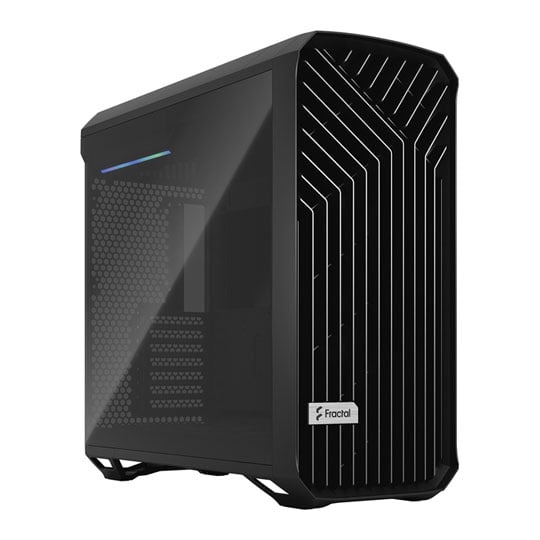

Fractal Design Torrent Black TG Dark Tint E-ATX Mid Tower Cabinet

Identical to the Torrent Black TG Light Tint in every respect except the glass. This one has a dark tint panel, which hides the interior more and shows lighting less. If you want a stealth build, this is the tint to pick.

Why the top mounted PSU matters

The power supply sits at the top of the case, so the entire floor becomes an intake plenum. Three 140mm fans in that base fire straight up at the graphics card, with nothing in the way. Two 180mm fans sit behind the open front grille. Five large intake fans, no shroud, no cable clutter under the board.

The fans

Two 180 x 38mm Dynamic X2 GP-18 PWM front, three 140mm Dynamic X2 GP-14 PWM bottom. The 180mm size is a thick Fractal specific format. A Nexus 9P Slim PWM hub is pre installed.

Dust filters are optional on purpose

Nylon front and base filters come in the box rather than fixed in place, so you choose between dust protection and maximum airflow.

Clearances

• Graphics card: 461mm, or 423mm with a front fan mounted
• CPU cooler: up to 188mm
• Power supply: ATX up to 230mm, top mounted

Specifications

• Model: Torrent Black TG Dark Tint. Part number FD-C-TOR1A-06
• Type: E-ATX mid tower
• Motherboard support: E-ATX, ATX, Micro ATX, Mini ITX, SSI-EEB, SSI-CEB
• Dimensions: 544 x 242 x 530mm. Weight 11.1kg net
• Material: Steel chassis, open front grille, dark tint tempered glass left panel
• Included fans: 2 x 180mm Dynamic X2 GP-18 PWM front, 3 x 140mm Dynamic X2 GP-14 PWM bottom. Non lit
• Radiator support: Front up to 360 or 420mm. Bottom up to 360 or 420mm. Rear 120 or 140mm
• Fan mounts: 7 x 120 or 140mm, or 4 x 180mm total
• Drive bays: 2 x 3.5 inch, 4 x 2.5 inch
• Expansion slots: 7
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, HD audio, power and reset
• Dust filters: Optional nylon front and bottom filters supplied
• Warranty: 2 years

Note: Dark tint glass. The Light Tint version is part number FD-C-TOR1A-01 and is otherwise the same case.

In the box: Cabinet with 5 pre installed fans, Nexus 9P Slim PWM hub, GPU support bracket, fan brackets, optional nylon filters, accessory box, manual.
