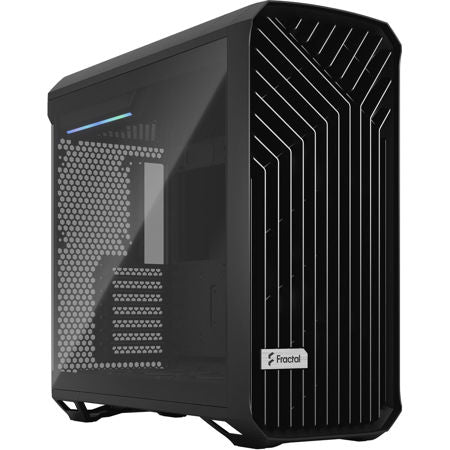

Fractal Design Torrent Black TG Light Tint E-ATX Mid Tower Cabinet

The Torrent moves the power supply to the top of the case, which turns the entire floor into an intake plenum. Three 140mm fans sit in that base firing straight up at the graphics card, and two 180mm fans sit behind the open front grille. Five fans, all of them large, all of them intake. This is the airflow case other airflow cases get compared against.

Why the top mounted PSU matters

With the PSU out of the basement there is no shroud blocking the floor, no cable clutter under the motherboard, and nothing between the base fans and your GPU. It is the single design decision the whole case is built around.

The fans

Two 180 x 38mm Dynamic X2 GP-18 PWM at the front, three 140mm Dynamic X2 GP-14 PWM in the base. The 180mm units are a thick Fractal specific format, not a commodity size, so plan replacements accordingly. A Nexus 9P Slim PWM hub is pre installed to run them all from one header.

Dust filters are optional on purpose

Nylon filters for the front and base are supplied in the box rather than fixed in place. Fit them for dust protection or leave them out for maximum airflow. Your call.

Clearances

• Graphics card: 461mm, or 423mm with a front fan mounted
• CPU cooler: up to 188mm
• Power supply: ATX up to 230mm, top mounted

Specifications

• Model: Torrent Black TG Light Tint. Part number FD-C-TOR1A-01
• Type: E-ATX mid tower
• Motherboard support: E-ATX, ATX, Micro ATX, Mini ITX, SSI-EEB, SSI-CEB
• Dimensions: 544 x 242 x 530mm. Weight 11.1kg net
• Material: Steel chassis, open front grille, light tint tempered glass left panel
• Included fans: 2 x 180mm Dynamic X2 GP-18 PWM front, 3 x 140mm Dynamic X2 GP-14 PWM bottom. Non lit
• Radiator support: Front up to 360 or 420mm. Bottom up to 360 or 420mm. Rear 120 or 140mm. No top position, the PSU sits there
• Fan mounts: 7 x 120 or 140mm, or 4 x 180mm total. Front 3 x 120/140mm or 2 x 180mm. Bottom 3 x 120/140mm or 2 x 180mm. Rear 1 x 120/140mm
• Drive bays: 2 x 3.5 inch with vibration damping grommets, 4 x 2.5 inch
• Expansion slots: 7
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, HD audio, power and reset
• Dust filters: Optional nylon front and bottom filters supplied
• Warranty: 2 years

In the box: Cabinet with 5 pre installed fans, Nexus 9P Slim PWM hub, GPU support bracket, 120 and 140mm fan brackets, optional nylon filters, accessory box, manual.
