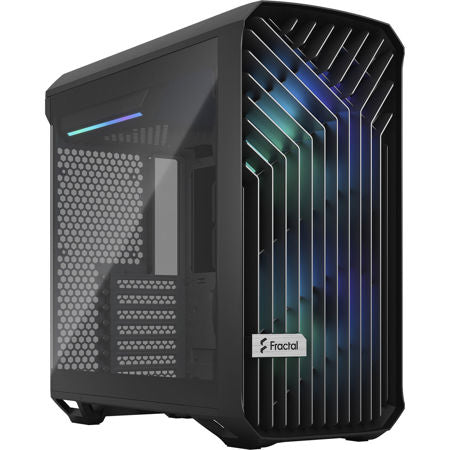

Fractal Design Torrent Compact RGB Black TG Light Tint E-ATX Mid Tower Cabinet

The Torrent architecture in a 450mm deep chassis. The power supply still moves to the top, the floor is still an open filtered intake, and two 180mm addressable RGB fans still sit behind the open front grille. What you give up versus the full size Torrent is the three factory fitted base fans and some clearance.

Why the top mounted PSU matters

Relocating the PSU to the top opens up the whole floor as an intake. On the Compact that base position is present and filtered but ships empty, so you can add fans or a radiator yourself.

The fans

Two 180 x 38mm Prisma AL-18 PWM addressable RGB fans at the front. A Nexus 9P Slim PWM hub is pre installed. Note that 180 x 38mm is a Fractal specific thick format, not a commodity size.

Clearances

• Graphics card: 330mm with a front fan mounted
• CPU cooler: up to 174mm
• Power supply: ATX up to 210mm, top mounted

Specifications

• Model: Torrent Compact RGB Black TG Light Tint. Part number FD-C-TOR1C-02
• Type: E-ATX mid tower
• Motherboard support: E-ATX up to 274mm, ATX, Micro ATX, Mini ITX, SSI-CEB
• Dimensions: 450 x 222 x 467mm. Weight 8.0kg net
• Material: Steel chassis, open front grille, light tint tempered glass panel
• Included fans: 2 x 180mm Prisma AL-18 PWM, addressable RGB, front. No bottom fans included
• Radiator support: Front up to 360 x 120mm or 280 x 140mm. Bottom up to 240 x 120mm or 280 x 140mm. Rear 120mm
• Fan mounts: 2 x 180mm, 4 x 140mm or 6 x 120mm total with included brackets. Bottom takes 2 x 180mm only with a Micro ATX or smaller board
• Drive bays: 1 combined 3.5 or 2.5 inch, 3 x 2.5 inch
• Expansion slots: 7
• Front IO: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0 Type-A, audio, power and reset
• Dust filters: Front and bottom
• Warranty: 2 years

In the box: Cabinet with 2 pre installed Prisma AL-18 RGB fans, Nexus 9P Slim PWM hub, fan brackets, accessory box, manual.
