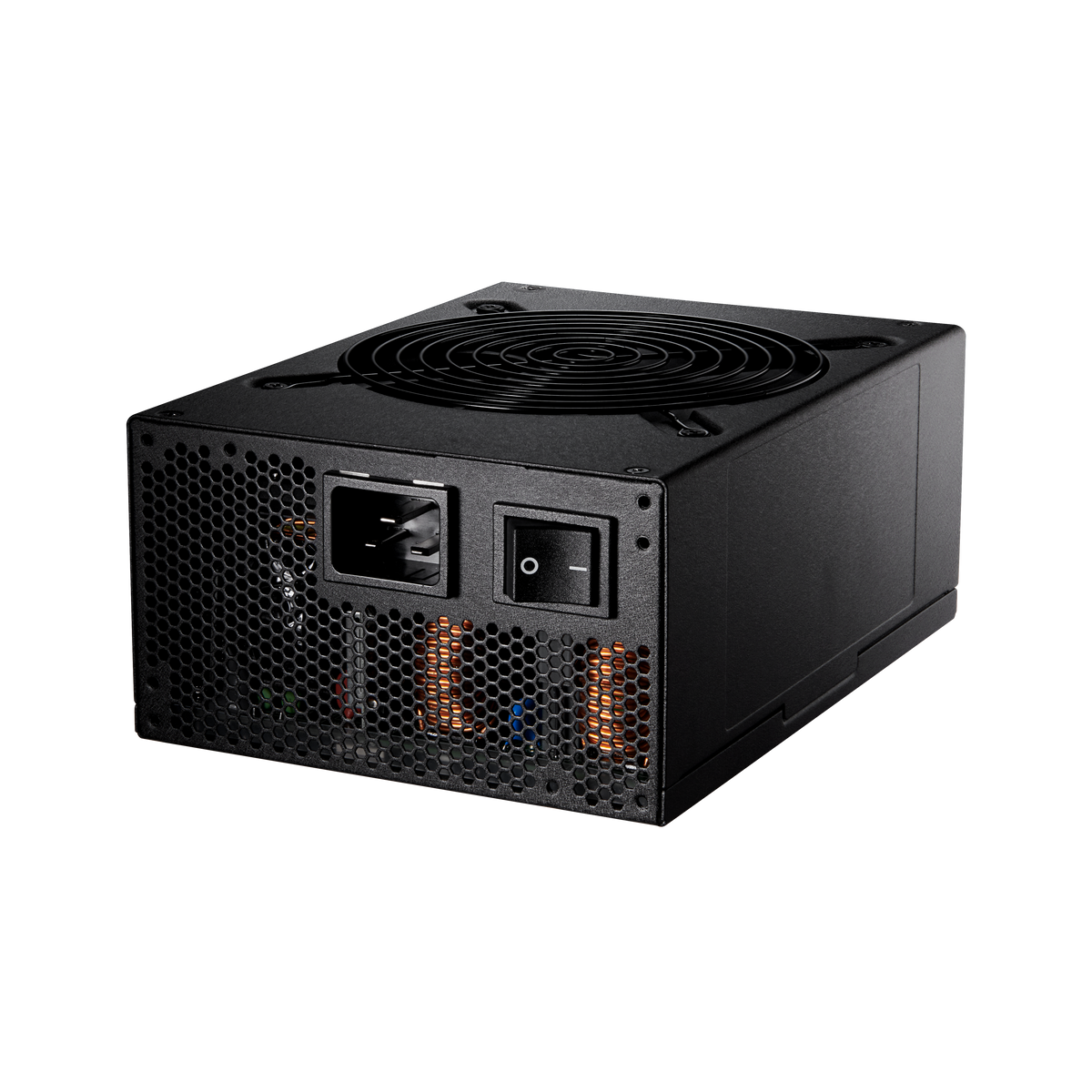

FSP 2500W 80 PLUS Platinum Fully Modular PSU with 4x 12V 2x6 Connectors

A 2500W supply with four PCIe Gen 5 12V-2x6 connectors, built to Intel's ATX12V v3.1 power supply design guide. This is server and multi GPU territory, not a gaming part.

Key specifications

• Continuous output: 2500W
• Efficiency: 80 PLUS 230V EU Platinum
• Standard: Intel PSDG ATX12V v3.1
• GPU power: 4x PCIe Gen 5 12V-2x6 connectors
• Fan: 135mm
• Form factor: ATX, 200 x 150 x 86mm
• Model: FSP2500-57APB

Read all of this before ordering

The Platinum rating is the 230V EU test. That is the correct standard for Indian mains, so the figure is relevant here. It is not directly comparable to a 115V Platinum rating, which is a harder test.

2500W needs a 230V 16A circuit. A standard 6A domestic socket will not supply this unit at full load. Plan the electrical side before the machine arrives.

At 200mm deep it is longer than most cases accept. Check your chassis specification carefully, and remember to allow another 40mm or so behind the unit for the cable bend.

Modular status not confirmed. FSP's product page for this model does not state whether the cabling is fully modular. We confirm with the distributor before dispatch rather than assume.

Warranty not published by FSP for this model. We confirm the covered period at the time of sale.

This is listed on FSP's OEM and industrial site rather than their consumer one, which reflects what it is for: multi accelerator workstations, render nodes and compute machines.

In the box: PSU, cable set, mains lead, mounting screws
