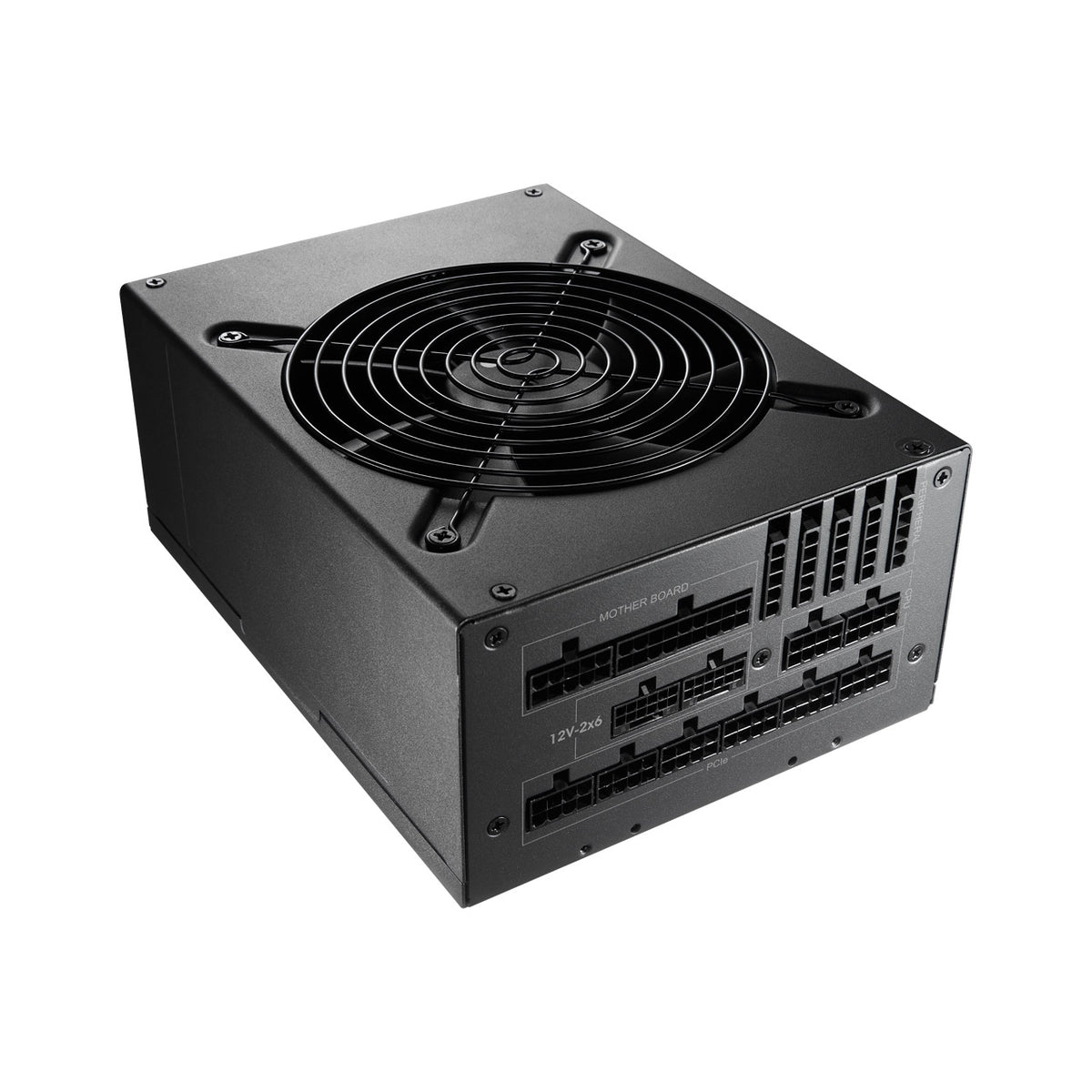

FSP CANNON PRO 12V-2x6 2000W 80 PLUS Gold Fully Modular PSU

The FSP CANNON PRO 2000W is a workstation and multi GPU class supply with twelve sets of 12V-2x6 connectors. It is built for machines running several high draw accelerator cards, not for a single card gaming build.

Key specifications

• Continuous output: 2000W at 200 to 240V mains
• Efficiency: 80 PLUS 230V EU Gold
• Standards: ATX12V V2.5 and EPS12V V2.92
• GPU power: 12 sets of 12V-2x6
• Cabling: fully modular
• Fan: 135mm dual ball bearing
• Form factor: ATX/EPS
• Model: FSP2000-52AGPBI

Three things to understand before ordering

The 2000W figure needs 230V mains. On a 200 to 240V supply, which is what India runs, you get the full 2000W. On 100 to 115V mains the unit derates to roughly 1200W. Not an issue here, but worth knowing if the machine ever travels.

It is not an ATX 3.x unit. Despite carrying 12V-2x6 connectors, this is built to ATX12V V2.5. It does not have the ATX 3.x transient spike rating. The connectors are there for connector count, not for ATX 3.x compliance.

The Gold rating is the 230V EU test. That test is easier to pass than the 115V one, so do not compare this Gold badge directly against a 115V Gold unit.

Two SKUs share this part number. FSP also sells a CANNON PRO 2000W built to ATX12 v2.4 with no 12V-2x6 at all, using the identical FSP2000-52AGPBI code. This listing is the 12V-2x6 version. Confirm with us before ordering if the connector set is what you are buying it for.

Warranty: FSP does not publish a warranty period for the CANNON PRO. We confirm at the time of sale.

In the box: PSU, modular cable set, mains lead, mounting screws
