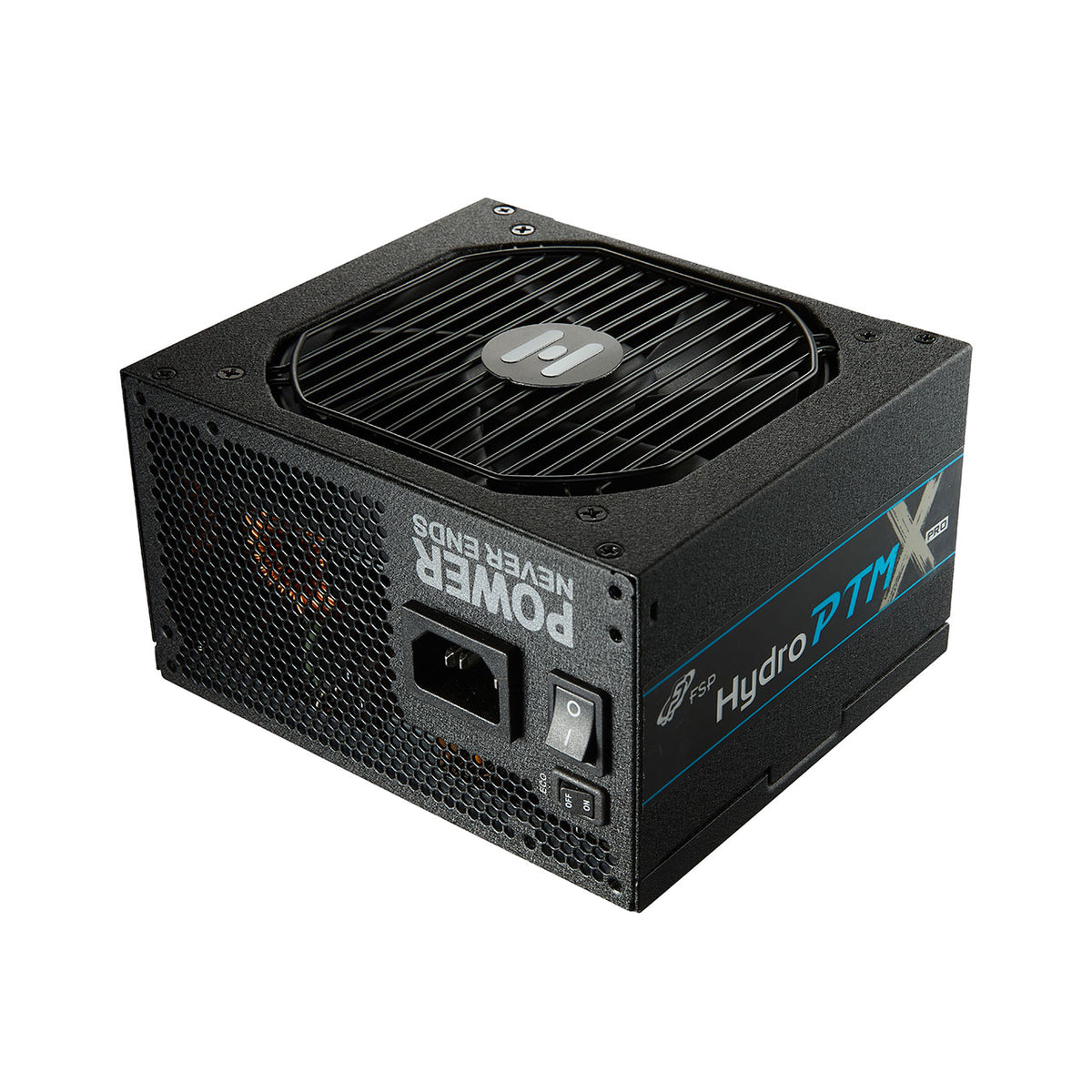

FSP Hydro PTM X PRO ATX 3.1 1000W 80 PLUS Platinum Short Depth PSU

The Hydro PTM X PRO 1000W delivers a kilowatt at Platinum efficiency from a body only 130mm deep. That is shorter than most 850W units, which makes it one of the few genuinely high wattage supplies that will fit a compact ATX case without fouling the front radiator or the drive cage.

Key specifications

• Continuous output: 1000W
• Efficiency: 80 PLUS Platinum
• Standards: ATX12V V3.1 and EPS12V V2.92
• GPU power: native 12V-2x6
• Cabling: fully modular
• Fan: 120mm fluid dynamic bearing
• Depth: 130mm, ATX form factor
• Warranty: 10 years
• Model: HPT3-1000M

Why the short depth matters

Compact ATX and small form factor cases usually cap PSU length around 140 to 160mm, and that limit tightens further once a front mounted radiator is fitted. At 130mm this unit leaves room for cable bends behind it, which is where most tight builds actually fail. The trade off is a 120mm fan rather than the 135mm used in the standard PTM PRO, so it works marginally harder at the same load.

In the box: PSU, modular cable set including 12V-2x6, mains lead, mounting screws, cable ties
