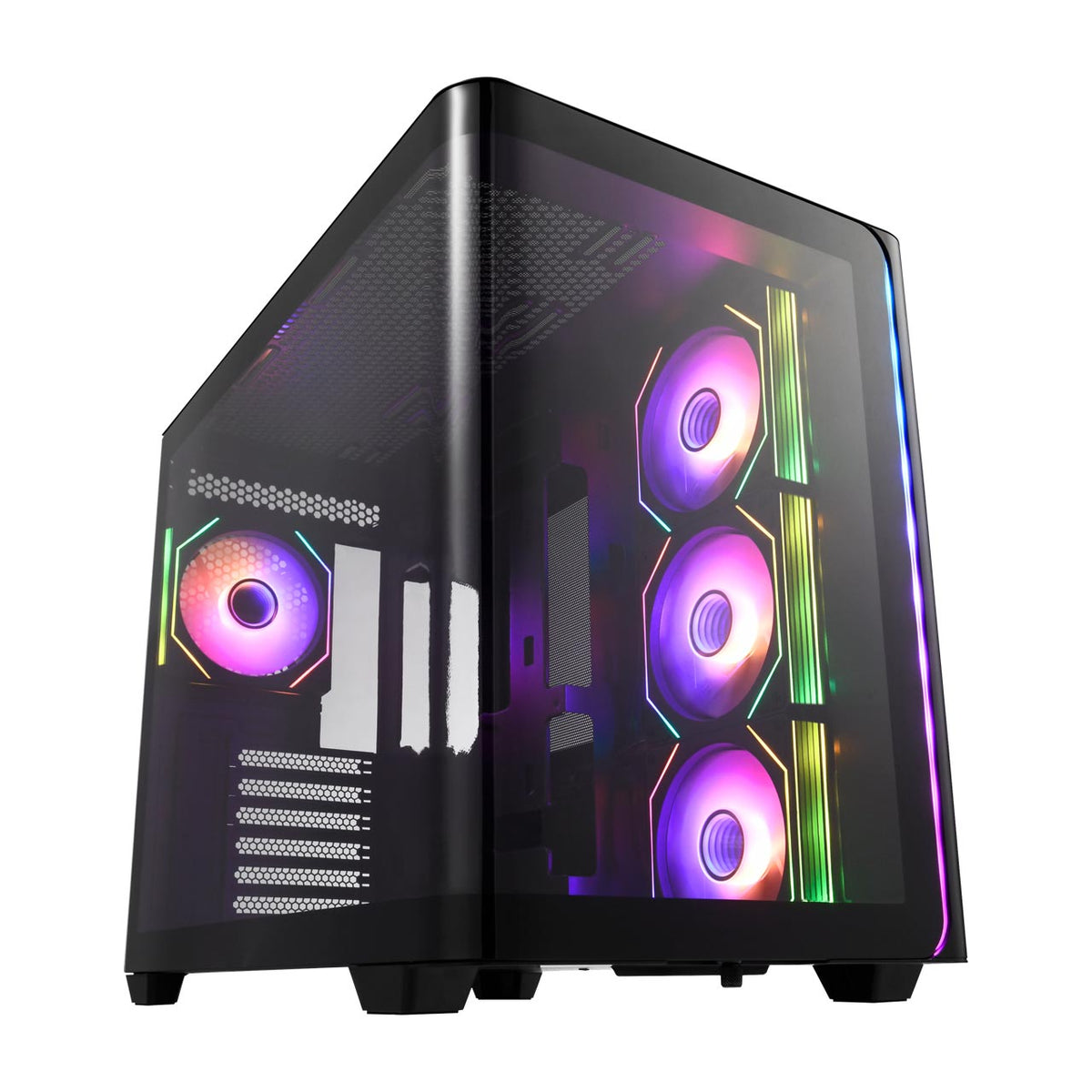

FSP M580 Black ATX Mid Tower Case with Back Connect Support and PWM ARGB Fans

An ATX mid tower built for back connect motherboards, where the power and data headers sit on the reverse of the board. Four PWM ARGB fans are fitted, three reverse blade at the side with a PWM controller and one at the rear.

Key specifications

• Form factor: ATX mid tower
• Motherboard: ATX including back connect designs, Micro-ATX, Mini-ITX
• Maximum GPU length: 445mm
• Maximum CPU cooler height: 160mm
• Radiator: side 3x 120mm or 2x 140mm, top 360mm, bottom 360mm, rear 120mm
• Drive bays: 2x 3.5 inch, 3x 2.5 inch
• Included fans: 3x 120mm reverse blade PWM ARGB at the side with controller, 1x 120mm PWM ARGB at the rear
• Front IO: 2x USB 3.0, 1x USB Type-C
• Dimensions: 460 x 285 x 398mm
• Colour: Black

Back connect board support

ASUS BTF, MSI Project Zero and Gigabyte Project Stealth boards route their connectors through the back of the PCB. A case has to have cutouts in exactly the right places for that to work. This one does, so paired with such a board you get a genuinely cable free view. With a conventional board it works normally, you just do not get that benefit.

The included fans are PWM, not just voltage controlled, and come with a PWM controller. That means real speed control across the whole set from one header, which many cases in this bracket do not offer.

Do not confuse this with the M580 PRO, which is a separate model with different specifications.

In the box: Chassis, 4x 120mm PWM ARGB fans pre-installed, PWM controller, screw kit, manual
