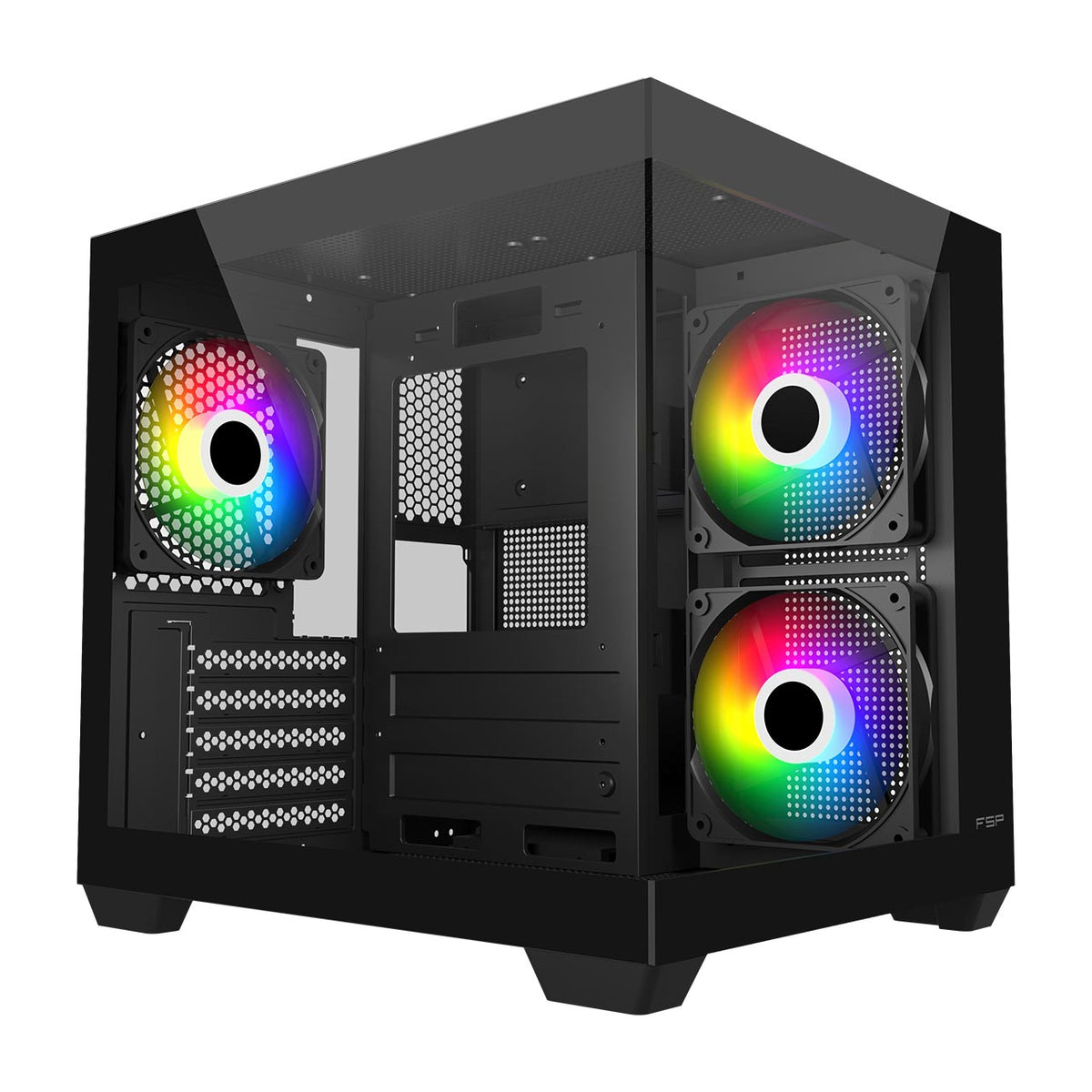

FSP S140 Black Small Form Factor Panoramic Case with 3 ARGB Fans

A 29.5 litre small form factor case with a panoramic corner view and three ARGB fans already fitted, two reverse blade at the side and one at the rear. Takes Micro-ATX and Mini-ITX boards.

Key specifications

• Form factor: small form factor, panoramic
• Motherboard: Micro-ATX (244 x 185mm) and Mini-ITX
• Maximum GPU length: 325mm
• Maximum CPU cooler height: 155mm
• Radiator: up to 240mm, side 2x 120mm or 240mm, bottom 2x 120mm or 240mm, rear 120mm
• Drive bays: 1x 3.5 inch, 2x 2.5 inch
• Included fans: 2x 120mm reverse blade ARGB at the side, 1x 120mm ARGB at the rear
• Front IO: 1x USB 3.0, 2x USB 2.0
• Dimensions: 333 x 275 x 323mm, 29.5 litres
• Colour: Black

Board size warning

FSP recommends the smaller Micro-ATX boards, such as H610M or B650M sized parts. A full width Micro-ATX board at 244 x 185mm will fit but will partly block the side fan positions, which costs you intake. Check your board's actual dimensions before ordering, not just its form factor label.

Also note the 325mm GPU limit and 155mm cooler limit. Both are typical for a case this size, and both exclude the largest current parts. A triple fan flagship graphics card will not fit.

S140 or S190: the two share the same chassis, dimensions and clearances. The S140 is the mesh version and the S190 is the three glass panel version. Buy the S140 for airflow, the S190 for looks.

In the box: Chassis, 3x 120mm ARGB fans pre-installed, screw kit, manual
