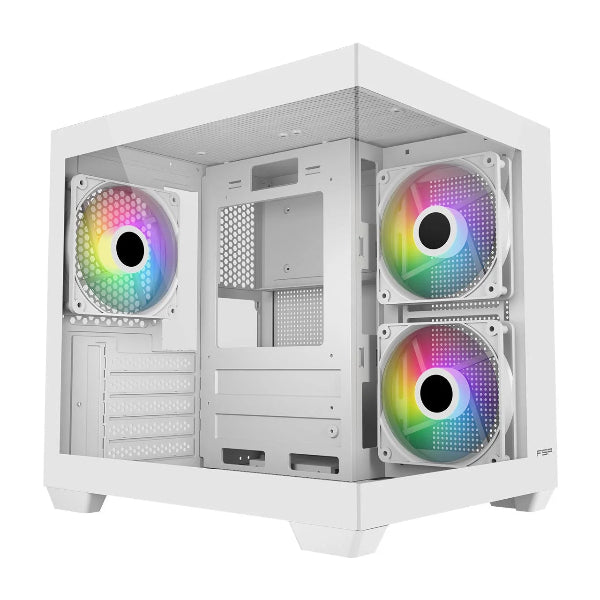

FSP S140 White Small Form Factor Panoramic Case with 3 ARGB Fans

The white finish FSP S140. A 29.5 litre small form factor case with a panoramic corner view, three ARGB fans fitted, and Micro-ATX and Mini-ITX support.

Key specifications

• Form factor: small form factor, panoramic
• Motherboard: Micro-ATX (244 x 185mm) and Mini-ITX
• Maximum GPU length: 325mm
• Maximum CPU cooler height: 155mm
• Radiator: up to 240mm, side 2x 120mm or 240mm, bottom 2x 120mm or 240mm, rear 120mm
• Drive bays: 1x 3.5 inch, 2x 2.5 inch
• Included fans: 2x 120mm reverse blade ARGB at the side, 1x 120mm ARGB at the rear
• Front IO: 1x USB 3.0, 2x USB 2.0
• Dimensions: 333 x 275 x 323mm, 29.5 litres
• Colour: White

Board size warning

FSP recommends smaller Micro-ATX boards such as H610M or B650M sized parts. A full 244 x 185mm Micro-ATX board fits but partly blocks the side fan mounts. Measure your board before ordering.

325mm GPU and 155mm cooler limits rule out the largest current graphics cards and tower coolers.

S140 or S190: identical chassis and clearances. S140 is the mesh version, S190 is the three glass panel version.

In the box: Chassis, 3x 120mm ARGB fans pre-installed, screw kit, manual
