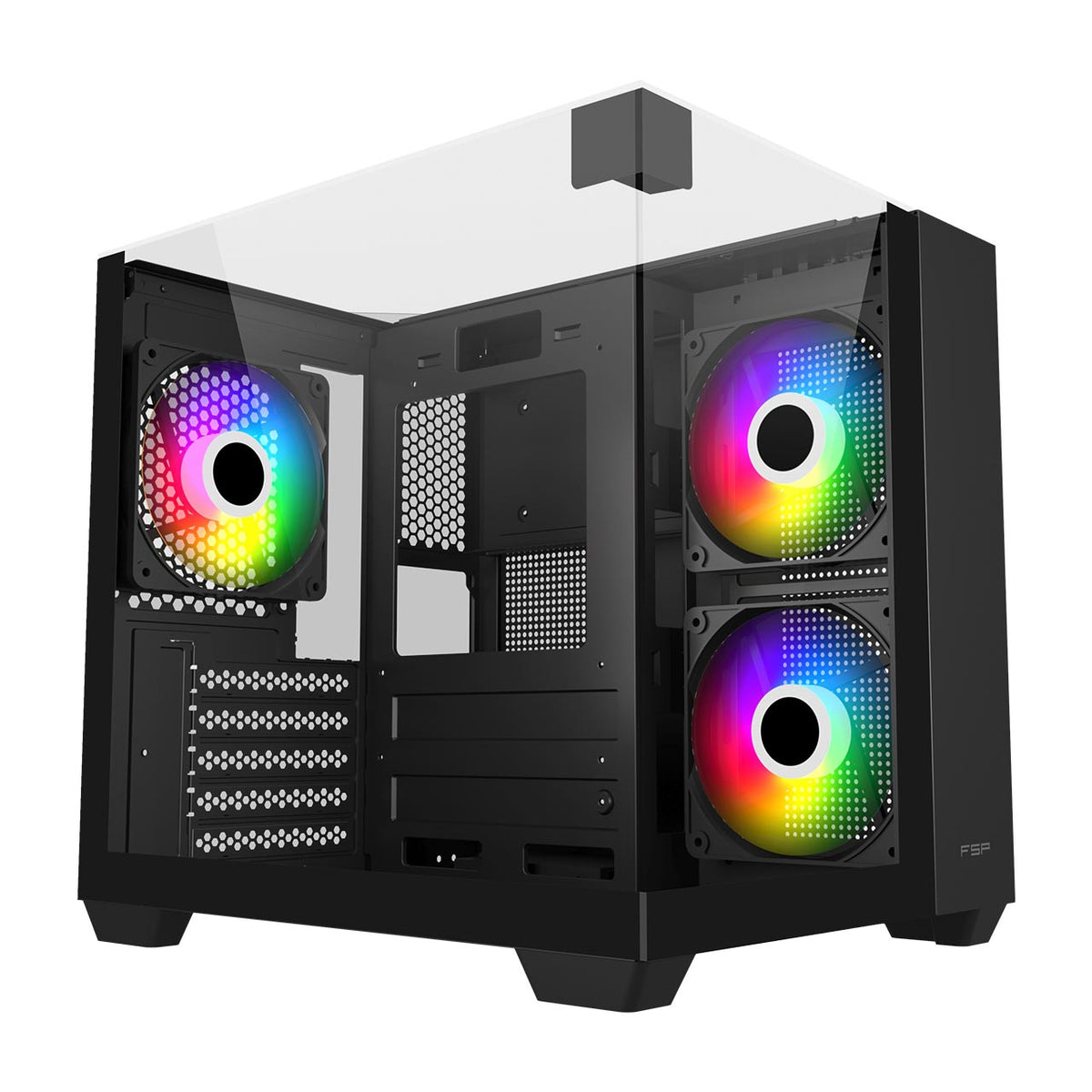

FSP S190 Black Small Form Factor Three Glass Panel Case with 3 ARGB Fans

The glass version of FSP's 29.5 litre small form factor chassis. Three tempered glass panels rather than mesh, so the build is visible from the front, the side and the corner where they meet. Three ARGB fans fitted.

Key specifications

• Form factor: small form factor, three glass panels
• Motherboard: Micro-ATX (244 x 185mm) and Mini-ITX
• Maximum GPU length: 325mm
• Maximum CPU cooler height: 155mm
• Radiator: up to 240mm, side, bottom and 120mm rear
• Drive bays: 1x 3.5 inch, 2x 2.5 inch
• Included fans: 2x 120mm reverse blade ARGB at the side, 1x 120mm ARGB at the rear
• Front IO: 1x USB 3.0, 2x USB 2.0
• Dimensions: 333 x 275 x 323mm, 29.5 litres
• Colour: Black

S190 or S140

Same chassis, same dimensions, same clearances, same fan set. The only difference is the panel material. The S190 uses three glass panels, the S140 uses mesh. Glass looks better and restricts airflow. Mesh breathes and shows less.

The two side intake fans are reverse blade, which matters more on the glass version since you will be looking straight at them.

Board size warning: FSP recommends smaller Micro-ATX boards such as H610M or B650M sized parts. A full width 244 x 185mm board fits but partly blocks the side fan positions.

In the box: Chassis, 3x 120mm ARGB fans pre-installed, screw kit, manual
