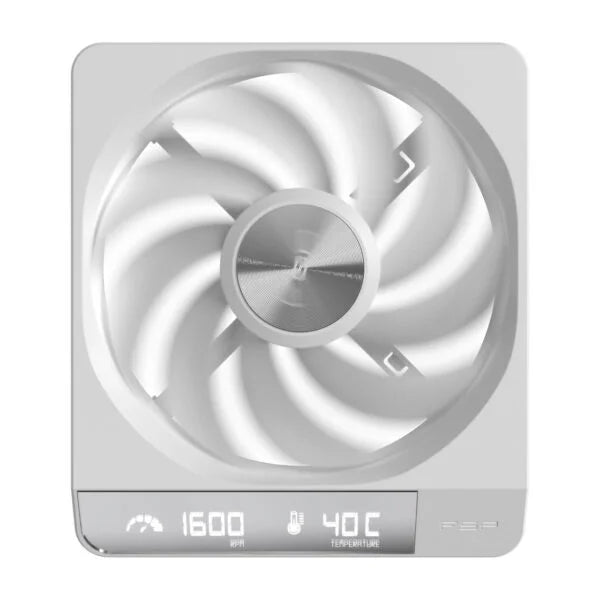

The white version of FSP's ZENFAN. A 120mm PWM fan with a tilted mirror display on the rear hub showing live RPM and temperature, with no software or controller needed.
Key specifications
- Size: 120 x 140 x 28mm frame, standard 120mm mounting holes
- Speed: 800 to 1600 RPM PWM
- Airflow: 57.61 CFM
- Static pressure: 1.48 mmH2O
- Noise: 26 dB(A)
- Bearing: hydro dynamic
- Power: 12V, 0.3A
- Connector: 4 pin PWM
- Display: rear mounted tilted mirror, live RPM and temperature
- Colour: White
Check the clearance
The frame is 140mm tall on 120mm mounting holes. The extra height houses the display. It fits any 120mm mount but needs more room above and below than a conventional fan, so measure before ordering, especially for a rear exhaust position.
This SKU has no RGB
ZENFAN-W is the non RGB white version. ZENFAN-WA is the addressable RGB white one. On FSP parts the trailing A means ARGB, not a colour. Do not assume the -W is the RGB model.
In the box: 1x ZENFAN 120mm PWM fan, mounting screws
