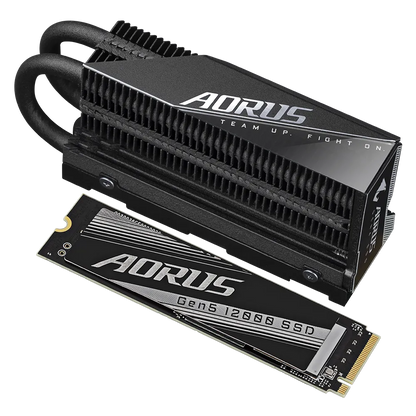

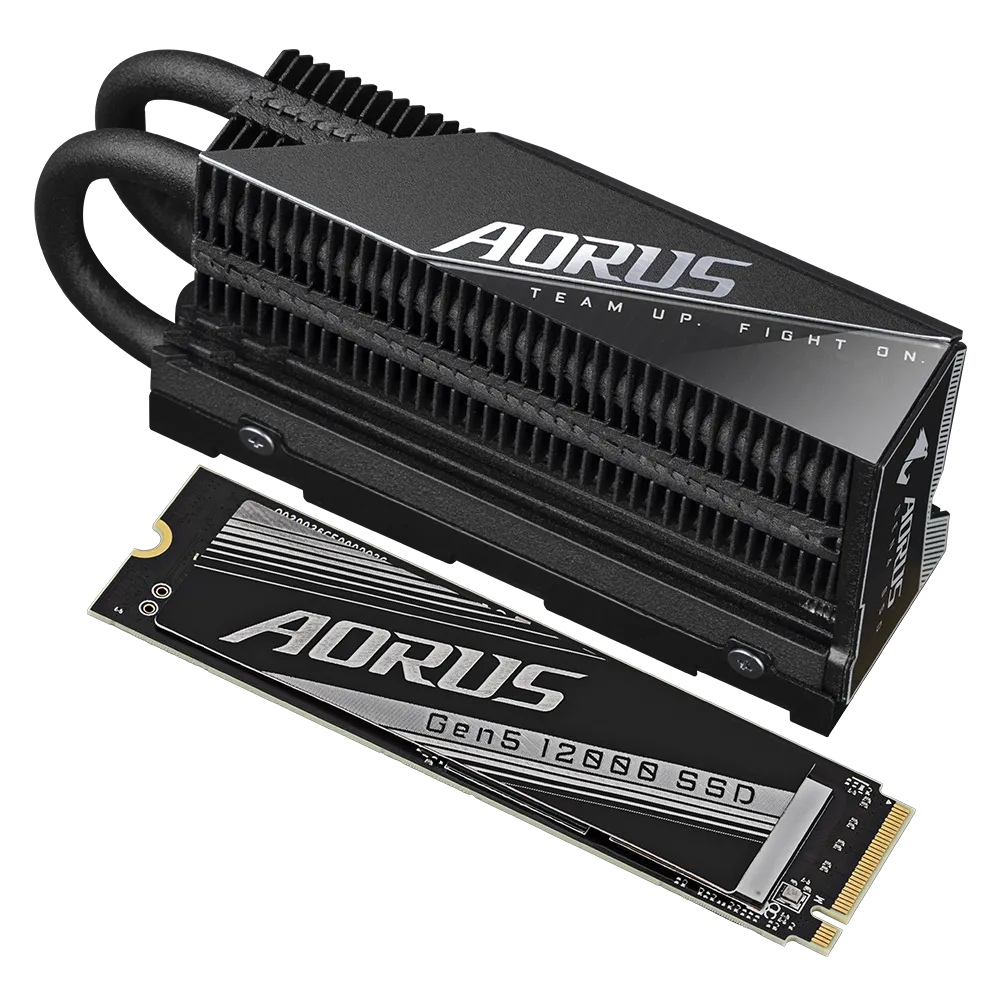

Gigabyte AORUS Gen5 12000 SSD 1TB Internal SSD

• Interface

PCI-Express 5.0x4, NVMe 2.0

• Form Factor

M.2 2280

• Total Capacity

1000GB

• NAND

3D TLC NAND Flash

• External DDR Cache

LPDDR4 2GB

• Sequential Read speed

Up to 11,700 MB/s

• Sequential Write speed

Up to 9,500MB/s

• Dimension

SSD without Heatsink: 80 x 22 x 3.5mm
SSD with Heatsink: 92 x 23.5 x 44.7 mm
Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List

• Mean time between failure (MTBF)

1.6 million hours

• Max. Operating Power

11W

• Power Consumption (Idle, PS3)

<144mW

• Power Consumption(PS4, L1.2)

<85mW

• Temperature (Operating)

0°C to 70°C

• Temperature (Storage)

-40°C to 85°C

• Warranty

1. Limited 5-years or 700TBW.
   2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

• Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
  • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
  • Speeds based on internal testing. Actual performance may vary.
  • 1GB = 1 billion bytes. Actual useable capacity may vary.
  * To keep AORUS Gen5 12000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling.
