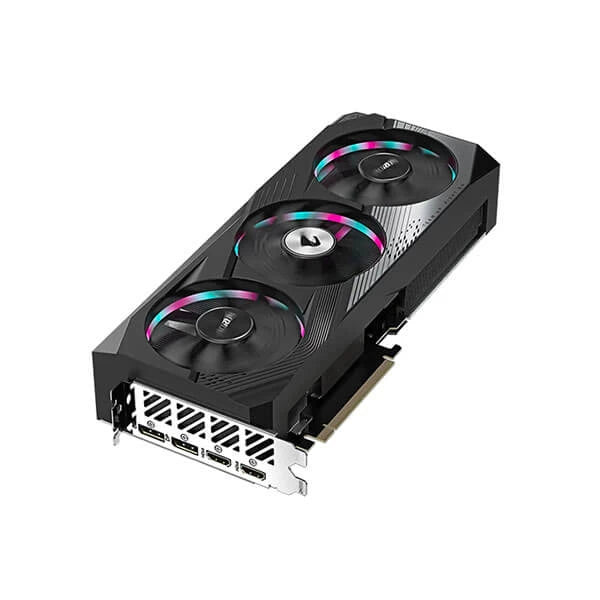

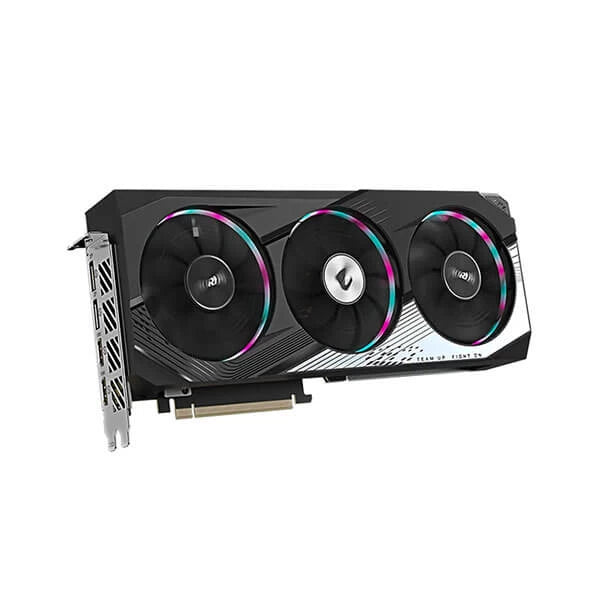

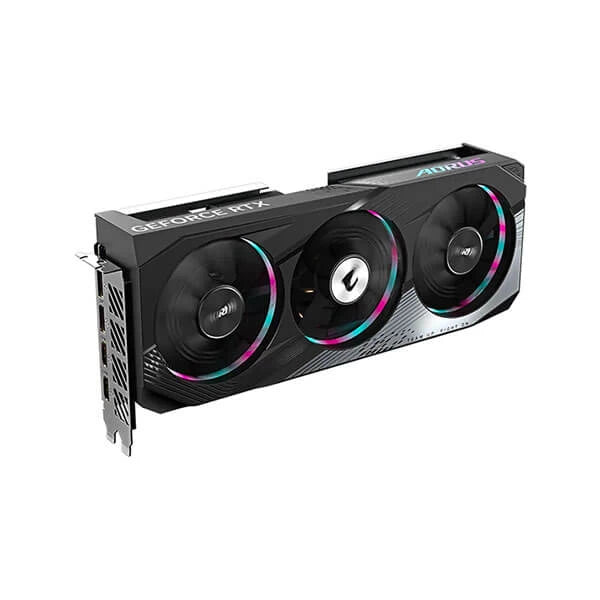

Gigabyte Aorus RTX 4060 Ti Elite 8GB Graphics Card

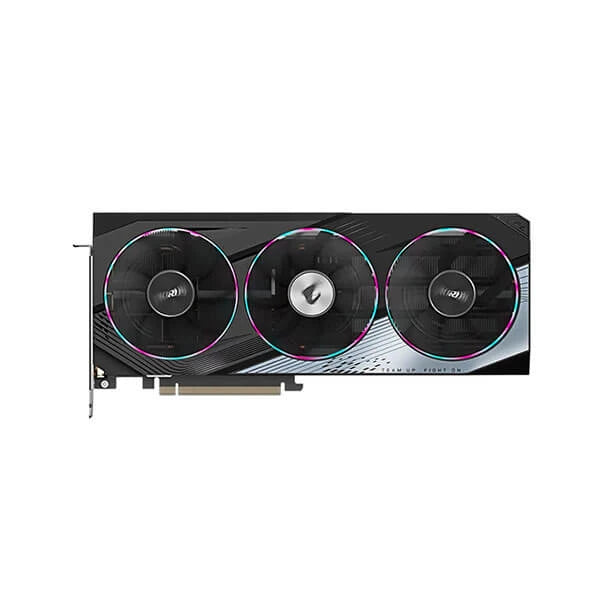

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

COOLING, UPSCALED

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

DIRECTLY. SO FAST.

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

THE OTHER WAY AROUND

ALTERNATE SPINNING

Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

MAKE ROOM FOR THE AIRFLOW

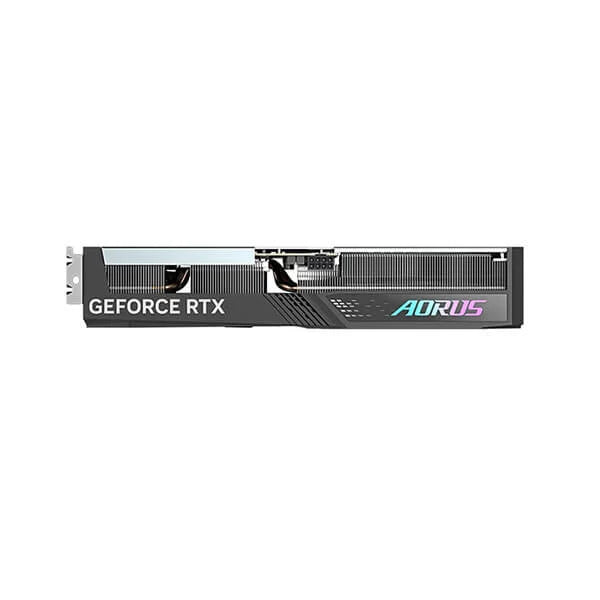

To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.

RGB FUSION

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

• DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

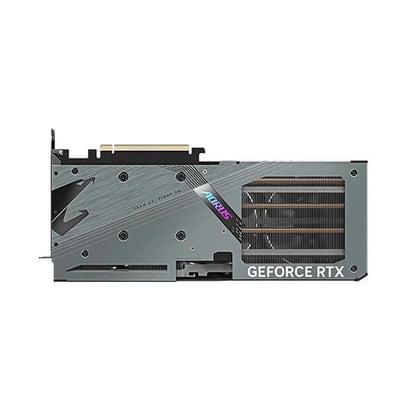

• PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

• POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

• PCB COATING

Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.

Moisture resistant - prevents unwanted conduction paths and board damage.

Corrosion resistant - protects from salt spray, humidity, and corrosion.

• MODELGV-N406TAORUS-E-8GD
• CHIPSETNVIDIA GEFORCE
• GPURTX 4060 Ti
• PCI EXPRESS4.0
• GPU BASE CLOCK2655 MHz
• MEMORY CLOCK18 Gbps
• MEMORY SIZE8 GB
• MEMORY INTERFACE128-BIT
• MEMORY TYPEGDDR6
• DIRECT X SUPPORT12 Ultimate
• OPEN GL4.6

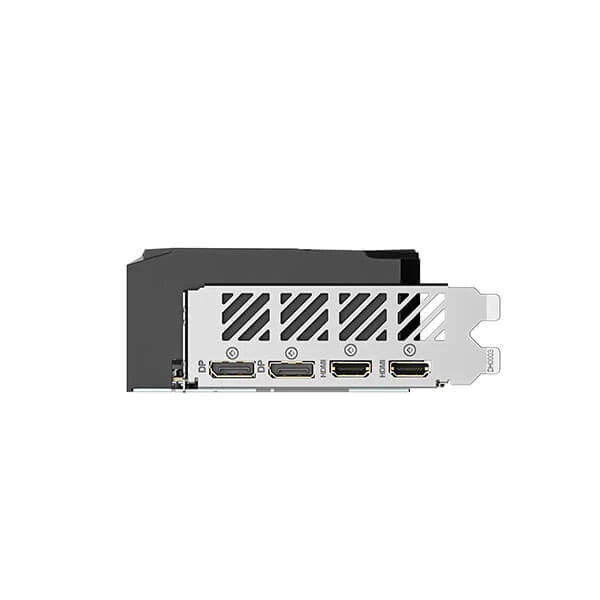

• PORTS
  • DisplayPort 1.4a*2
  • HDMI 2.1a*2
• RESOLUTION7680 x 4320
• COOLERTriple-Fan
• SOFTWAREDriver And Software

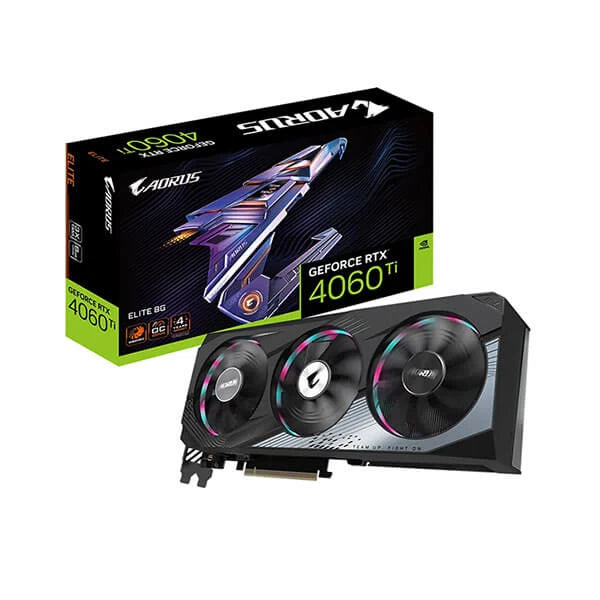

• PACKAGE CONTENTSGraphics Card, User Manual
• GPU CORE (CUDA CORE)4352
• POWER CONNECTORS1 x 8-pin
• WARRANTY3+1 Years
