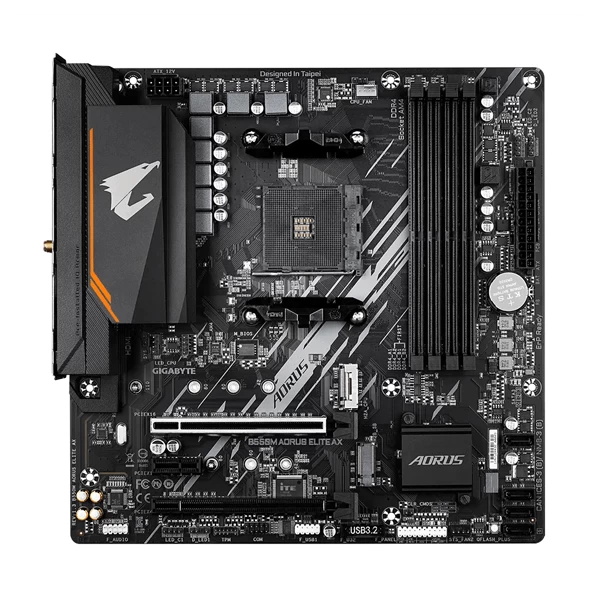

Gigabyte B550M AORUS ELITE AX
Gigabyte B550M AORUS ELITE AX
Out of stock
People are watching right now.
Couldn't load pickup availability
Pick up from Micro Center India
Same-day order before 1:30 PM
Courier Delivery
Delivered to your specified address
Features:
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.3
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED StripsSmart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
WiFi 6E 802.11ax + BT 5.3 Module
Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance and provides smooth video streaming, better gaming experience. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WiFi 6E
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
Specifications:
| Model Name | B550M AORUS ELITE AX |
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
| Audio | Realtek® Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| USB | CPU:
4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port
1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection
Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control |
| BIOS | 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
