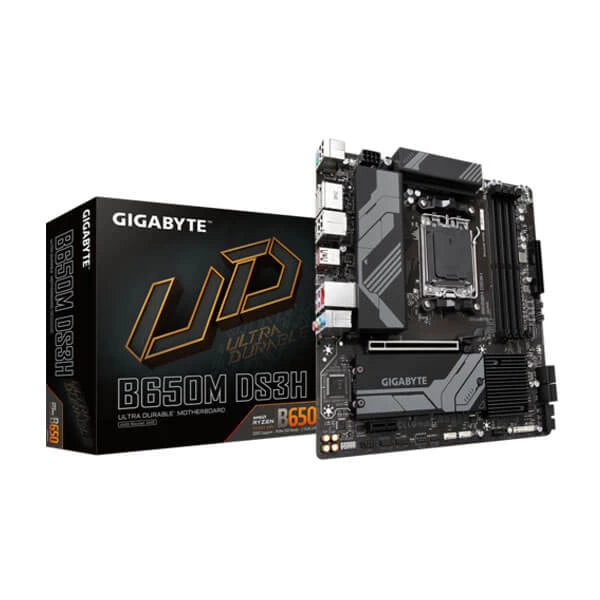

Gigabyte B650M DS3H Motherboard

Gigabyte B650M DS3H Motherboard

Category: AM5 Motherboards , AMD Motherboards , Motherboards

Out of stock

Rs. 13,599.00 INR
Rs. 18,000.00 INR Rs. 13,599.00 INR
Sale Sold out
Shipping calculated at checkout.

People are watching right now.

Pick up from Micro Center India

Same-day order before 1:30 PM

FREE

Courier Delivery

Delivered to your specified address

3–5 DAYS
24/7 CUSTOMER SUPPORT
100% SECURE CHECKOUT
Payment Methods:
Visa BHIM UPI PhonePe Google Pay Mastercard
View full details

Gigabyte B650M DS3H Motherboard

Features:

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：2PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：2DP, HDMI, 2USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification:

CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset AMD B650
Memory
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:
  • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

Support for DisplayPort 1.4 version and HDR.

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support native HDMI 2.1 TMDS compatible ports.
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface CPU:

2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors
USB CPU:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU + USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel

Chipset:

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors` 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper
Back Panel Connectors 4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x DisplayPorts

1 x HDMI port

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x USB 3.2 Gen 1 ports

3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
