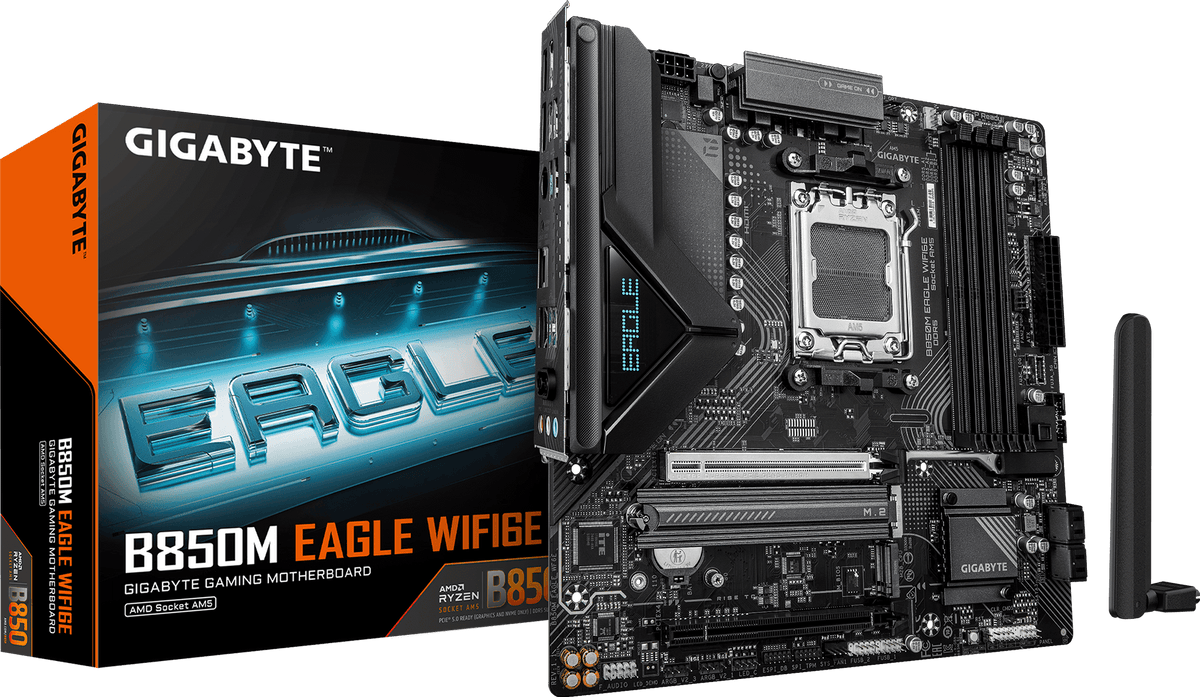

Gigabyte B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

A Micro ATX B850 board for AM5 builds that want PCIe 5.0 on both the graphics slot and the primary M.2 without paying X870 money. Four DDR5 slots, 2.5 Gigabit LAN, Realtek Wi-Fi 6E with Bluetooth 5.3, and a USB-C port on the rear panel. Triple display output from the integrated graphics via one HDMI and two DisplayPort.

Key specifications

• Socket and chipset: AMD Socket AM5, AMD B850
• CPU support: Ryzen 9000, 8000 and 7000 Series
• Form factor: Micro ATX, 24.4 x 24.4cm
• Memory: 4 x DDR5 DIMM, up to 256GB, 4400 to 8200 MT/s overclocked, dual channel, AMD EXPO and Intel XMP
• Primary graphics slot: PCIe 5.0 x16 with Ryzen 9000 and 7000 series
• Second x16 length slot: wired at x4, PCIe 3.0
• M.2 slot 1 (M2A_CPU): PCIe 5.0 x4, supports 2280, 2580, 22110 and 25110
• M.2 slot 2 (M2B_CPU): PCIe 4.0 x4, supports 2280 and 22110
• Storage: 4 x SATA 6Gb/s with RAID 0, 1, 5 and 10 on NVMe and RAID 0, 1 and 10 on SATA
• Rear USB: 1 x USB-C 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0
• Internal headers: 1 x USB-C 3.2 Gen 2, 1 x USB 3.2 Gen 1, 2 x USB 2.0
• Display: 1 x HDMI 2.1 up to 4096x2160 at 60Hz, 2 x DisplayPort 1.4 up to 3840x2160 at 144Hz
• Network: Realtek 2.5GbE LAN, Realtek RTL8852CE Wi-Fi 6E across 2.4, 5 and 6GHz with 160MHz channels, Bluetooth 5.3
• Audio: Realtek codec, up to 7.1 channel HD audio, 3 rear jacks
• Power: 1 x 24 pin ATX, 1 x 8 pin ATX 12V
• Warranty: 3 years in India

Before you buy

Only one of the two M.2 slots is PCIe 5.0. M2A_CPU runs Gen5 x4. M2B_CPU is Gen4 x4. If you are fitting two Gen5 drives, only the first one will run at Gen5 speed.

The second full length slot is PCIe 3.0 x4, not x16. It is physically a x16 socket but electrically four lanes at Gen3. It is not usable as a second graphics slot and it will bottleneck a Gen4 expansion card.

This is not simply a smaller B850 EAGLE. The full ATX B850 EAGLE WIFI6E has three M.2 slots but only 1 Gigabit LAN. This Micro ATX board has two M.2 slots but 2.5 Gigabit LAN. The storage count and the network speed both differ, so check which one you actually want.

DDR5-8200 is an overclock ceiling, not a default. The board boots at JEDEC speed until you enable EXPO or XMP in BIOS.

In the box

Motherboard, SATA cables, Wi-Fi antenna, user manual, driver media.
