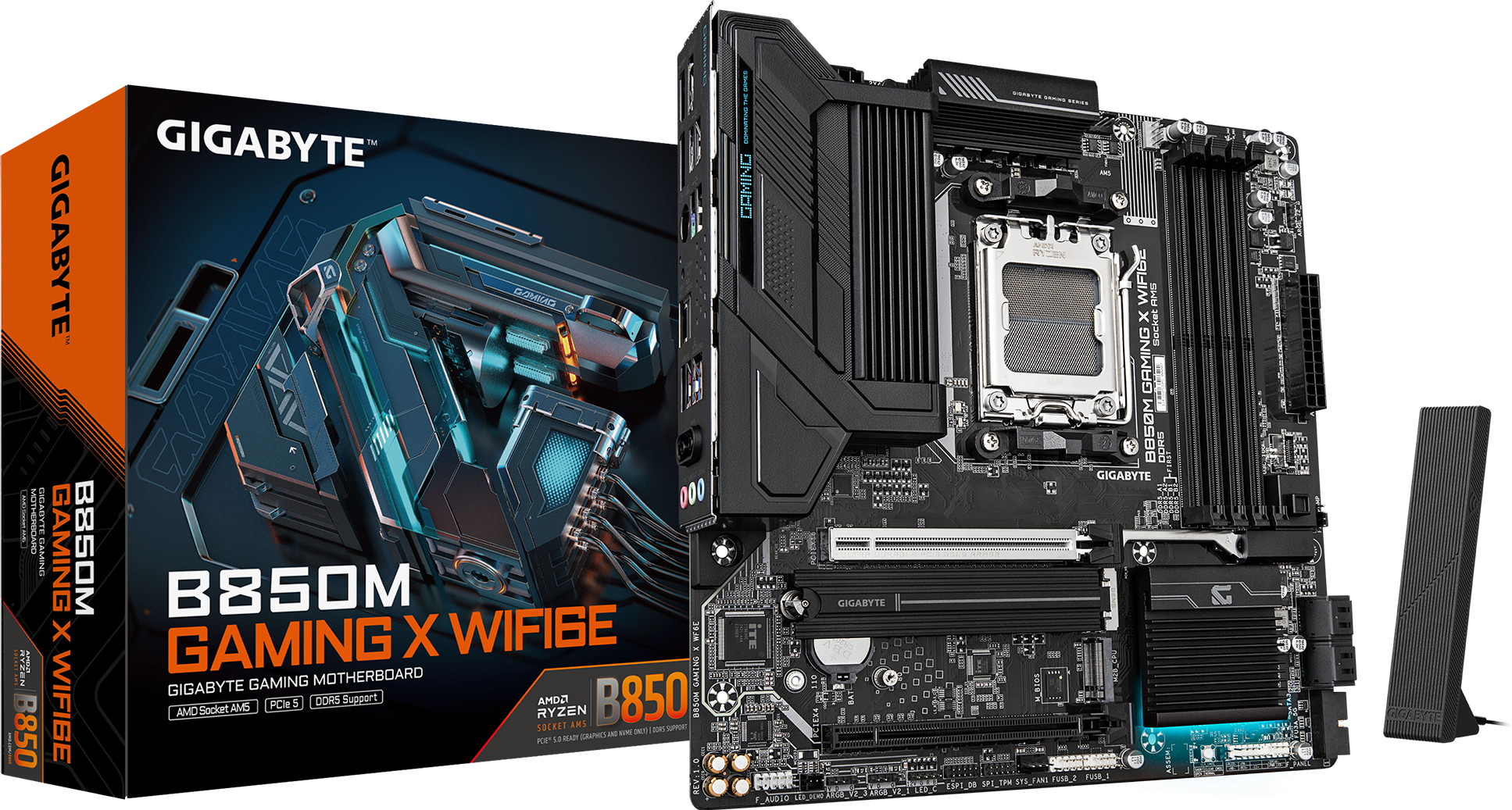

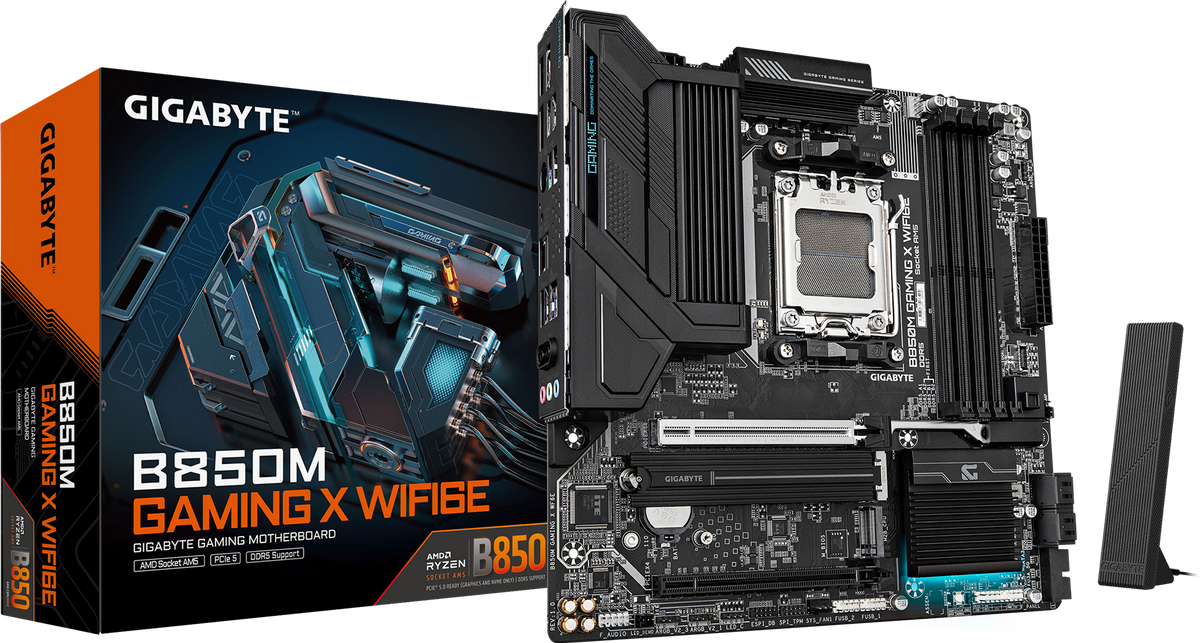

Gigabyte B850M Gaming X DDR5 WiFi6E AMD AM5 Micro ATX Motherboard

A Micro ATX B850 board that does not compromise on the two things that usually get cut at this size: it has a full PCIe 5.0 x16 graphics slot and a PCIe 5.0 x4 M.2 slot, both wired straight to the CPU. The VRM is a 10 plus 2 plus 2 digital design with 60A DrMOS stages, which is over built for the segment and means a Ryzen 9 will not throttle on power delivery.

Memory

Four DDR5 slots, dual channel, up to 256GB with 64GB per DIMM, rated to DDR5-8200 overclocked. AMD EXPO and Intel XMP profiles are both supported, so a one click memory profile is all most builds need.

Storage

Two M.2 slots. The first runs PCIe 5.0 x4 off the CPU, the second PCIe 4.0 x4. Both use EZ-Latch tool free retention, so no tiny screws. Four SATA 6Gb/s ports alongside.

Display and networking

HDMI 2.1 plus two DisplayPort 1.4 outputs, all three usable at once with an APU or iGPU. Realtek 2.5 Gigabit LAN, Wi-Fi 6E on the 6GHz band via Realtek RTL8852CE, and Bluetooth 5.3.

Q-Flash Plus

Flash a newer BIOS with no CPU, no memory and no graphics card installed. If you buy a board that predates your Ryzen chip, this is what saves the build.

Specifications

• Chipset: AMD B850. Socket AM5
• CPU support: Ryzen 9000, 8000 and 7000 series
• Form factor: Micro ATX, 24.4 x 24.4cm
• Memory: 4 x DDR5 DIMM, dual channel, up to 256GB, DDR5-8200 OC, AMD EXPO and Intel XMP
• PCIe: 1 x PCIe 5.0 x16 from CPU, 1 x PCIe 3.0 x16 slot running x4 from chipset
• M.2: 1 x PCIe 5.0 x4 (25110 / 22110 / 2580 / 2280), 1 x PCIe 4.0 x4 (22110 / 2280)
• SATA: 4 x SATA 6Gb/s
• VRM: 10 plus 2 plus 2 Twin Digital VRM, 60A DrMOS, 6 layer PCB with 2oz copper
• Rear IO: 1 x HDMI 2.1, 2 x DisplayPort 1.4, 1 x PS/2, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x RJ-45, 2 x Wi-Fi antenna connectors, 3 x audio jacks, Q-Flash Plus button
• Internal headers: 1 x USB 3.2 Gen 2 Type-C front header, 1 x USB 3.2 Gen 1, 2 x USB 2.0, 24 pin ATX, 8 pin ATX 12V, 4 x fan, 5 x RGB including 3 addressable Gen2, 2 x M.2, TPM, clear CMOS and reset jumpers
• LAN: Realtek 2.5 GbE
• Wireless: Realtek RTL8852CE Wi-Fi 6E across 2.4, 5 and 6GHz, plus Bluetooth 5.3
• Audio: Realtek codec, 8 channel HD audio supporting 2, 4, 5.1 and 7.1

In the box: Motherboard, Wi-Fi antenna, SATA cables, M.2 screws, user manual. Contents vary by region, check the retail box.
