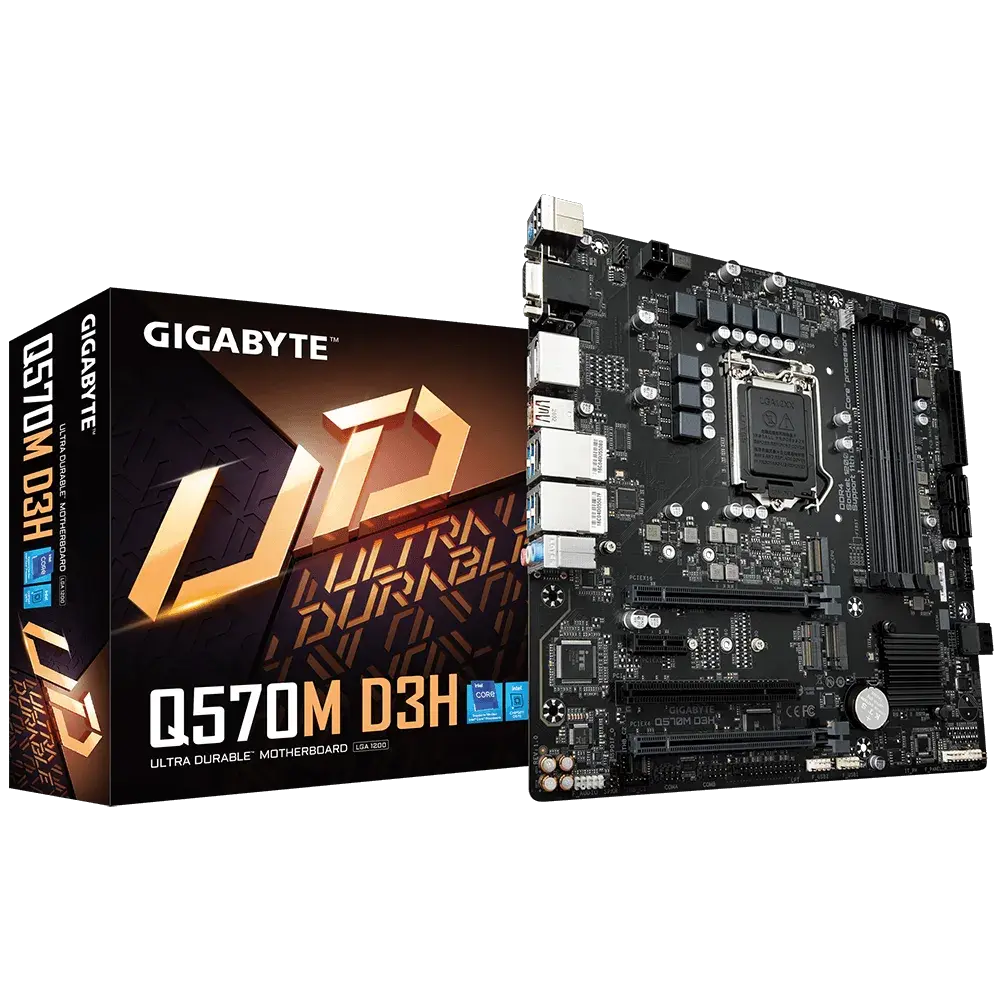

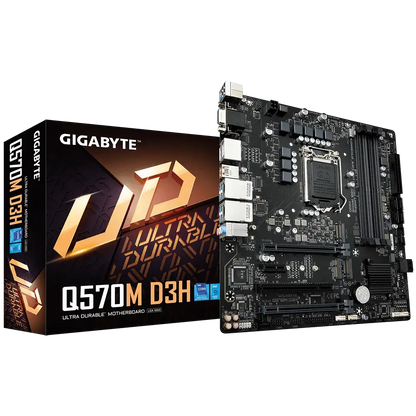

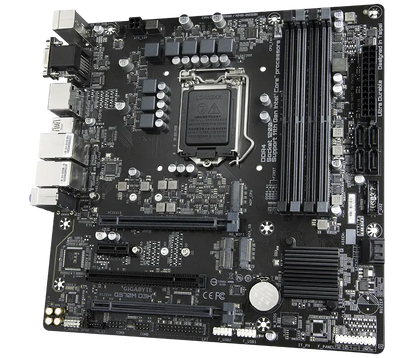

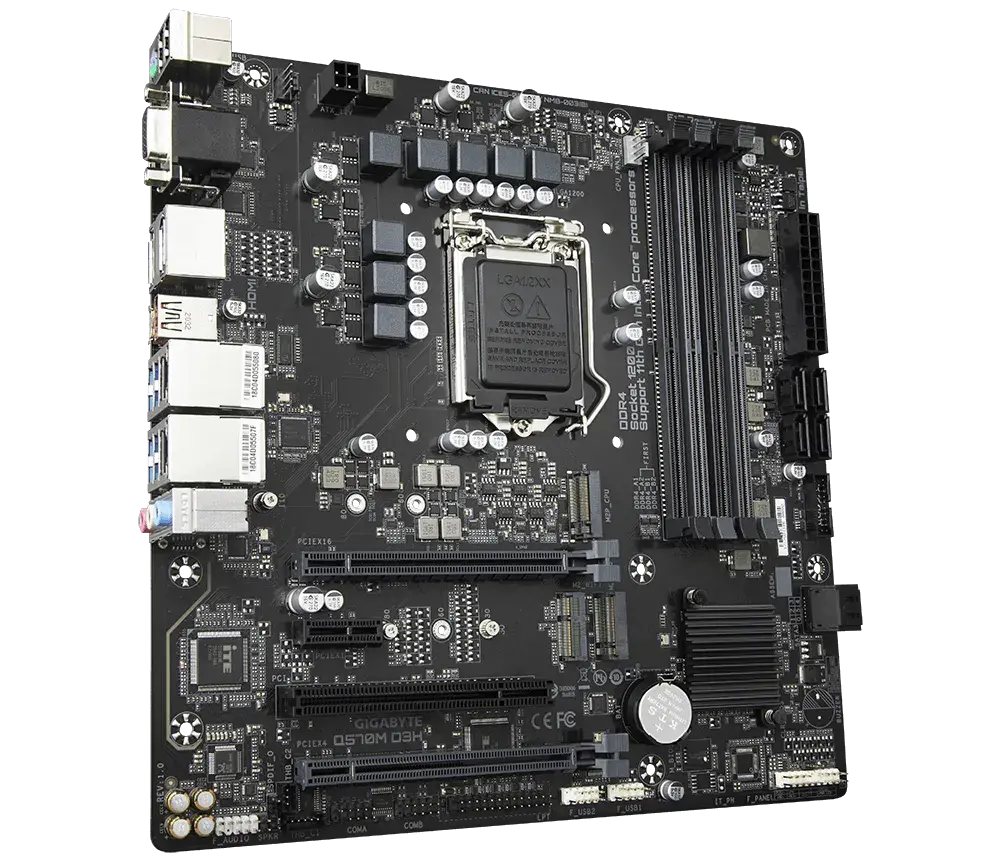

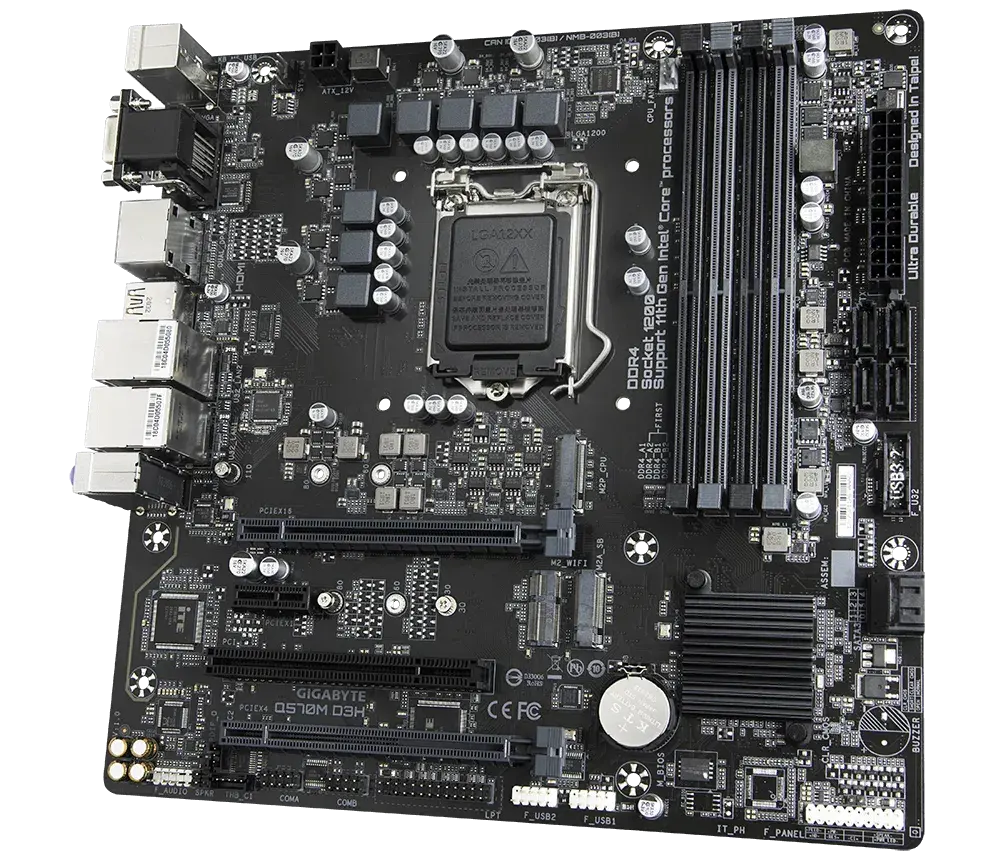

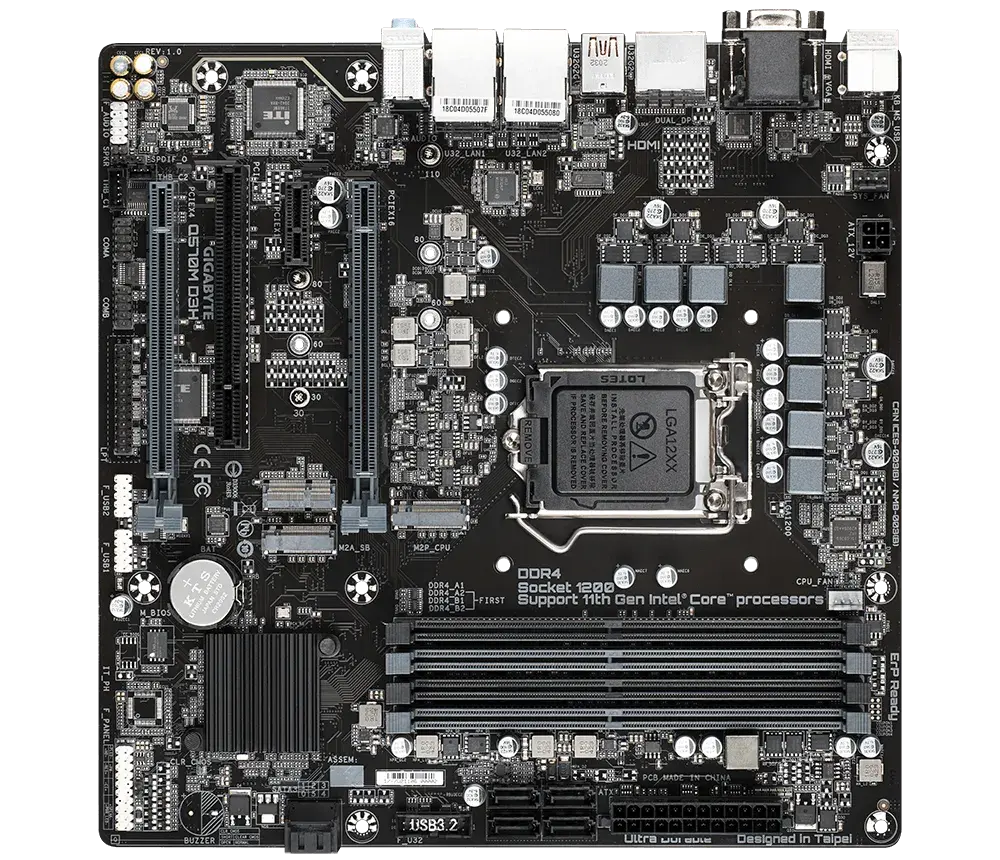

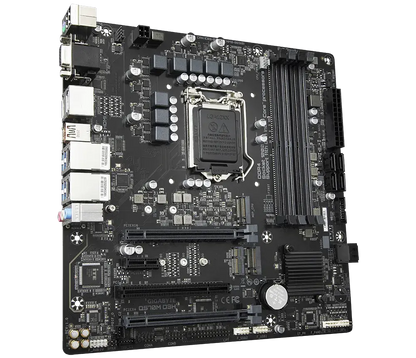

Gigabyte Q570M D3H Motherboard

1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors** Limited to processors with 4 MB Intel^® Smart Cache, Intel^® Celeron^® G5xx5 family.
3. L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

1. Intel^® Q570 Express Chipset

1. 11th Generation Intel^® Core™ i9/i7/i5 processors:Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel^® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel^® Core™ i5/i3 /Pentium^®/Celeron^® processors:Support for DDR4 2666/2400/2133 MHz memory modules
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

1. 1 x D-Sub^(Note) port, supporting a maximum resolution of 1920x1200@60 Hz(Note) Supported by 11th Generation processors only.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 1.4 version and HDCP 2.3.
3. 2 x DisplayPorts, supporting a maximum resolution of 5120x2160@60 Hz* Support for DisplayPort 1.4 version and HDCP 2.3

Support for up to 3 displays at the same time

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
4. Support for S/PDIF Out

1. 2 x Intel^® GbE LAN chips (1 Gbps/100 Mbps)

1. Infineon chip, supporting TPM 2.0

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(The PCIEX16 slot conforms to PCI Express 4.0 standard.)^(Note)

   (Note) Supported by 11th Generation processors only.

2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot
5. 1 x M.2 Socket 1 connector for an Intel^® CNVi or PCIe wireless module (M2_WIFI)

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)^(Note)(Note) Supported by 11th Generation processors only.

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready

* System acceleration with Intel^® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel^® processor installed.

1. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4. 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 6 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x speaker header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 2 x Thunderbolt™ add-in card connectors
14. 2 x serial port headers
15. 1 x parallel port header
16. 1 x Clear CMOS jumper

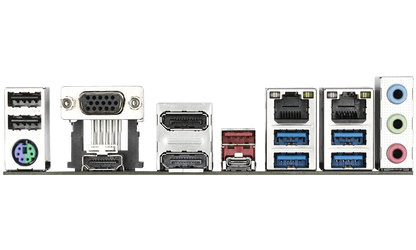

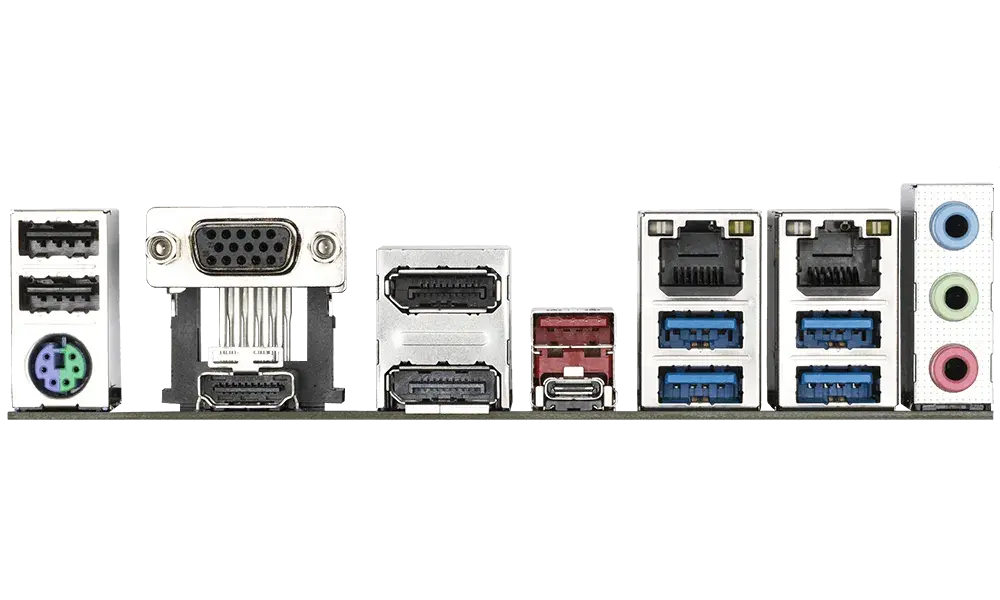

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x DisplayPorts
5. 1 x USB 3.2 Gen 2 Type-A port (red)
6. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
7. 4 x USB 3.2 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 2 x RJ-45 ports
10. 3 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for Q-Flash
2. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 24.4cm x 24.4cm
