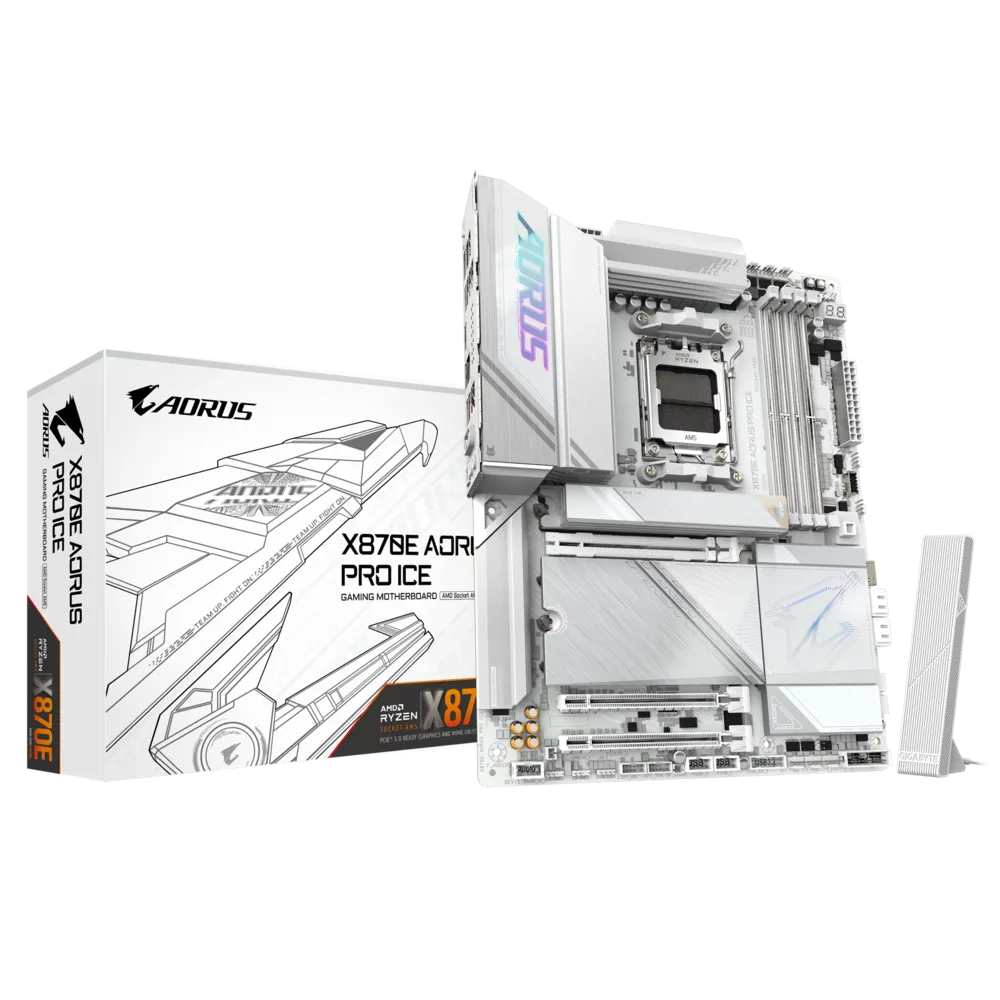

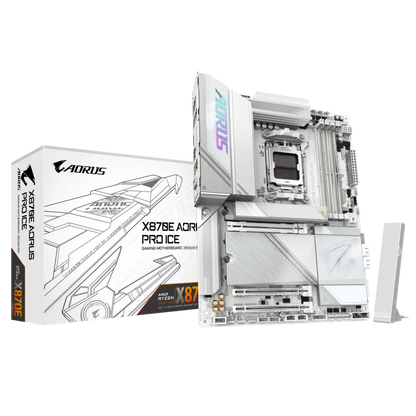

Gigabyte X870E Aorus Pro ICE Motherboard

CPU Support

• Socket: AMD AM5
• Compatible CPUs:
  • AMD Ryzen™ 9000 Series
  • AMD Ryzen™ 8000 Series
  • AMD Ryzen™ 7000 Series
    (Refer to GIGABYTE’s CPU support list for full compatibility)

Chipset

• AMD X870E

Memory

• DDR5 memory support up to 8200 MT/s (OC)
• Supported speeds:
  8200(OC), 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s
• 4x DDR5 DIMM sockets (Max 256 GB | 64 GB per DIMM)
• Dual Channel Memory Architecture
• Supports:
  • Non-ECC Un-buffered DIMMs
  • AMD EXPO™ & Intel XMP profiles

Graphics (Integrated)

Ports (Depends on CPU with Radeon Graphics)

• 2 x USB4® Type-C (3840x2160 @ 240Hz, DisplayPort 1.4 + HDR)
• 1 x HDMI 2.1 (4096x2160 @ 60Hz, HDCP 2.3, HDR)
• 1 x Front HDMI 1.4 (1920x1080 @ 30Hz)

Audio

• Realtek® ALC1220 CODEC
• DSD audio support (back panel line-out)
• 7.1-channel HD Audio
• S/PDIF Out support

Networking

Wired:

• Realtek® 2.5GbE LAN

Wireless:

• Qualcomm® Wi-Fi 7 QCNCM865
  • Supports: 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz)
  • Bluetooth 5.3
  • Wi-Fi 7 (11be 320 MHz)
    (Requires Windows 11 SV3; no driver for Win10)

Expansion Slots

From CPU

• 1x PCIe x16 (PCIe 5.0/4.0)
  • Ryzen 9000/7000: PCIe 5.0 x16
  • Ryzen 8000 Phoenix 1: PCIe 4.0 x8
  • Ryzen 8000 Phoenix 2: PCIe 4.0 x4
    (Note: M2B/M2C usage limits this slot to x8)

From Chipset

• 1x PCIe x16 (PCIe 4.0 x4)
• 1x PCIe x16 (PCIe 3.0 x4)

Storage

• M.2 Slots:
  • M2A_CPU (PCIe 5.0 x4) – 25110/22110/2580/2280
    (Ryzen 9000/7000)
  • M2B_CPU & M2C_CPU (PCIe 5.0 x4) – 22110/2280
    (Disabled on Ryzen 8000 Phoenix)
  • M2D_SB (PCIe 4.0 x4) – 22110/2280
    (Via chipset)
• SATA:
  • 4x SATA 6Gb/s ports
• RAID Support:
  • NVMe: RAID 0/1/10 (RAID 5 for Ryzen 9000 only)
  • SATA: RAID 0/1/10

USB Ports

Rear I/O

• 2x USB4® Type-C (DP Alt Mode)
• 1x USB 3.2 Gen 2 Type-A (Red)
• 2x USB 3.2 Gen 2 Type-A (Red)
• 4x USB 3.2 Gen 1 Type-A
• 2x USB 2.0
• 1x HDMI port
• 1x RJ-45 LAN
• 2x Wi-Fi antenna connectors
• 1x Optical S/PDIF Out
• 2x Audio jacks

Internal Headers

• 1x USB 3.2 Gen 2x2 Type-C header
• 2x USB 3.2 Gen 1 headers (4 ports)
• 2x USB 2.0 headers (4 ports)

Internal I/O

• 1x 24-pin ATX Power
• 2x 8-pin ATX 12V Power
• 1x CPU fan + 1x CPU/Water pump header
• 4x System fan headers
• 2x System fan/water pump headers
• 3x ARGB Gen2 headers
• 1x RGB LED header
• 4x SATA ports
• 4x M.2 sockets
• 1x Front panel + audio headers
• 1x TPM header
• 1x Noise detection header
• 2x Temp sensor headers
• Power & Reset buttons
• Clear CMOS + Reset jumpers
• HDMI port (internal)

Back Panel I/O

• 1x Q-Flash Plus button
• Full suite of USB, HDMI, DisplayPort, LAN, Audio, Wi-Fi antenna ports (see above)

Hardware Monitoring

• Voltage, temp, fan speed, pump flow rate detection
• Noise detection
• Fan failure warning
• Smart fan/pump speed control

BIOS

• AMI UEFI BIOS (256 Mbit flash)
• ACPI 5.0, DMI 2.7, SMBIOS 2.7
• Q-Flash and Q-Flash Plus
• Smart Backup

Software Bundle

• GIGABYTE Control Center (GCC)
• Norton® Internet Security (OEM)
• LAN management software

OS Support

• Windows 11 64-bit only (No Windows 10 support for Wi-Fi 7 drivers)

Form Factor

• ATX (30.5cm x 24.4cm)
