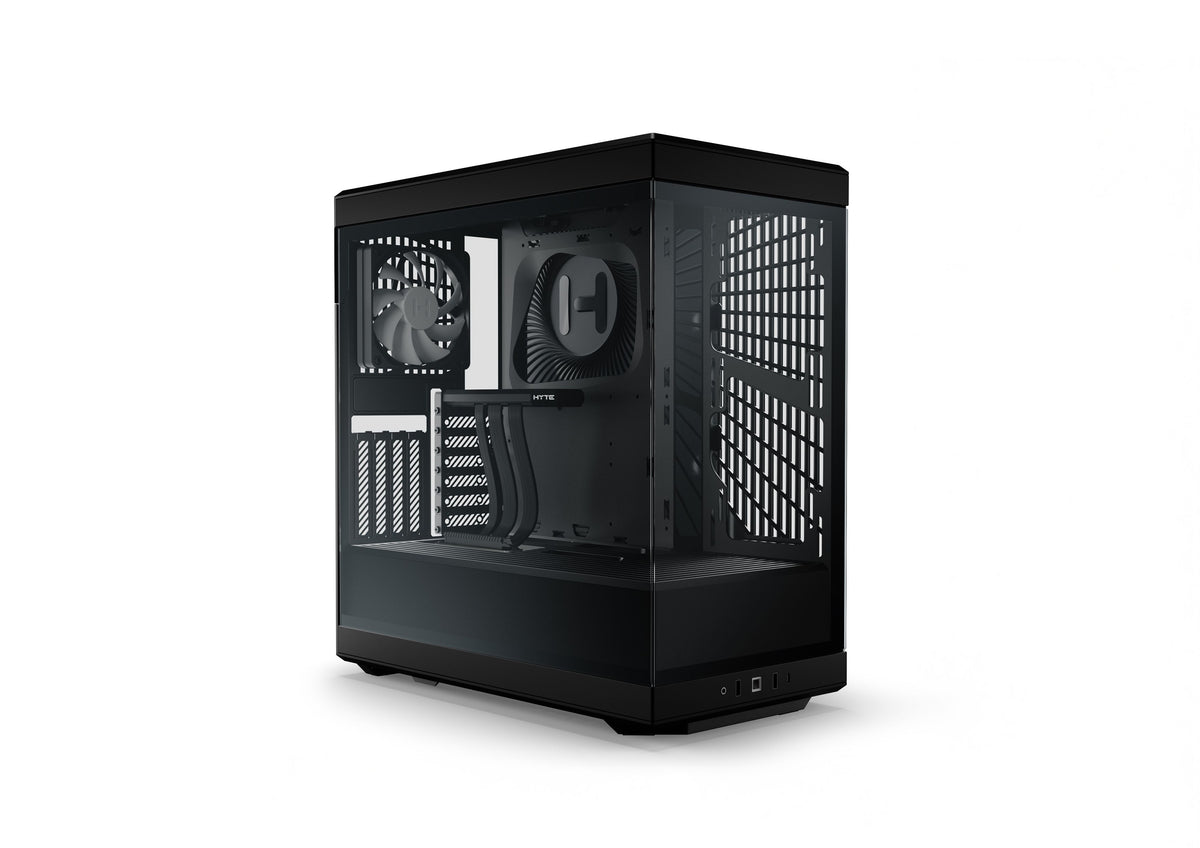

HYTE Y40 Pitch Black Panoramic ATX Mid Tower Cabinet

A 50 litre dual chamber case with two piece panoramic tempered glass that wraps the corner with no pillar in the way. The graphics card mounts vertically as standard, and HYTE includes a colour matched PCIe 4.0 riser cable in the box rather than selling it separately.

Vertical GPU only

There is no horizontal graphics card mounting position. The card sits vertically behind the glass, which is the entire point of the design. Up to 422mm long, 94mm tall, four full slots.

Specifications

• Model: HYTE Y40 Pitch Black. Part number CS-HYTE-Y40-B
• Type: ATX mid tower, dual chamber panoramic, 50 litres
• Motherboard support: ATX, Micro ATX, Mini ITX
• Dimensions: 439 x 240 x 472mm
• Graphics card: vertical mount only, up to 422mm length and 94mm height, 4 full slots
• CPU cooler: up to 183mm. Power supply: ATX up to 224mm
• Included fans: 2 x 120mm at 1300rpm, one under the PSU shroud and one rear
• Radiator support: Side 120, 140, 240 or 280mm up to 120mm thick. Top 120, 240 or 360mm. Rear 120mm
• Fan mounts: Side 2 x 120 or 140mm. Top 3 x 120mm. Rear 1 x 120mm. Bottom 1 x 120 or 140mm
• Drive bays: 1 x 3.5 inch HDD or 2 x 2.5 inch SSD
• Expansion slots: 4 full height plus 6 half height
• Front IO: 2 x USB 3.0 Type-A, 1 x USB 3.2 Type-C, combo audio and microphone jack, power button
• Dust filters: Top, side and bottom
• Included: PCIe 4.0 x16 colour matched riser cable, screws, manual
• No RGB lighting

Warranty note for Indian buyers: HYTE has no published authorised distributor in India, and its manufacturer warranty applies only to products purchased and operated in the USA. Any warranty on this unit is offered by us, not HYTE.
