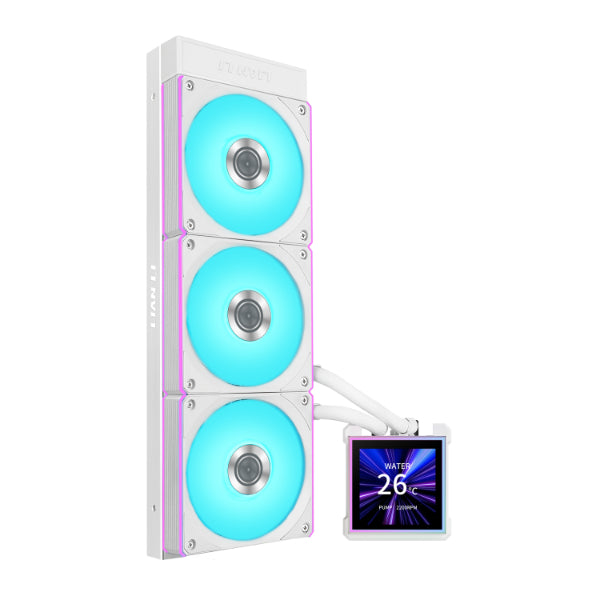

Lian Li HydroShift LCD-S 360S AIO Liquid CPU Cooler – 3.4" LCD Display & Side-Exit Tubing

Upgrade your gaming or high-performance PC with the Lian Li HydroShift LCD-S 360S AIO Liquid CPU Cooler, a premium 360mm all-in-one liquid cooling solution designed to combine efficient CPU cooling with a clean, modern build aesthetic.

The HydroShift LCD-S stands out with its 3.4-inch square IPS LCD display, unusually slim 24mm radiator, side-exit corrugated tubing, and three UNI FAN CL120 ARGB fans. Instead of traditional tubing that arches across the centre of the motherboard area, the side-exit design allows the tubes to route neatly along the edge of the PC case for a cleaner installation.

With support for Intel LGA1700/LGA1851 and AMD AM4/AM5, this AIO cooler is designed for modern gaming PCs, enthusiast builds, workstations, and high-performance desktop systems.

Why Choose the Lian Li HydroShift LCD-S 360S?

The HydroShift LCD-S 360S is designed for users who want more than conventional CPU cooling. It combines a large 360mm radiator with a high-quality LCD display and a streamlined tubing design that helps create a cleaner-looking PC interior.

Key Benefits

• 360mm All-in-One Liquid CPU Cooler
• 3.4-inch Square IPS LCD Display
• 480 × 480 Resolution
• 500 Nits Brightness
• 60Hz Refresh Rate
• 24-bit sRGB Color
• Hot-Swappable Magnetic LCD Screen
• Pogo Pin Display Connection
• Slim 24mm Thick Radiator
• Side-Exit Corrugated Tubing
• Server-Grade Tubing
• 3 × UNI FAN CL120 ARGB Fans
• Fan Speed up to 2100 RPM
• Pump Speed up to 3200 RPM
• Pump Noise Under 28 dBA
• Fan Noise up to 30 dBA
• L-Connect 3 Software Support
• Wireless Remote Mode
• Intel LGA1700 & LGA1851 Support
• AMD AM4 & AM5 Support
• 6-Year Warranty

Performance & Cooling

360mm AIO Liquid Cooling

The HydroShift LCD-S 360S uses a 360mm aluminium radiator to provide a large cooling surface for efficient heat dissipation.

The radiator measures 400 × 122 × 24mm, with the 24mm thickness making this cooler particularly interesting for PC builders who have limited clearance around the motherboard heatsinks.

The slim radiator can be especially useful in top-mounted configurations where a conventional 27–30mm radiator may create clearance issues.

Cooling Components

• 360mm radiator
• Aluminium radiator construction
• 24mm radiator thickness
• Single wave fin design
• High-performance water block
• Variable-speed pump
• Three 120mm ARGB fans
• Corrugated server-grade tubing

Slim 24mm Radiator Design

Built for Better Clearance

One of the major design advantages of the HydroShift LCD-S is its 24mm-thick radiator.

Many traditional AIO radiators are around 27–30mm thick before considering the additional thickness of the fans. The slimmer radiator can provide additional clearance around motherboard heatsinks and other components.

This makes it a practical option for high-end systems where top radiator clearance can be difficult.

3.4-Inch Square LCD Display

Personalize Your PC Build

The HydroShift LCD-S 360S features a 3.4-inch square IPS LCD panel designed to add a premium visual element to your PC.

The display provides a 480 × 480 resolution, 500-nit brightness, 60Hz refresh rate, and 24-bit sRGB color.

The LCD can be used to enhance the appearance of your build while providing a dedicated display area within the CPU cooling assembly.

LCD Specifications

• Display Size: 3.4 inches
• Panel Type: IPS
• Resolution: 480 × 480
• Brightness: 500 nits
• Refresh Rate: 60Hz
• Color: 24-bit sRGB
• Mounting: Magnetic
• Connection: Pogo Pin
• Hot-Swappable: Yes

Magnetic & Hot-Swappable LCD

Easy Screen Removal

The LCD screen is magnetically mounted and uses a pogo pin connection.

This allows the display to be removed from the cooling block without requiring the entire CPU cooler to be dismantled.

The hot-swappable design provides additional convenience when configuring or maintaining your PC.

Side-Exit Tubing Design

Cleaner Cable & Tube Routing

The side-exit tubing is one of the defining characteristics of the HydroShift series.

Instead of having the AIO tubes leave the CPU block vertically and form a large arc across the motherboard area, the HydroShift design allows the tubing to exit from the side of the block.

The tubes can then be routed closer to the edge of the PC case, helping create a cleaner and more organised internal appearance.

Tubing Features

• Side-exit routing
• Corrugated design
• Server-grade tubing
• 450mm and 470mm tubing lengths
• Designed for cleaner routing along the case edge

UNI FAN CL120 ARGB Fans

Three 120mm ARGB Fans Included

The HydroShift LCD-S 360S includes three UNI FAN CL120 ARGB fans.

The fans can be daisy chained, helping simplify the overall installation and cable management by allowing multiple fans to share a streamlined connection path.

Fan Specifications

• Fan Model: UNI FAN CL120 ARGB
• Quantity: 3
• Fan Dimensions: 124 × 120 × 28mm
• Fan Speed: 0–2100 RPM
• Maximum Noise: 30 dBA
• ARGB Lighting: Yes
• Daisy Chain Support: Yes

The 0–2100 RPM operating range allows the fans to balance cooling performance and acoustics depending on system requirements.

Pump & Water Block

Efficient Liquid Circulation

The HydroShift LCD-S 360S features a variable-speed pump designed to circulate coolant between the CPU block and radiator.

The pump operates between 1600 and 3200 RPM ±10% and has a specified noise level of under 28 dBA.

Pump Specifications

• Pump Speed: 1600–3200 RPM ±10%
• Pump Noise: Under 28 dBA
• Water Block Dimensions: 91 × 99 × 62mm

Software & Control

L-Connect 3 Support

The HydroShift LCD-S 360S can be controlled using L-Connect 3 software through USB Advanced Mode.

This provides control and configuration options for supported cooler functions and lighting.

A wireless remote mode is also available, providing an alternative control method.

Control Options

• Wireless Remote Mode
• USB Advanced Mode
• L-Connect 3 Software
• ARGB Lighting Control

Compatibility

Intel & AMD Socket Support

The cooler is designed for a wide range of modern Intel and AMD desktop processors.

Supported CPU Sockets

Intel:

• LGA1700
• LGA1851

AMD:

• AM4
• AM5

Always verify motherboard and case clearance before installation, particularly when using a top-mounted 360mm radiator.

Design & Build Quality

Premium PC Aesthetic

The HydroShift LCD-S 360S is designed for users who want their cooling system to become part of the overall PC aesthetic.

The square LCD display, side-exit tubing, slim radiator, and ARGB fans create a visually distinctive cooling solution.

The side-routing design can help reduce the visual clutter normally associated with traditional AIO tubing.

Consumer Value

The Lian Li HydroShift LCD-S 360S combines several features that are uncommon in a single AIO cooler.

Its 360mm radiator provides a large cooling platform, while the 24mm slim radiator can help with installation clearance. The 3.4-inch 480 × 480 IPS LCD adds a customisable display element, while the side-exit tubing creates a cleaner installation.

Another major advantage is its 6-year warranty, which is notably longer than the 3-year warranty commonly offered with many AIO coolers.

For users building a premium gaming PC, enthusiast workstation, or showcase system, the HydroShift LCD-S 360S offers a combination of cooling, aesthetics, compatibility, and long-term warranty coverage.

Product Highlights

• 360mm AIO Liquid CPU Cooler
• 3.4-inch Square IPS LCD
• 480 × 480 Display Resolution
• 500 Nits Brightness
• 60Hz Refresh Rate
• 24-bit sRGB
• Magnetic Hot-Swappable LCD
• Pogo Pin Connection
• 24mm Slim Aluminium Radiator
• Side-Exit Corrugated Tubing
• Server-Grade Tubing
• 450mm & 470mm Tubing
• 3 × UNI FAN CL120 ARGB Fans
• 0–2100 RPM Fan Speed
• 30 dBA Fan Noise
• 1600–3200 RPM Pump Speed
• Under 28 dBA Pump Noise
• Wireless Remote Mode
• L-Connect 3 Software Support
• Intel LGA1700 & LGA1851
• AMD AM4 & AM5
• 6-Year Warranty
