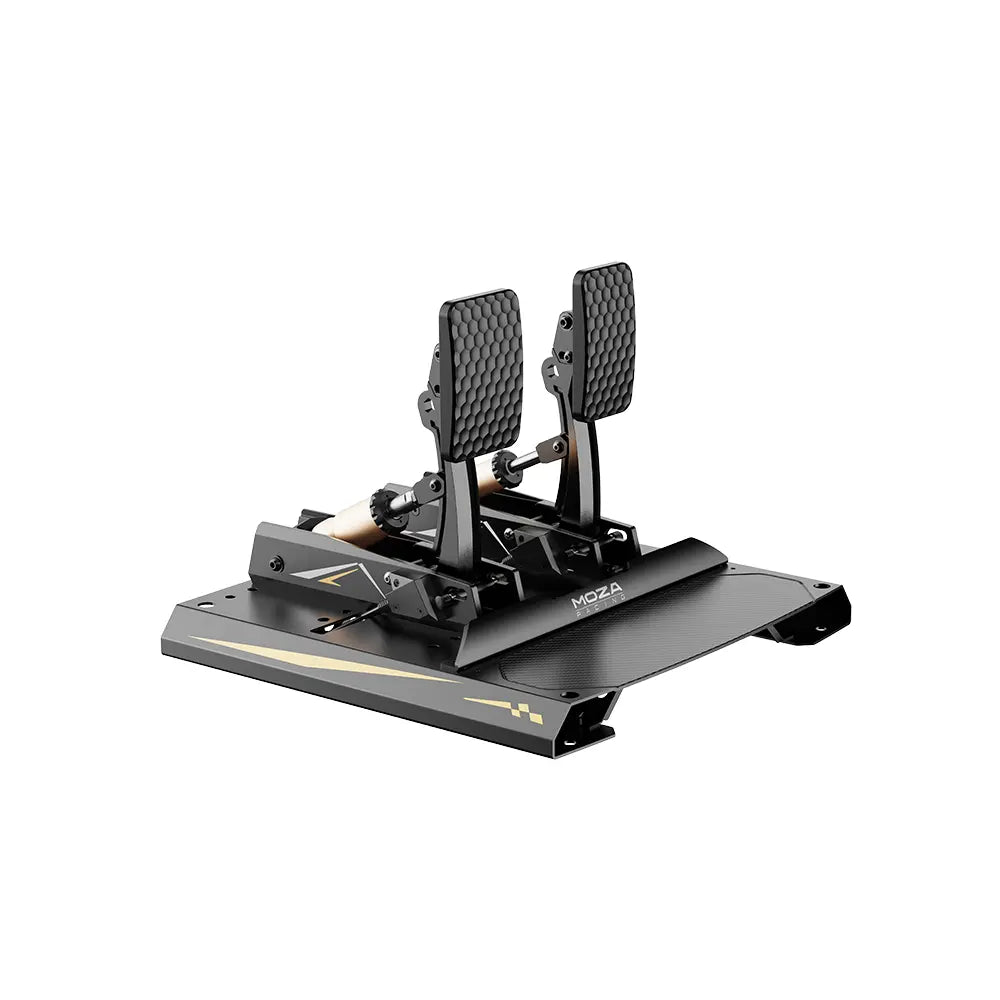

MOZA CRP2 Load Cell Pedals Throttle and Brake Two Pedal Set

This is a TWO pedal set: throttle and brake. There is no clutch pedal in the box.

We are opening with that because MOZA's own gallery photography for this product shows three pedals, and several retailers reuse those images. The clutch is a separate purchase.

What you get

• 1x throttle pedal
• 1x brake pedal
• Official name: MOZA CRP2 Load Cell Pedals (Throttle+Brake)

Key specifications

• Brake sensing: 200kg load cell combined with a 15 bit magnetic angle sensor
• Brake feel: spring and elastomer, adjustable via the separate CRP2 Performance Kit
• Platform: PC over USB, and Xbox

What a 200kg load cell actually means

A load cell brake measures how hard you press rather than how far you move the pedal, which is how a real brake works. Muscle memory built on a load cell transfers to a real car in a way that a potentiometer pedal's does not. 200kg is the sensor's rated capacity, not the force you need to apply, and the actual pedal weight is set by the springs and elastomers fitted.

The sensor fusion approach, load cell plus a 15 bit angle sensor, gives both pressure and position data, which lets the software model brake behaviour more accurately than pressure alone.

Adding a clutch

The MOZA CRP2 Load Cell Clutch Pedal is a separate product that mounts alongside this set to make a three pedal arrangement. It requires this set to work and cannot be used on its own.

One of the few MOZA products with Xbox support as well as PC.
