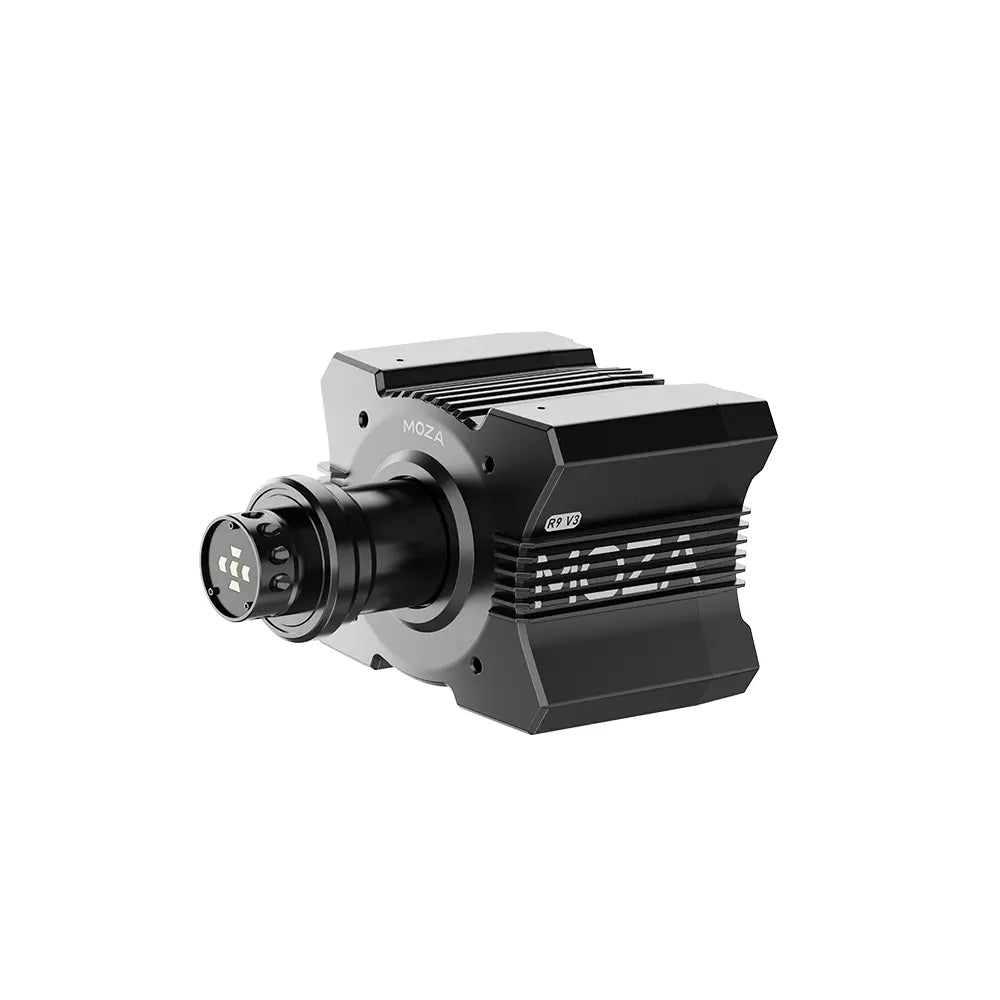

MOZA R9 V3 Direct Drive Wheel Base 9Nm

A 9Nm direct drive wheelbase with a 21 bit magnetic encoder, meaning over two million position readings per revolution. That resolution is what separates a base that communicates road texture from one that only communicates cornering load.

Key specifications

• Peak torque: 9Nm
• Drive: direct drive
• Encoder: 21 bit magnetic, 2,097,152 PPR
• Motor: 18 slot, 16 pole servo
• Peak power: 180W
• Polling rate: 1000Hz over USB
• Rotation: 90 to 2700 degrees
• Housing: aviation grade aluminium
• Dimensions: 240 x 157 x 124mm
• Mounting: 4 hole bottom mount, optional table clamp and side mounting
• Platform: PC only

This is a base only

No steering wheel and no pedals are included. You need a MOZA wheel rim to attach to it and a pedal set to go with it. If you want a complete setup in one purchase, look at the R5 Pro or R3 bundles instead.

At 9Nm, mount it properly

A table clamp will hold a 9Nm base, but under load the desk will flex and you will feel that flex rather than the car. At this torque level a bolted rig or at minimum a very solid desk with the 4 hole bottom mount is worth the investment. The base is only as good as what it is attached to.

PC only. No console support.
