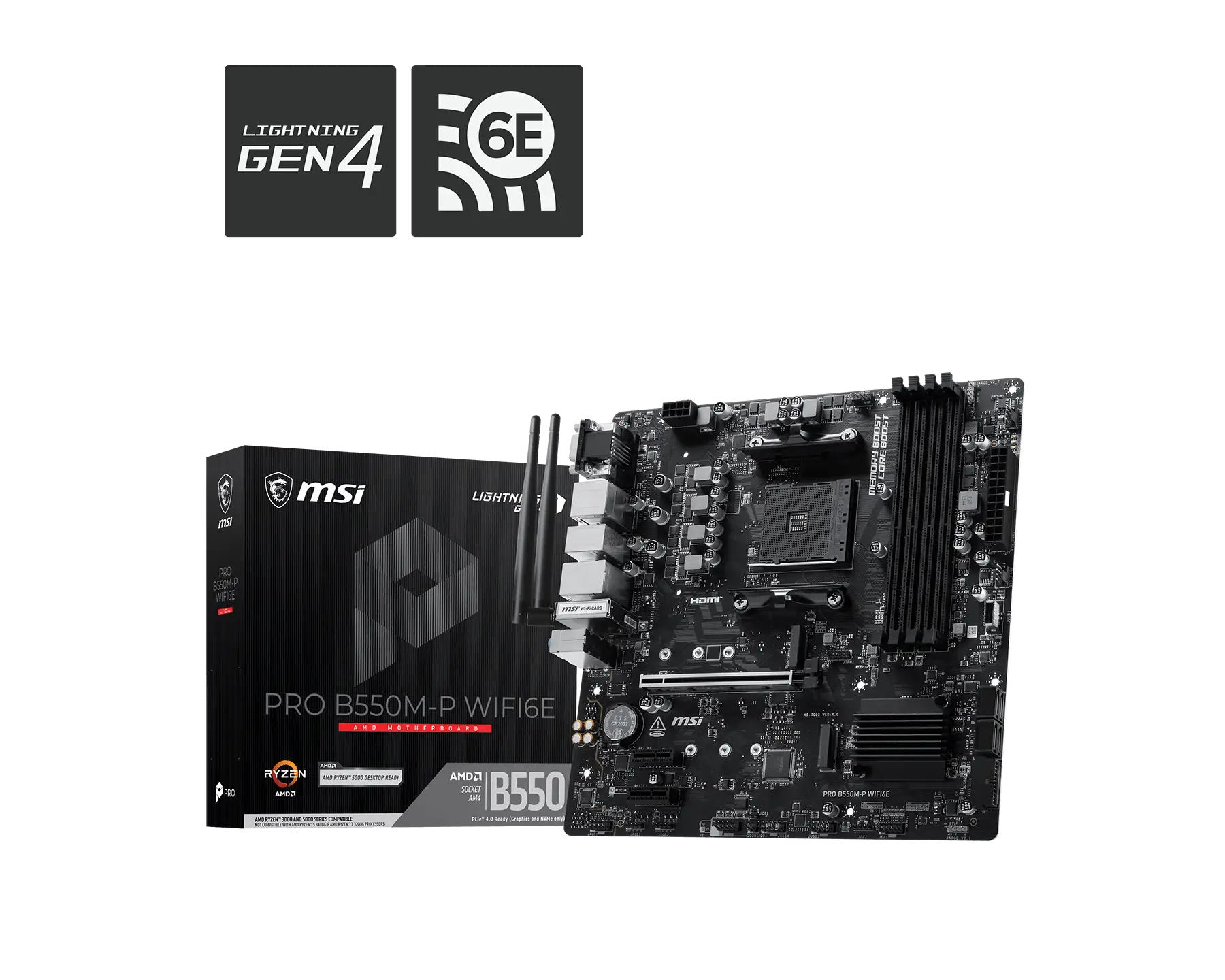

MSI PRO B550M-P WiFi6E AMD AM4 Micro ATX Motherboard DDR4

One of the very few B550 boards anywhere that ships with Wi-Fi 6E including the 6GHz band, plus Bluetooth 5.3. B550 is a 2020 chipset, so a 6E refresh on it is unusual, and it is the main reason to pick this board over the dozens of other AM4 Micro ATX options.

Still the best value route into Ryzen

AM4 with DDR4 means a Ryzen 5600, 5700X3D or 5800X3D build costs a fraction of the equivalent AM5 platform, with no DDR5 premium. For a gaming build on a budget this is still the sensible platform in 2026.

Storage and expansion

Two M.2 slots, the first PCIe 4.0 x4 straight off the CPU at 64Gb/s and the second PCIe 3.0 x4 from the chipset. The PCIe 4.0 x16 graphics slot has Steel Armor reinforcement for heavy cards. Four SATA 6Gb/s with RAID 0, 1 and 10 support.

Display outputs including VGA

DisplayPort 1.4, HDMI and a D-Sub VGA port. The VGA output still matters for office, education and institutional buyers reusing older panels, and most current boards have dropped it entirely.

Front panel USB-C

There is a front panel USB 5Gbps Type-C header on board, which is rare at this price point on AM4.

Specifications

• Chipset: AMD B550. Socket AM4
• CPU support: Ryzen 5000, 5000 G series, 4000 G series and 3000 series
• Form factor: Micro ATX, 243.84 x 243.84mm
• Memory: 4 x DDR4 DIMM, dual channel, up to 128GB, DDR4-2667 to 4400 plus MT/s OC via A-XMP
• PCIe: 1 x PCIe 4.0 x16 with Steel Armor from CPU, 2 x PCIe 3.0 x1 from chipset
• M.2: M2_1 PCIe 4.0 x4 or SATA mode from CPU (2280 / 2260 / 2242), M2_2 PCIe 3.0 x4 from chipset (2280 / 2260 / 2242)
• SATA: 4 x SATA 6Gb/s. RAID 0, 1 and 10 on SATA, RAID 0 and 1 on NVMe
• Rear IO: 1 x D-Sub VGA, 1 x DisplayPort 1.4, 1 x HDMI, 1 x PS/2, 4 x USB 5Gbps Type-A, 2 x USB 2.0, 1 x RJ-45, Wi-Fi antenna connectors, 3 x audio jacks
• Internal headers: 1 x USB 5Gbps Type-C front header, 2 x USB 5Gbps Type-A, 4 x USB 2.0, CPU and ATX power, CPU and system fan, 2 x RGB, TPM 2.0, front audio
• LAN: Realtek RTL8111H Gigabit
• Wireless: Wi-Fi 6E across 2.4, 5 and 6GHz, plus Bluetooth 5.3
• Audio: Realtek ALC897, 7.1 channel with MSI Audio Boost
• Warranty: 3 years

Note: The front panel Type-C header on this board is USB 5Gbps. Some retailer listings state 10Gbps, which does not match MSI's own specification.

In the box: Motherboard, Wi-Fi antenna, SATA cables, driver media, user manual. Contents vary by region.
