Noctua High Performance Cabinet Fan With Swappable Color Vibration pads, The NF-A14 PWM Is a 140mm Cabinet Fan with High Airflow, SSO2 Bearing, Provides upto 1500 RPM Speeds.
Features

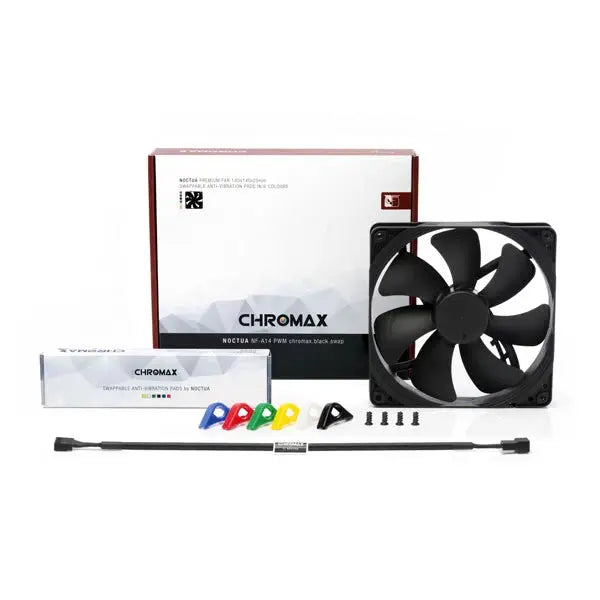

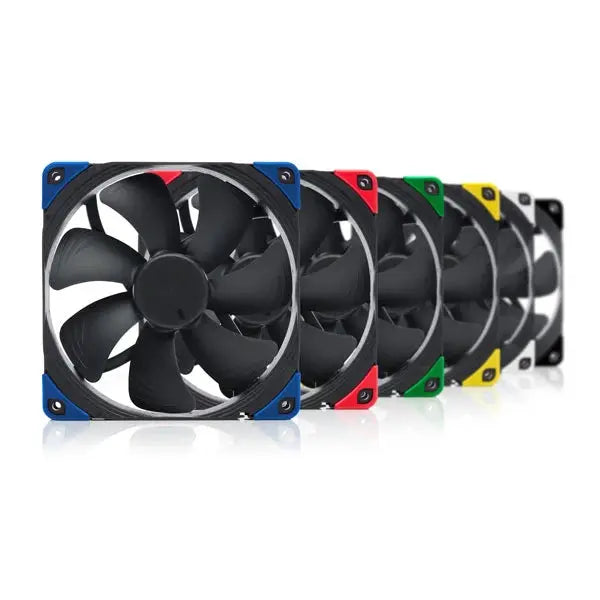

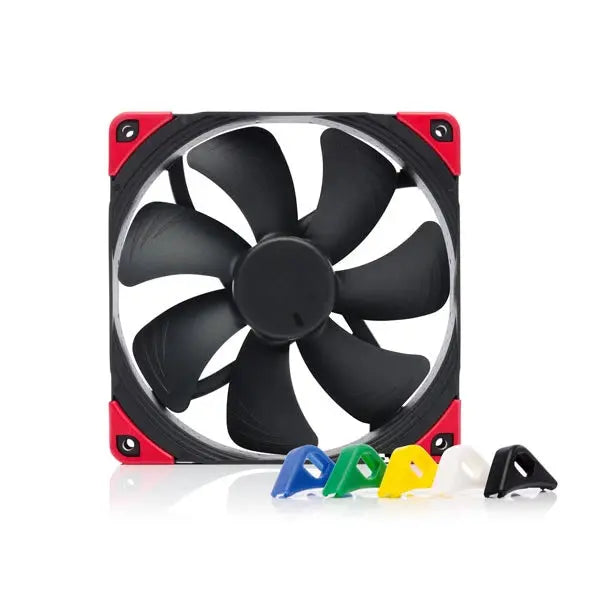

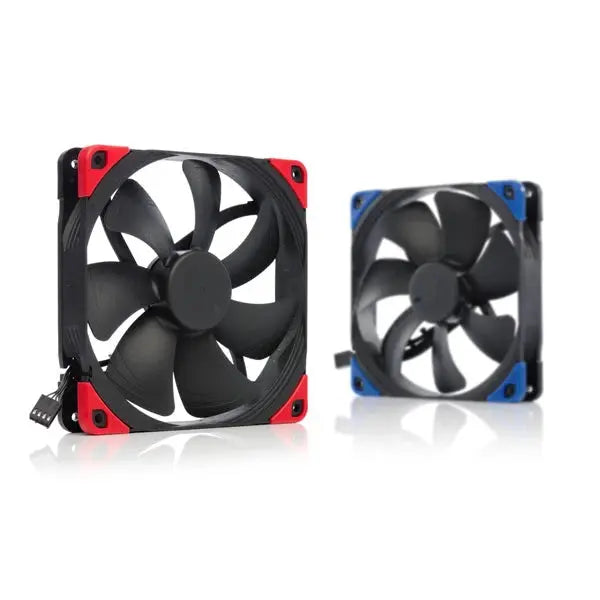

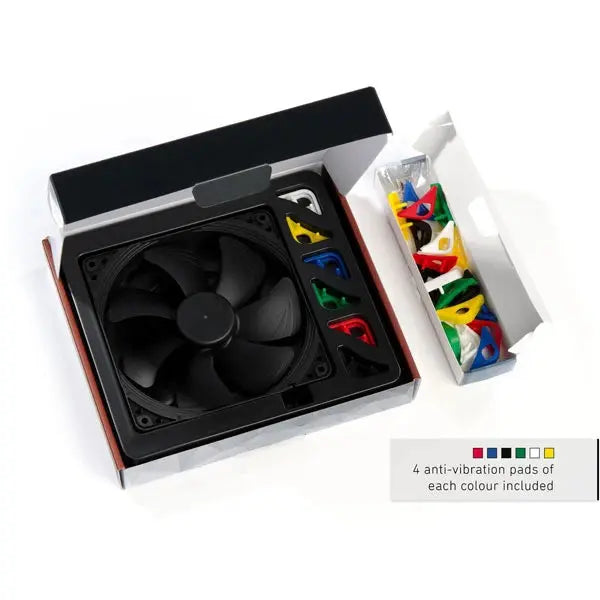

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-A14 is one of Noctua’s most renowned and popular 140mm fans. Its square frame makes it ideal for use on water cooling radiators or as a case fan. The chromax.black.swap edition combines the NF-A14’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A14 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Specifications
| FAN Specification | |
| Size | 140x140x25 mm |
| Mounting hole spacing | 124,5x124,5 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 1cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1500 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Airflow | 140,2 m³/h |
| Acoustical noise | 24,6 dB(A) |
| Static pressure | 2,08 mm H₂O |
| Max. input power | 1,56 W |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
