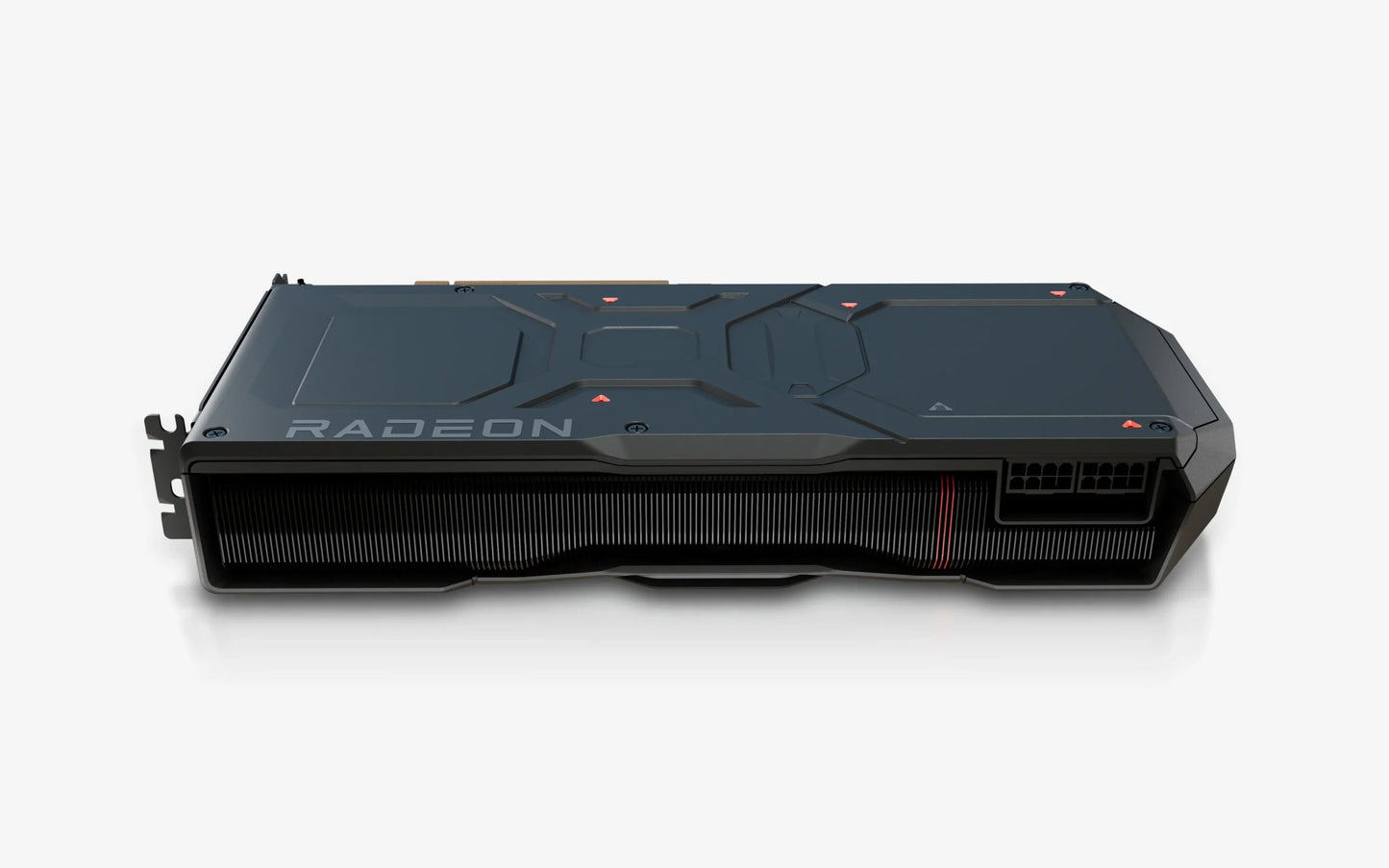

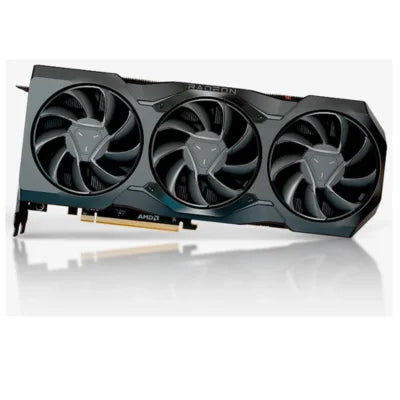

Sapphire AMD Radeon RX 7900 XTX 24GB Graphics Card, DisplayPort 2.1, 96MB AMD Infinity Cache technology, AMD Radiance Display Engine.

Specifications

• #SKU#: 21322-01-20G AMD Radeon™ RX 7900 XTX Gaming Graphics Card with 24GB GDDR6, AMD RDNA™ 3 architecture

GPU

AMD Radeon™ RX 7900 XTX Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

• Boost Clock: Up to 2500 MHz
• Game Clock: Up to 2300 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

6144

Compute Units

96 CU (with RT+AI Accelerators)

Infinity Cache

96MB

Ray Accelerators

96

Memory Size/Bus

24GB GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320
• USB-C: 7680x4320

Interface

PCI-Express 4.0 x16

Output

• 1x HDMI
• 2x DisplayPort
• 1x USB-C

BIOS Support

• UEFI

Game Index

4K

AMD Features

• AMD RDNA™ 3 Gaming Architecture
• 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
• 96MB AMD Infinity Cache™ technology
• DisplayPort™ 2.1
• AMD Radiance Display™ Engine
• AMD Radeon™ Boost technology*
• AMD Radeon™ Anti-Lag* technology*
• 24GB GDDR6 on 384-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ technologies*
• AMD FidelityFX™ Super Resolution technology*
• Microsoft® DirectX® 12 Ultimate
• Microsoft® DirectStorage
• Vulkan® Optimized
• AMD smart technologies*
• AMD Software: Adrenalin Edition™ application
• AMD Noise Suppression*
• AMD Privacy View*
• AMD Radeon™ Super Resolution technology*
• AMD Link*
• AMD Freesync™ technology

Cooler Type

3 Fans

Form Factor

2.5 slot, ATX
Dimension: 287(L)X 123.2(W)X 51.25 (H)mm

Power Consumption

• 346W

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

• Minimum 800 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
