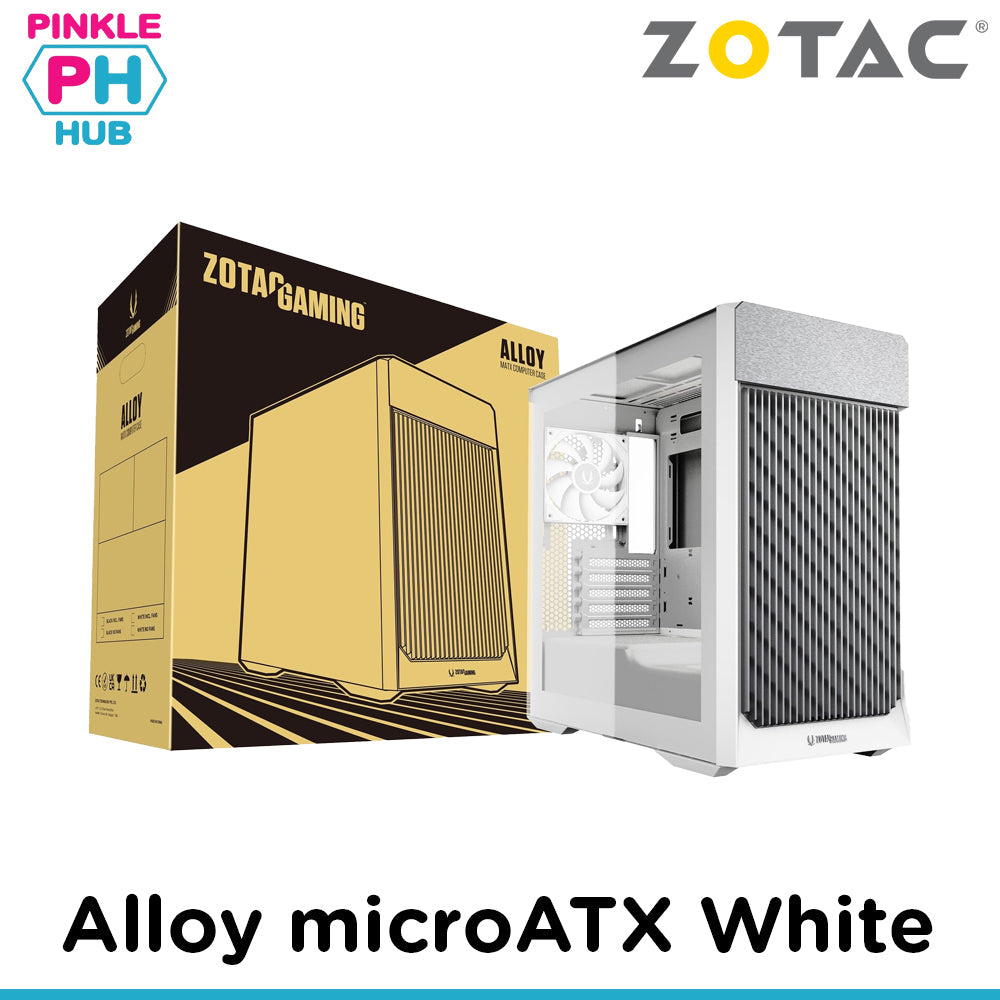

ZOTAC GAMING Alloy White & Silver mATX Cabinet – Premium Compact PC Case for High-End Builds

Build a powerful and stylish compact PC with the ZOTAC GAMING Alloy White & Silver mATX Cabinet, a premium mATX Cabinet designed for gamers, creators, and PC enthusiasts who want flagship-level hardware in a Micro ATX form factor.

Featuring a striking White and Silver colourway, tempered glass side panel, spacious 412mm GPU clearance, support for graphics cards, and room for a 360mm top-mounted radiator, this compact PC case offers the flexibility normally associated with much larger chassis.

The white interior is especially well suited to white-themed gaming PCs, allowing components, ARGB lighting, and cooling hardware to stand out clearly through the tempered glass side panel.

Why Choose This ZOTAC mATX Cabinet?

The ZOTAC GAMING Alloy White & Silver mATX Cabinet combines compact dimensions with generous hardware compatibility. Despite its Micro ATX footprint, it provides up to 412mm of graphics card clearance, making it suitable for many high-performance and flagship graphics cards.

Its dedicated airflow guide helps direct fresh air toward the graphics card, while the included PWM fans provide a strong starting point for cooling.

Key Benefits

• Premium White and Silver design
• Micro ATX chassis
• Tempered glass side panel
• Supports Micro ATX and Mini ITX motherboards
• Up to 412mm GPU clearance
• Up to 170mm CPU cooler clearance
• Supports ATX PSUs up to 180mm
• Top radiator support up to 360mm
• 3 × 120mm PWM fans included
• Up to 10 fan positions
• Dedicated GPU airflow guide ramp
• Toolless PCIe screw design
• Quick-detachable panels
• Push-to-detach dust filters
• USB 3.2 Gen2 Type-C
• USB 3.2 Gen1 Type-A
• White and Silver exterior
• Tempered glass showcase panel

Performance & Usability

Designed for High-Performance mATX Builds

The main advantage of this mATX Cabinet is its ability to accommodate powerful hardware without requiring a full-size ATX chassis.

With 412mm of GPU clearance, users can install many large graphics cards while maintaining a compact overall system footprint.

The sloped shroud and dedicated airflow guide ramp are designed to help direct airflow toward the graphics card, which can be particularly useful in performance-focused gaming builds.

Hardware Support

• Micro ATX motherboards
• Mini ITX motherboards
• Graphics cards up to 412mm
• CPU coolers up to 170mm
• ATX PSUs up to 180mm
• 360mm top radiators
• Up to 10 fan positions

Cooling & Airflow

Three Pre-Installed 120mm PWM Fans

The cabinet comes with three pre-installed 120mm PWM fans, giving your system an effective cooling foundation right out of the box.

The included fans operate between 1350 and 1450 RPM and feature vibration dampening pads for smoother operation.

Cooling Features

• 3 × 120mm PWM fans included
• Fan speed: 1350–1450 RPM
• Vibration dampening pads
• Up to 10 fan mounting positions
• Top radiator support up to 360mm
• Rear 120mm radiator support
• Dedicated GPU airflow guide

Up to 10 Fan Positions

For users who want to optimise airflow further, the cabinet provides support for up to 10 fans across the front, top, midplate, and rear areas.

This makes it possible to configure airflow according to the specific CPU, GPU, and cooling hardware installed in the system.

360mm AIO Support

Ready for High-Performance Liquid Cooling

Despite its Micro ATX dimensions, the ZOTAC Alloy provides top radiator support up to 360mm.

Supported top radiator sizes include:

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm

The rear supports a 120mm radiator.

This makes the cabinet suitable for powerful gaming systems using modern 240mm, 280mm, or 360mm AIO liquid coolers, subject to component and clearance configuration.

GPU Compatibility

Up to 412mm Graphics Card Clearance

Large graphics cards are increasingly common in modern gaming PCs, and the ZOTAC Alloy is designed with this in mind.

The cabinet provides up to 412mm of GPU clearance, allowing users to install many high-performance graphics cards without moving to a larger chassis.

The integrated airflow guide ramp also helps channel airflow toward the GPU area.

CPU Cooler Compatibility

The cabinet supports CPU air coolers up to 170mm in height.

This provides compatibility with a wide range of tower-style CPU coolers, although users should verify the exact cooler dimensions before installation.

Design & Build Quality

White & Silver Premium Aesthetic

The White and Silver colourway gives this mATX case a clean and premium appearance.

The tempered glass side panel provides a clear view of the internal components, making it particularly suitable for white-themed PC builds with matching components and ARGB lighting.

The combination of white panels and silver accents can create a more distinctive appearance than a conventional black PC case.

Materials

The cabinet uses a combination of:

• Steel
• Aluminium
• ABS
• Tempered glass

Easy Build Access

Quick-Detachable Panels

Building and maintaining a PC is made easier with quick-detachable panels on all sides.

This provides convenient access to internal components during:

• PC assembly
• Cable management
• Component upgrades
• Cleaning
• Maintenance
• Hardware replacement

Toolless PCIe Installation

The PCIe expansion slots feature a toolless screw design, helping simplify graphics card and expansion card installation.

Dust Protection

Push-to-Detach Dust Filters

The cabinet includes detachable dust filters at the front and underneath the PSU.

The push-to-detach design makes the filters easier to remove for cleaning and maintenance.

Regular dust-filter cleaning can help maintain airflow and cooling performance over time.

Storage Support

The ZOTAC Alloy provides dedicated storage mounting options for compact PC builds.

Drive Bays

• 1 × 3.5-inch drive bay
• 1 × 2.5-inch drive bay

This allows users to combine traditional storage with SSD-based storage depending on their requirements.

Front I/O Connectivity

Modern USB Connectivity

The front I/O panel provides convenient access to modern peripherals and accessories.

Front I/O

• 1 × USB 3.2 Gen2 Type-C, up to 10Gbps
• 1 × USB 3.2 Gen1 Type-A, up to 5Gbps
• 3.5mm audio
• Power button

The USB Type-C port provides faster connectivity for compatible external storage, smartphones, accessories, and other modern peripherals.

Consumer Value

The ZOTAC GAMING Alloy White & Silver mATX Cabinet is a strong choice for users who want a compact PC without sacrificing compatibility with powerful hardware.

Its 412mm GPU clearance, 170mm CPU cooler clearance, 360mm top radiator support, and multiple fan positions make it capable of housing performance-oriented components.

At the same time, the white-and-silver design and tempered glass side panel make it an excellent foundation for a clean, premium-looking white gaming PC.

For users building a complete white setup, the cabinet pairs naturally with white ARGB fans, AIO coolers, memory, graphics cards, and other components.

Product Highlights

• ZOTAC GAMING Alloy White & Silver
• Premium mATX Cabinet
• Micro ATX Chassis
• Mini ITX Support
• Tempered Glass Side Panel
• White & Silver Colourway
• 412mm GPU Clearance
• 170mm CPU Cooler Clearance
• ATX PSU Support up to 180mm
• Top 360mm Radiator Support
• 3 × 120mm PWM Fans Included
• Up to 10 Fan Positions
• Dedicated GPU Airflow Guide
• Quick-Detachable Panels
• Toolless PCIe Screws
• Detachable Dust Filters
• USB 3.2 Gen2 Type-C
• USB 3.2 Gen1 Type-A
• 1 × 3.5-inch Drive Bay
• 1 × 2.5-inch Drive Bay
• 5 PCIe Expansion Slots
• Ideal for White Gaming PC Builds
