ASRock B760M PG Lightning Motherboard

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
SKU: B760M-PG-LIGHTNING

Original price was: ₹15,000.00.Current price is: ₹11,299.00.

153 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • Blue Dart
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

  • Warranty - As Per Company Norms
  • Free RMA Support

Payment Methods:

Description

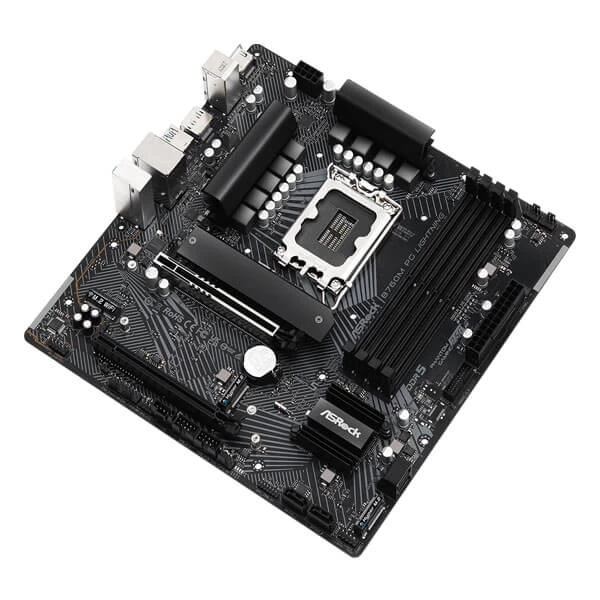

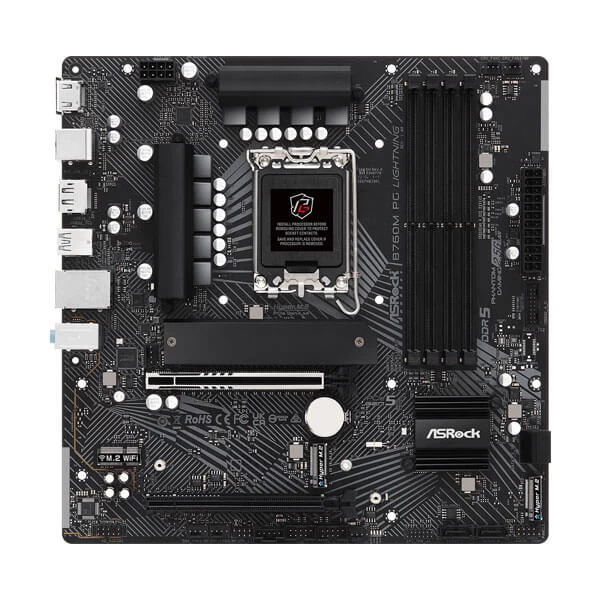

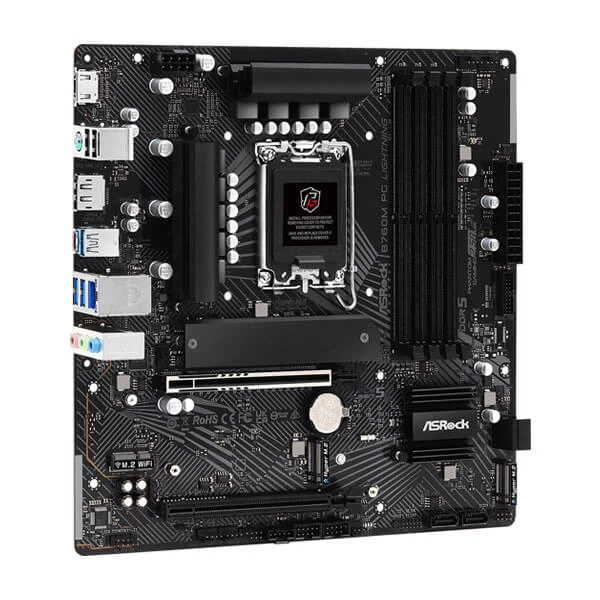

ASRock B760M PG Lightning Motherboard Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) and supports DDR5 7200MHz (OC). Others features are 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi

Features:

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),

    5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),

    6 USB 2.0 (2 Rear, 4 Front)

  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Fan-Tastic Tuning

ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system’s cooling performance and noise reduction requirements.

PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Specifications:

 Model Name  B760M PG Lightning
 Unique Feature  Superb Productivity

– PCIe Gen5 (Graphics)

– Dual Channel DDR5

Rock-Solid Durability

– 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT

Ultrafast Connectivity

– 2.5G LAN EZ Update

– ASRock Auto Driver Installer

EZ Troubleshooter

 CPU  – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

– Supports Intel® Hybrid Technology

– Supports Intel® Turbo Boost Max 3.0 Technology

– Supports Intel® Thermal Velocity Boost (TVB)

– Supports Intel® Adaptive Boost Technology (ABT)

 Chipset  – Intel® B760
 Memory  – Dual Channel DDR5 Memory Technology

– 4 x DDR5 DIMM Slots

– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

– Max. capacity of system memory: 192GB

– Supports Intel® Extreme Memory Profile (XMP) 3.0

 BIOS  – 128Mb AMI UEFI Legal BIOS with GUI support
 Graphics  – Intel® Xe Graphics Architecture (Gen 12)

– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

 Audio  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

– Nahimic Audio

 LAN  – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

– Dragon RTL8125BG

– Supports Phantom Gaming LAN Software

– Smart Auto Adjust Bandwidth Control

– Visual User Friendly UI

– Visual Network Usage Statistics

– Optimized Default Setting for Game, Browser, and Streaming Modes

– User Customized Priority Control

 Slots CPU:

– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)- Supports AMD CrossFire™

 Storage CPU:

– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors

 RAID  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
 USB  – 1 x USB 3.2 Gen1 Type-C (Rear)

– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

– 6 x USB 2.0 (2 Rear, 4 Front)

 Connector  – 1 x SPI TPM Header

– 1 x Chassis Intrusion and Speaker Header

– 1 x CPU Fan Connector (4-pin)*

– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

– 1 x 24 pin ATX Power Connector

– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector

– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

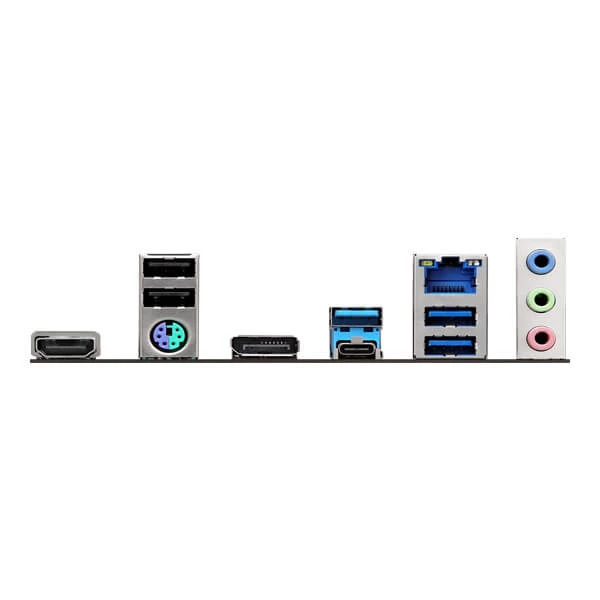

 Rear Panel I/O  – 2 x Antenna Mounting Points

– 1 x PS/2 Mouse/Keyboard Port

– 1 x HDMI Port

– 1 x DisplayPort 1.4

– 1 x USB 3.2 Gen1 Type-C Port

– 3 x USB 3.2 Gen1 Type-A Ports

– 2 x USB 2.0 Ports

– 1 x RJ-45 LAN Port

– HD Audio Jacks: Line in / Front Speaker / Microphone

 Software and UEFI  Software

– ASRock Motherboard Utility (Phantom Gaming Tuning)

– ASRock Phantom Gaming LAN Software*

UEFI

– ASRock EZ Mode

– ASRock Full HD UEFI

– ASRock My Favorites in UEFI

– ASRock Auto Driver Installer

– ASRock Instant Flash

– ASRock Easy RAID Installer

 Accessories  – 1 x User Manual

– 1 x I/O Shield

– 2 x SATA Data Cables

– 4 x Screws for M.2 Sockets

– 1 x Standoff for M.2 Socket

 Form Factor  – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
 OS  – Microsoft® Windows® 10 64-bit / 11 64-bit
 Certifications  – FCC, CE

– ErP/EuP ready (ErP/EuP ready power supply is required)

 Warranty  3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMINTEL
  • SOCKETLGA1700
  • ChipsetB760
  • SUPPORTED MEMORY TYPEDDR5
  • MAX MEMORY SUPPORT192 GB
  • FORM FACTORM-ATX
