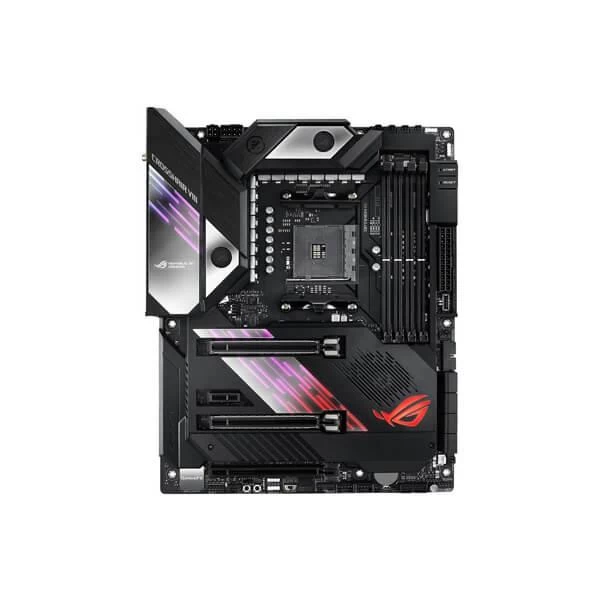

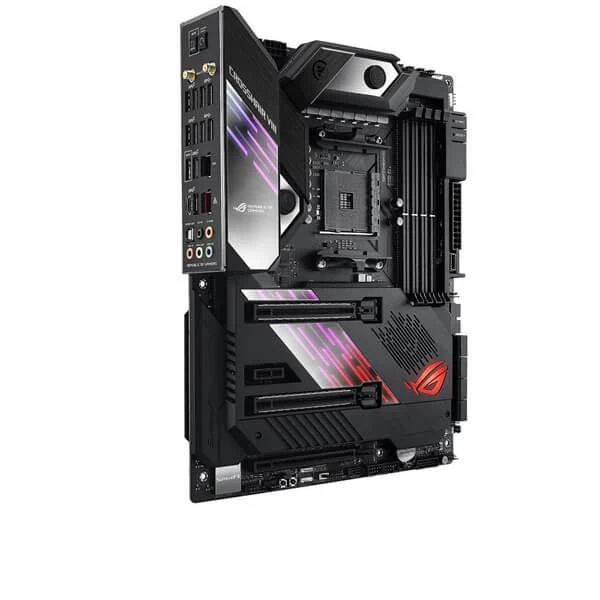

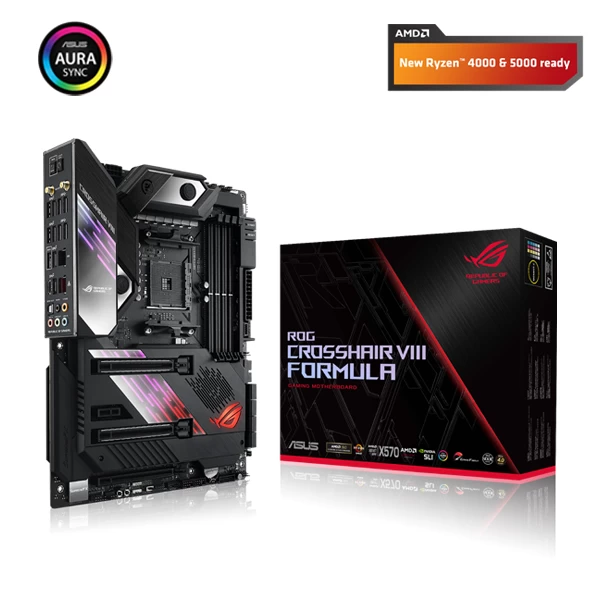

Asus ROG Crosshair VIII Formula
₹53,499.00
AMD X570 ATX GAMING MOTHERBOARD WITH PCIE 4.0, 16 POWER STAGES , OPTIMEM III, ON-BOARD WI-FI 6 (802.11AX), 5 GBPS LAN, USB 3.2, SATA, M.2, ASUS NODE AND AURA SYNC RGB LIGHTING
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
- Description
- Reviews (0)
Description
AMD X570 ATX GAMING MOTHERBOARD WITH PCIE 4.0, 16 POWER STAGES , OPTIMEM III, ON-BOARD WI-FI 6 (802.11AX), 5 GBPS LAN, USB 3.2, SATA, M.2, ASUS NODE AND AURA SYNC RGB LIGHTING
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
EXPERTLY TOOLED TOTALLY COOLED CROSSCHILL EK III
CrossChill EK III lets you cool with air and water. The redesigned cooling channels provide wider copper, delivering up to 29.3°C-lower MOSFET temperatures on water, and the standard G1/4″ threaded fittings mean CrossChill EK III easily fits existing setups — so you can enjoy efficient, quiet cooling with the minimum effort.
COOLER BY DESIGN
ROG Crosshair VIII Formula features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
● ROG Water-Cooling Zone : Water In/Out and water-flow headers feed status information straight into the AI Suite utility, so you can keep track of coolant temperatures and the flow rate of the entire loop to ensure the best cooling performance.
● Multiple Temperature Sources : Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
● 4-pin PWM/DC fan : Every onboard header supports auto-detection of PWM or DC fans.
● Multiple Temperature Sources : Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
● 4-pin PWM/DC fan : Every onboard header supports auto-detection of PWM or DC fans.
ACTIVE CHIPSET HEATSINK SOLUTION
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Formula features an actively cooled heatsink to prevent throttling during sustained transfers.
● Custom Delta Superflo Fan : The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan. * L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
● Air Duct : A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
● Finned heatsink : The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
● Air Duct : A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
● Finned heatsink : The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
POWER DESIGN THAT BUCKS TRENDS
The monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 16 strategically paired power stages, the Formula’s VRM is geared for any workload and all operating conditions.
1. ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines.
2. The VRM is comprised of 16 IR3555 PowIRstages, each rated to handle 60 amps.
3. Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
4. Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
2. The VRM is comprised of 16 IR3555 PowIRstages, each rated to handle 60 amps.
3. Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
4. Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
ACCURATE VOLTAGE MONITORING
Conventional motherboards use single-ended sensing tapped from a location that isn’t ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Formula features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately.
OPTIMEM III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the ROG Crosshair VIII Formula with your favourite modules and maximize Matisse throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
NETWORKING
1. ROG Crosshair VIII Formula comes with on-board Wi-Fi 6 (802.11ax) support, offering ultrafast networking speeds, improved network capacity and better performance in dense Wi-Fi environments for exceptional online gaming experiences with the convenience of a wireless connection.
2. Designed for the demanding requirements of power users and content creators who push the envelope, onboard 5Gbps Ethernet plugs you into a new era of home networking. With up to 5X the bandwidth of standard gigabit Ethernet, you’ll enjoy streaming uncompressed 4K UHD videos, backups and file transfers that are faster than ever before. Formula supports intermediate 2.5Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy ultra-low latency at any speed.
3. ROG Crosshair VIII Formula features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
2. Designed for the demanding requirements of power users and content creators who push the envelope, onboard 5Gbps Ethernet plugs you into a new era of home networking. With up to 5X the bandwidth of standard gigabit Ethernet, you’ll enjoy streaming uncompressed 4K UHD videos, backups and file transfers that are faster than ever before. Formula supports intermediate 2.5Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy ultra-low latency at any speed.
3. ROG Crosshair VIII Formula features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
UNTHROTTLED TRANSFER SPEED
Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3th Generation AMD Ryzen platform.
AMD STOREMI
AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
GAMEFIRST V NETWORK CONTROL
GameFirst V is an ROG-exclusive tool that optimizes network traffic and your connection for faster, lag-free online gaming. Select the best Wi-Fi channel for maximum stability and minimum interference, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.
SONIC STUDIO III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Features
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
Specifications
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory Dual Channel Memory Architecture |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 |
| Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Intel® I211-AT Aquantia AQC111C 5G LAN ASUS LAN Guard ROG GameFirst V Technology |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 – Supports : Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – SupremeFX Shielding Technology – ESS® ES9023P – Supports up to 32-Bit/192kHz playback * Audio Feature : – Gold-plated jacks – Optical S/PDIF out port(s) at back panel – Sonic Radar III – Sonic Studio III + Sonic Studio Link * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports | 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) AMD X570 chipset : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) |
| ROG Exclusive Features | ROG RGB Armor Start Button Reset Button ROG Aura – Aura Lighting Control – Aura RGB Strip Headers Extreme Engine Digi+ : – IR3555 PoweIRstage® – MicroFine Alloy Chokes – 10K Black Metallic Capacitors ROG Extreme OC kit : – Safe Boot button – Slow Mode – LN2 Mode UEFI BIOS features : – Tweakers’ Paradise – ROG SSD Secure Erase – Graphic Card Information Preview USB BIOS FlashBack™ Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software – Mem Tweakit – RAMCache III – RAMDisk – CPU-Z – GameFirst V – Sonic Studio III + Sonic Studio Link – Sonic Radar III – Overwolf |
| Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer’s Guardian: – DRAM Overcurrent Protection – 10K Black Metallic Capacitors – ESD Guards on LAN, Audio,and USB ports ASUS SafeSlot – Protect your graphics card Investment LiveDash OLED AURA : – Aura Lighting Control – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS Exclusive Features : – USB BIOS FlashBack™ – AI Suite 3 – Ai Charger – ASUS CrashFree BIOS 3 – Armoury Crate – Pre-mounted I/O Shield – ASUS NODE: hardware control interface – BIOS FlashBack™ Button – Clear CMOS Button ASUS Q-Design : – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-DIMM – ASUS Q-Connector |

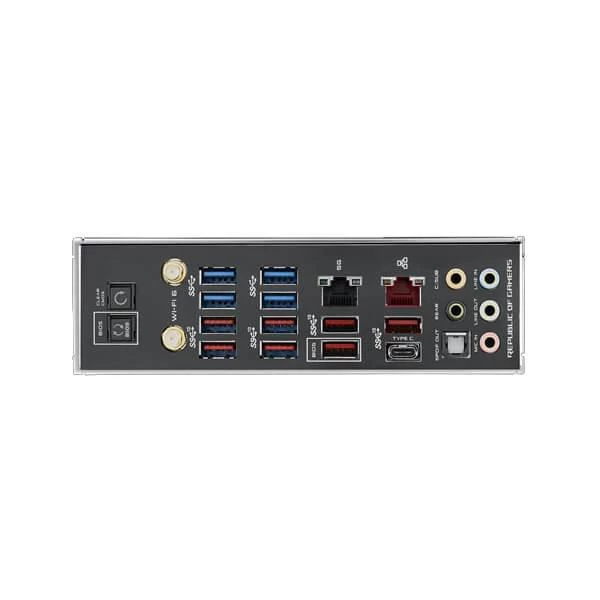

| Back I/O Ports | 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 1 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port |
| Internal I/O Ports | 1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Node Connector(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
| Accessories | User’s manual 1 x ROG logo plate sticker 4 x SATA power cable 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card |
| Wireless Data Network | Intel® Wi-Fi 6 AX200 Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed |
| Bluetooth | Bluetooth® 5.0 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
