Model

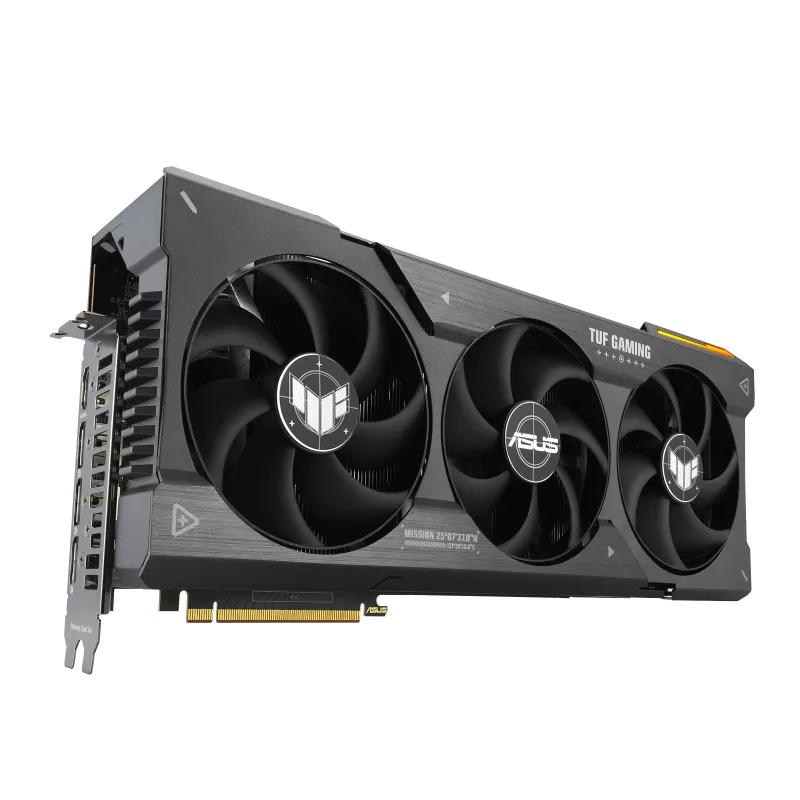

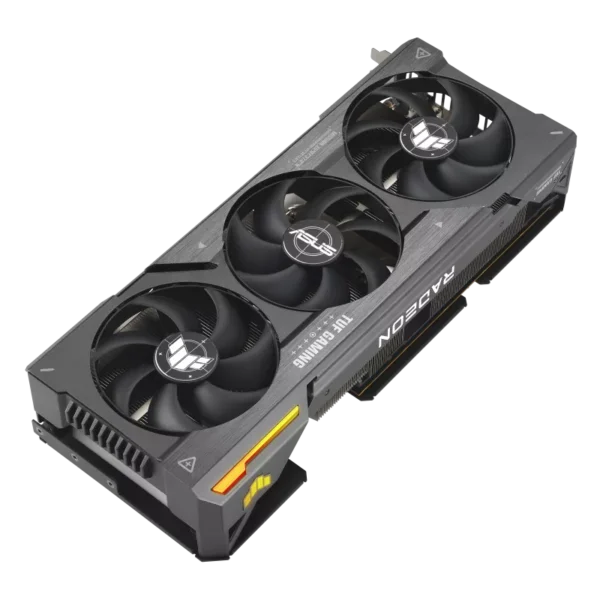

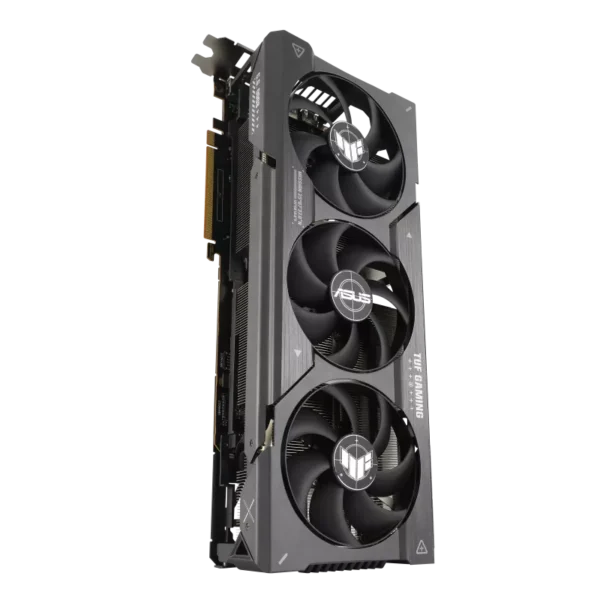

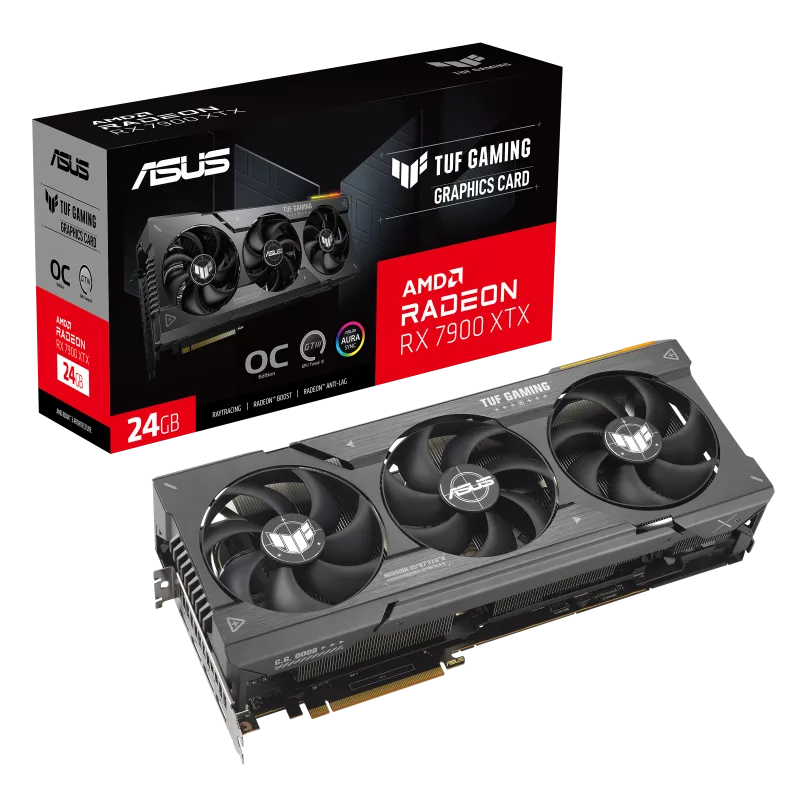

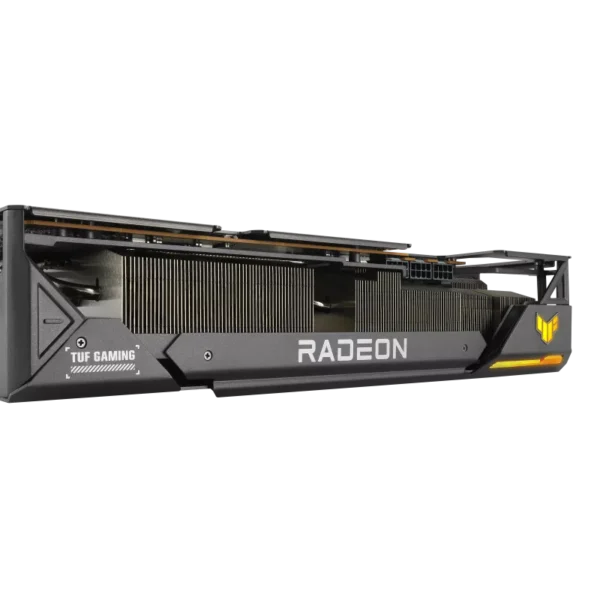

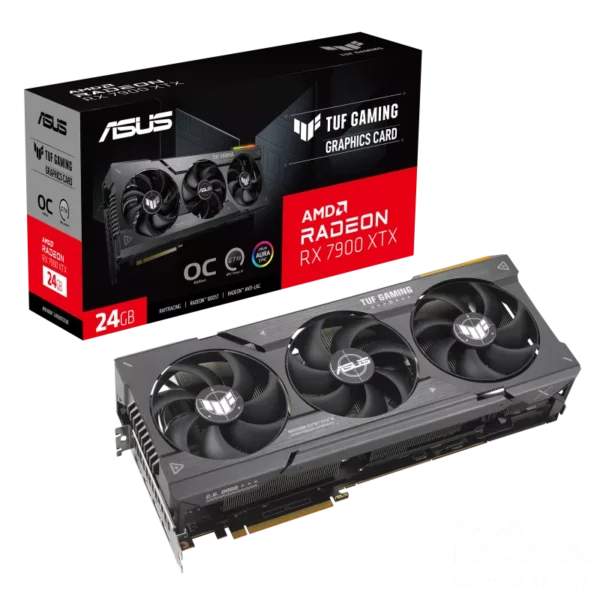

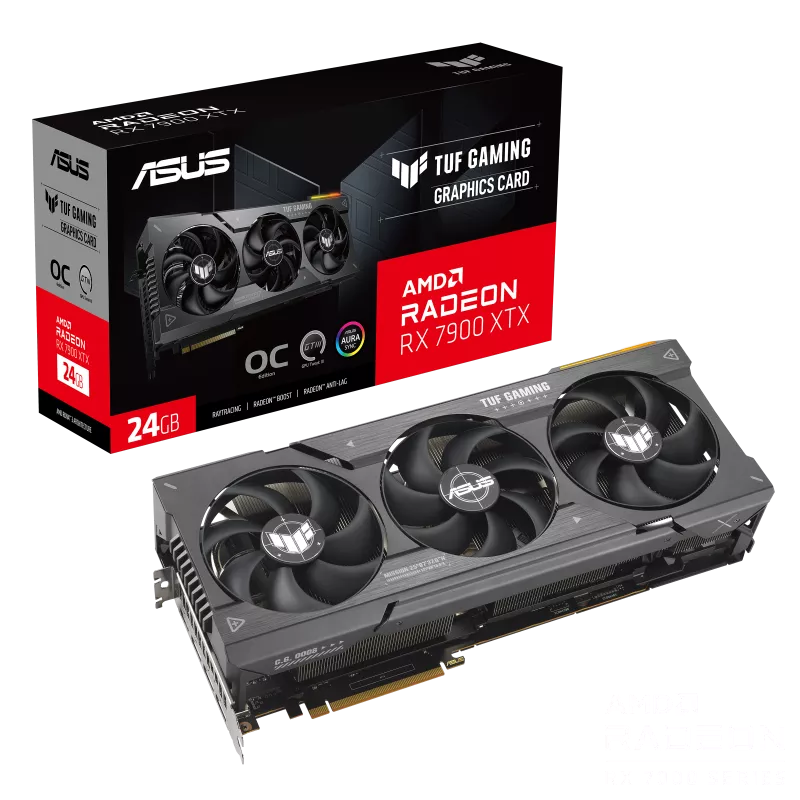

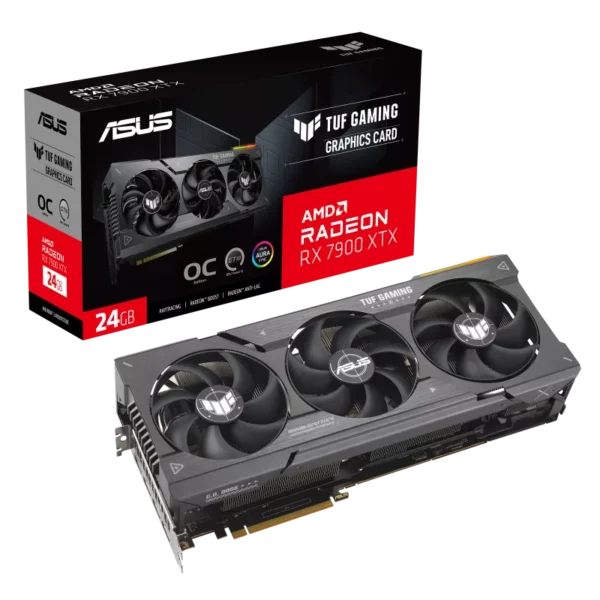

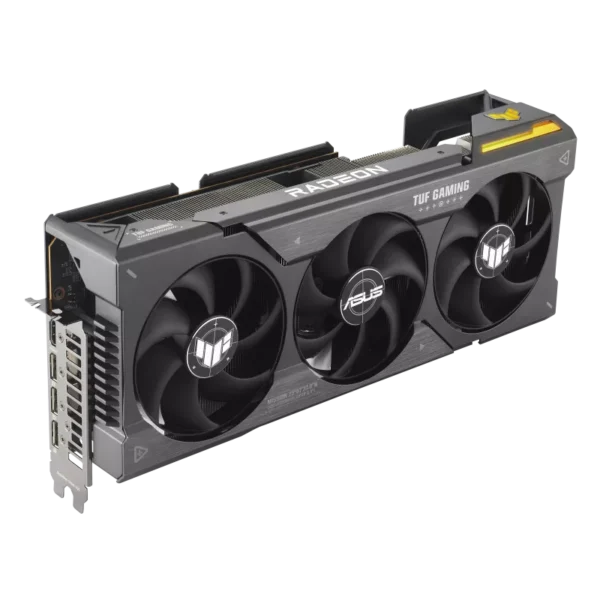

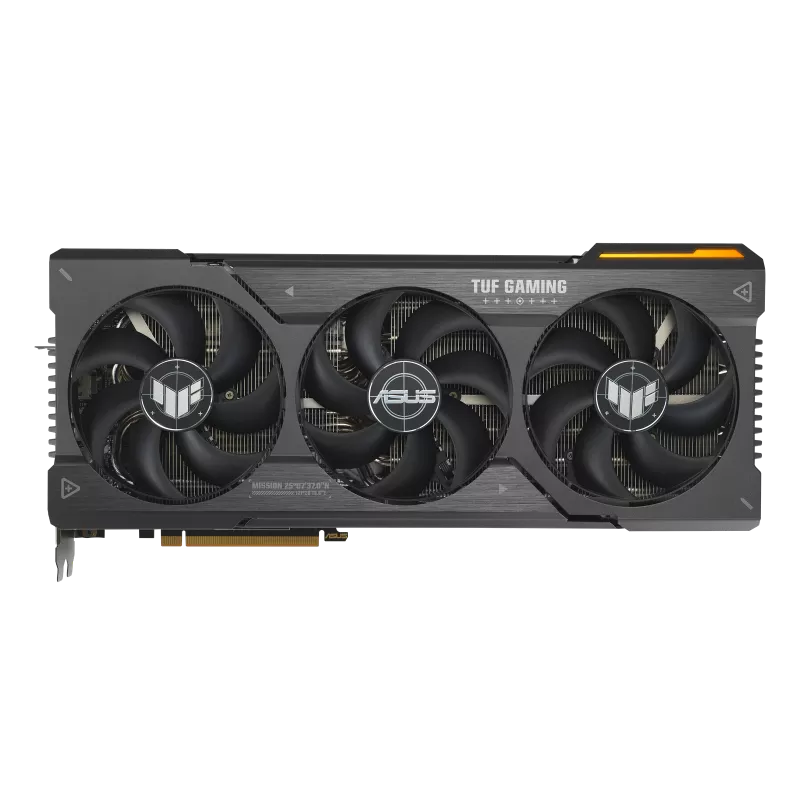

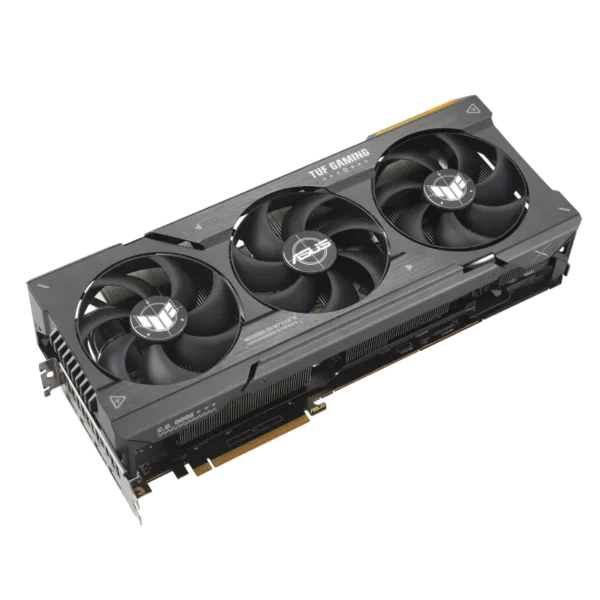

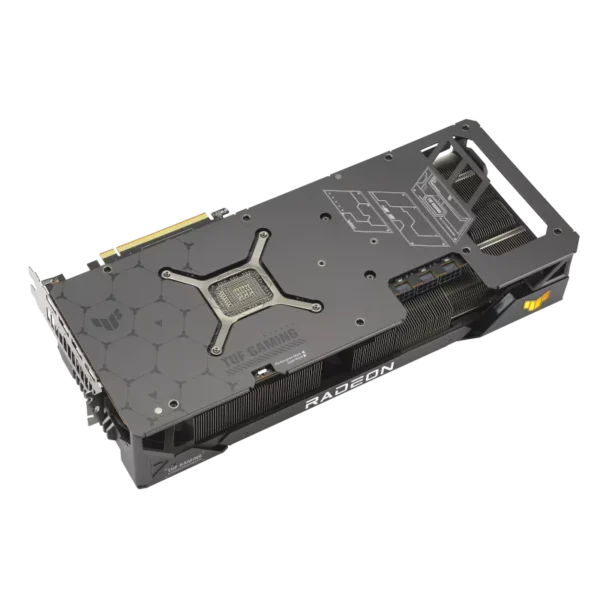

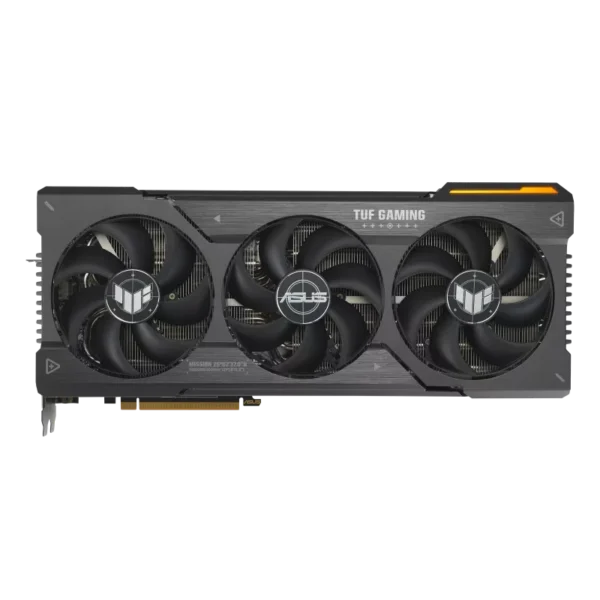

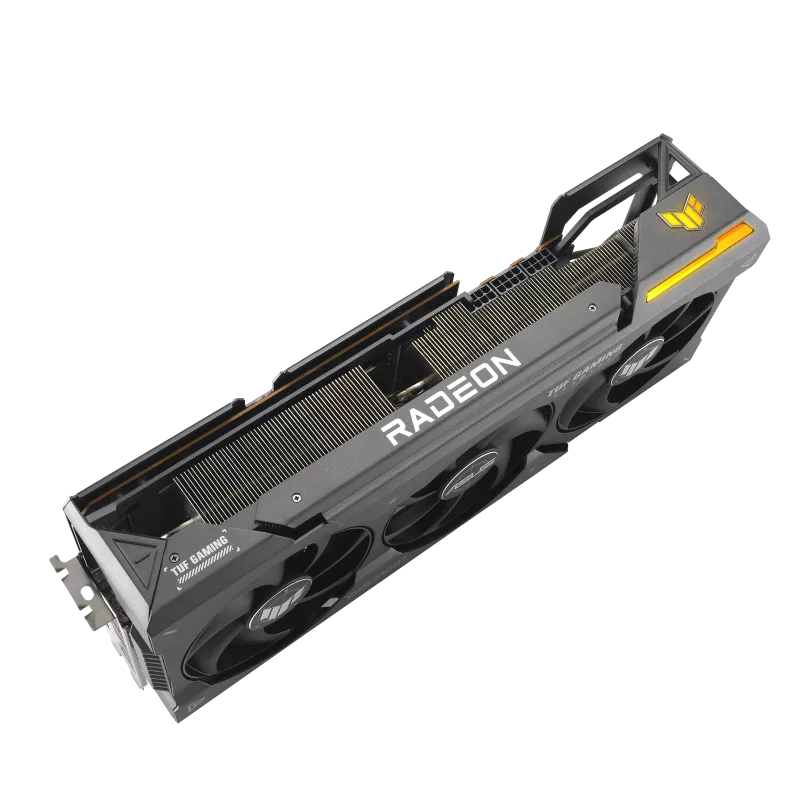

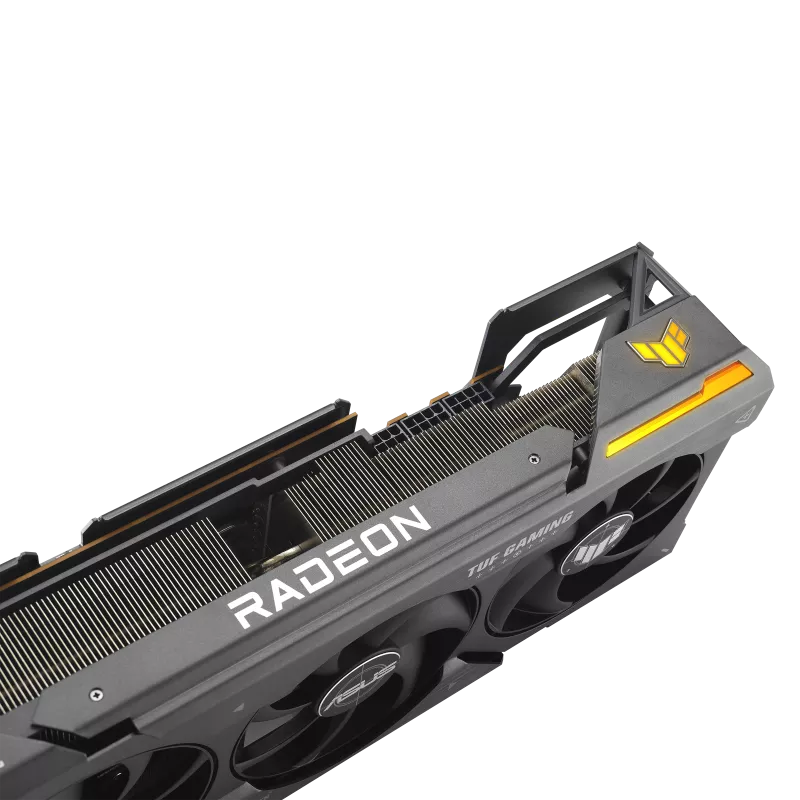

ASUS TUF Gaming Radeon RX 7900 XTX OC Edition 24GB GDDR6

Graphic Engine

AMD Radeon™ RX 7900 XTX

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

24GB GDDR6

Engine Clock

OC mode : up to 2615 MHz (Boost Clock)/up to 2455 MHz (Game Clock)
Default mode : up to 2565 MHz (Boost Clock)/up to 2395 MHz (Game Clock)

Stream Processors

6144

Memory Speed

20 Gbps

Memory Interface

384-bit

Resolution

Digital Max Resolution 7680 x 4320

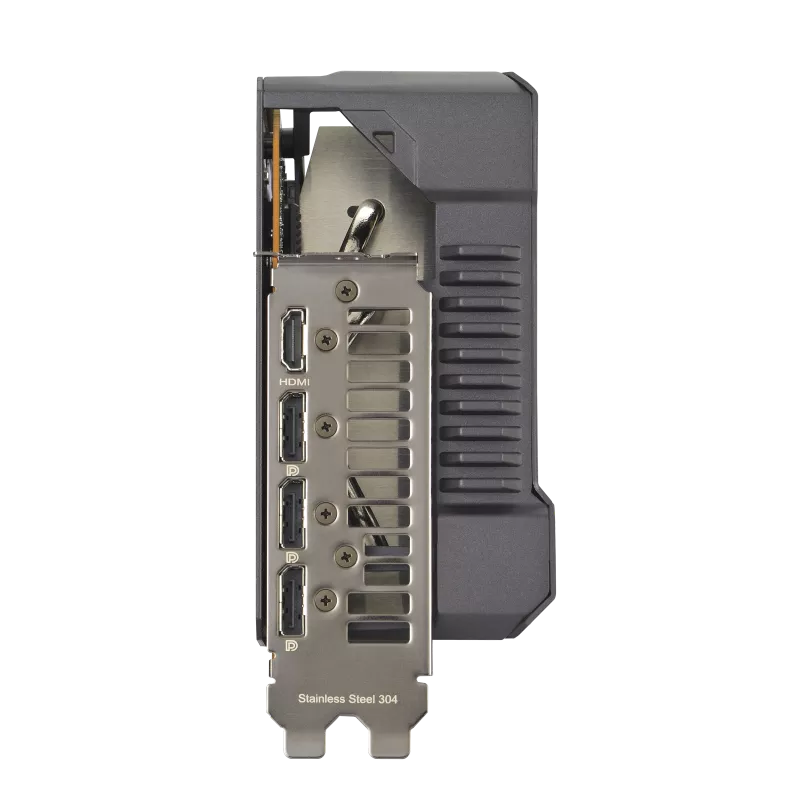

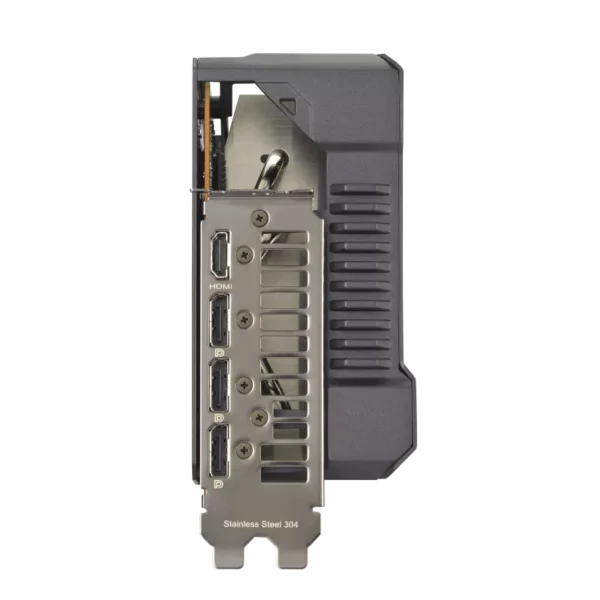

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

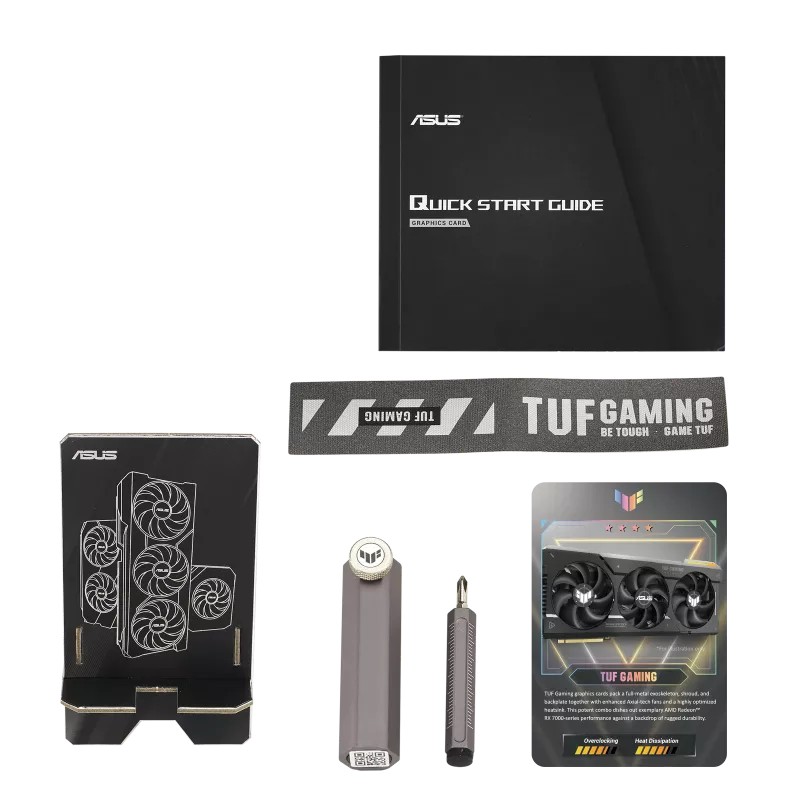

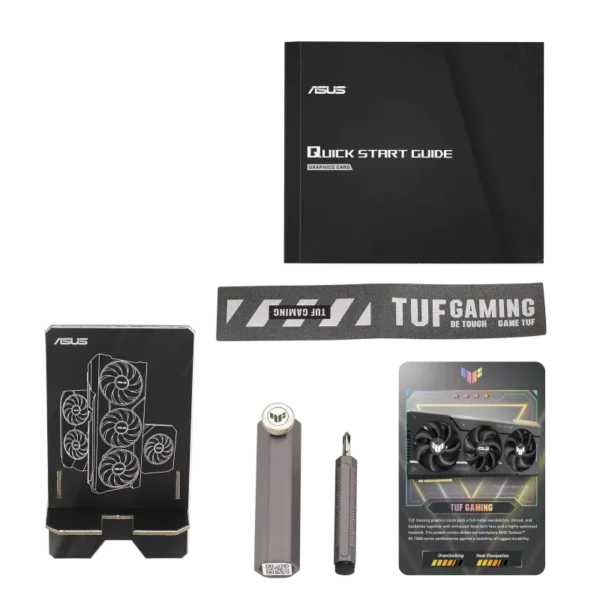

Accessories

1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

13.9 x 6.23 x 2.86 inches
352.9 x 158.2 x 72.6 mm

Recommended PSU

850W

Power Connectors

3 x 8-pin

Slot

3.63 Slot

AURA SYNC

ARGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality.
