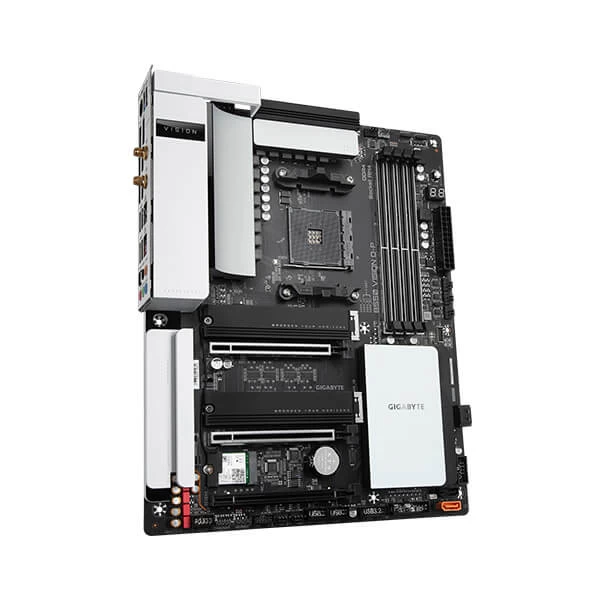

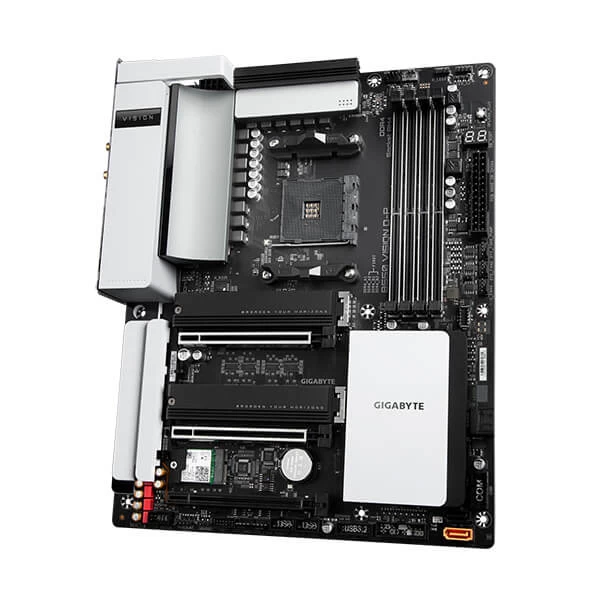

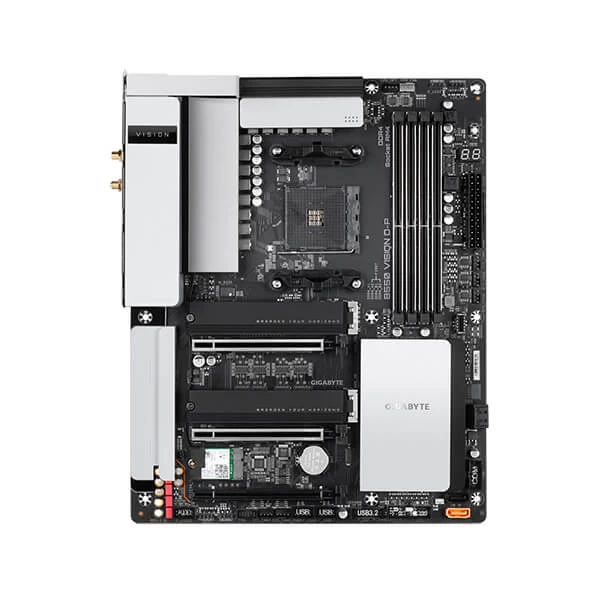

Gigabyte B550 Vision D-P Motherboard

Gigabyte B550 Vision D-P Motherboard

  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe 3.0 x16 slots
  • Fully Quadro® QVL Tested
SKU: B550-VISION-D-P

23,500.00

Out of stock

Out of stock

121 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty - As Per Company Norms
  • Free 7-Day returns

Payment Methods:

Description

Gigabyte B550 Vision D-P Motherboard

Gigabyte AMD Ryzen 5th Gen Supported B550 Vision D-P Motherboard Featuring DDR4 Memory Support Upto 128GB, Speeds Upto 5100 Mhz, With Realtek ALC1220-VB Codec, Intel WiFi-6 and Dual 2.5 Gigabit Ethernet.

Features

AMD B550 Creators Motherboard with Intel Thunderbolt™ 3 certification, effective cooling solution, DDR4 ECC & Non-ECC memory, Intel® Wi-Fi 6 802.11ax and dual 2.5GbE LAN, Triple PCIe 4.0/3.0 x16 slots, Dual PCIe 4.0/3.0 M.2 Connectors
  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe 3.0 x16 slots
  • Fully Quadro® QVL Tested
  • The limitless connectivity by Thunderbolt™ 3
  • High-bandwidth and low-latency network support by dual 2.5GbE Ethernet
  • Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
  • Comprehensive connectivity with USB3.2 Gen 2 Type-A and Type-C™ connection
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Specifications

CPUAMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
ChipsetAMD B550
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • AMD Ryzen™ 5000 series processors:
  • Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors+Intel® Thunderbolt™ 3 Controller:
  1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-6, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
Wireless Communication moduleIntel® Wi-Fi 6 AX200
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x8 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x8 mode
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  1. Supporting PCIe 3.0 x4 mode
    * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
USBIntegrated in the CPU:
  1. 3 x USB 3.2 Gen 1 ports on the back panel
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+Intel® Thunderbolt™ 3 Controller:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
  1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x SATA DOM power connector
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  16. 1 x USB 3.2 Gen 1 header
  17. 2 x USB 2.0/1.1 headers
  18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  19. 1 x serial port header
  20. 1 x Clear CMOS jumper
  21. 2 x temperature sensor headers
  22. 1 x Q-Flash Plus button
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

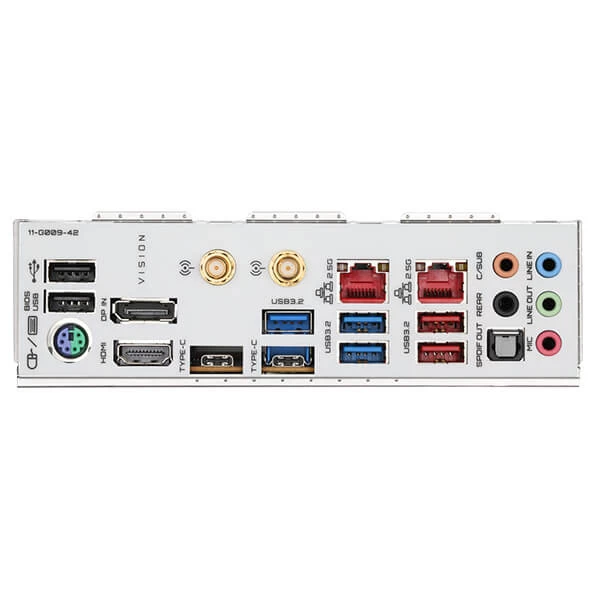

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort In port
  3. 1 x HDMI port
  4. 2 x SMA antenna connectors (2T2R)
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
  7. 3 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you inst
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty3 Years
