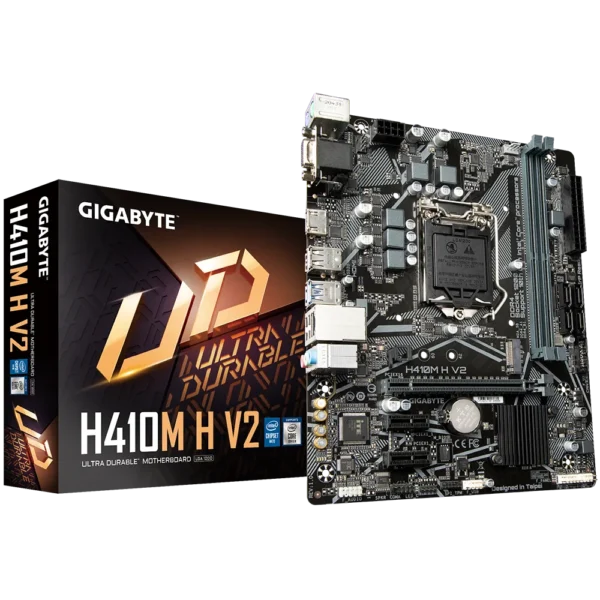

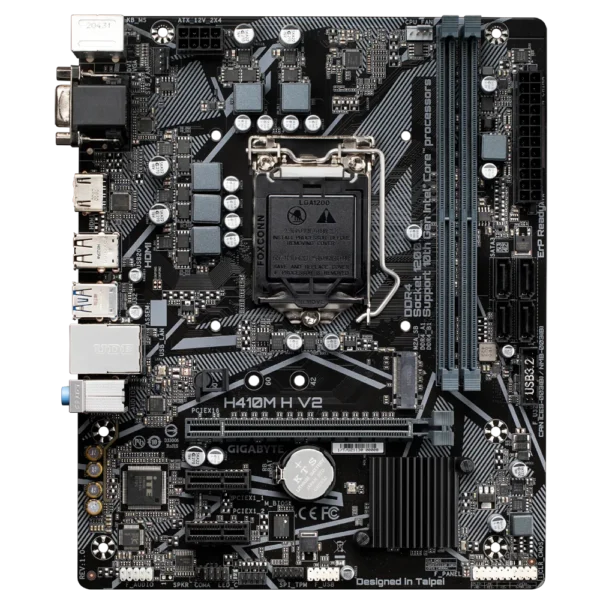

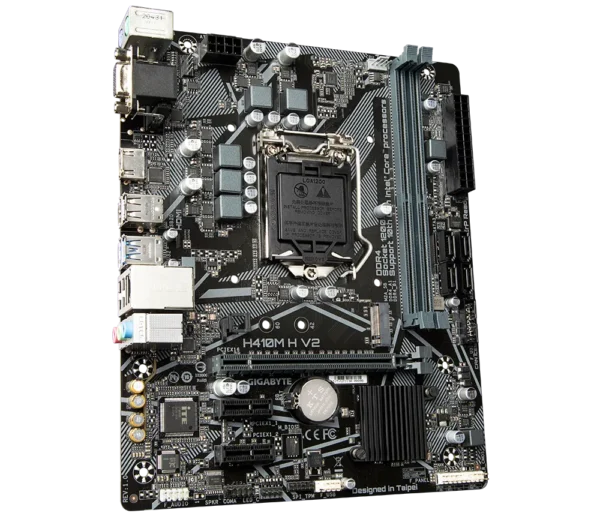

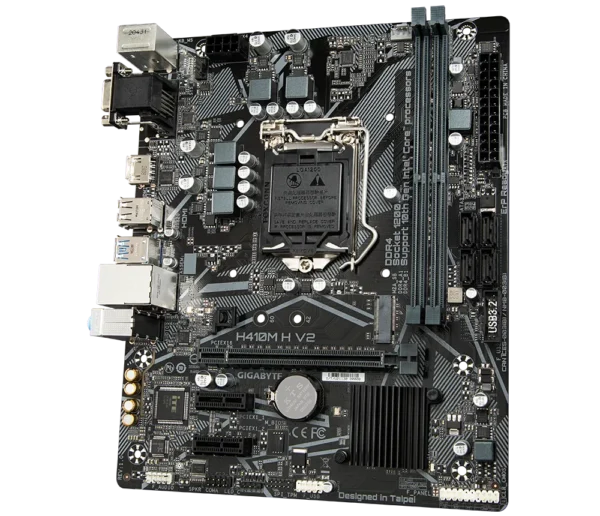

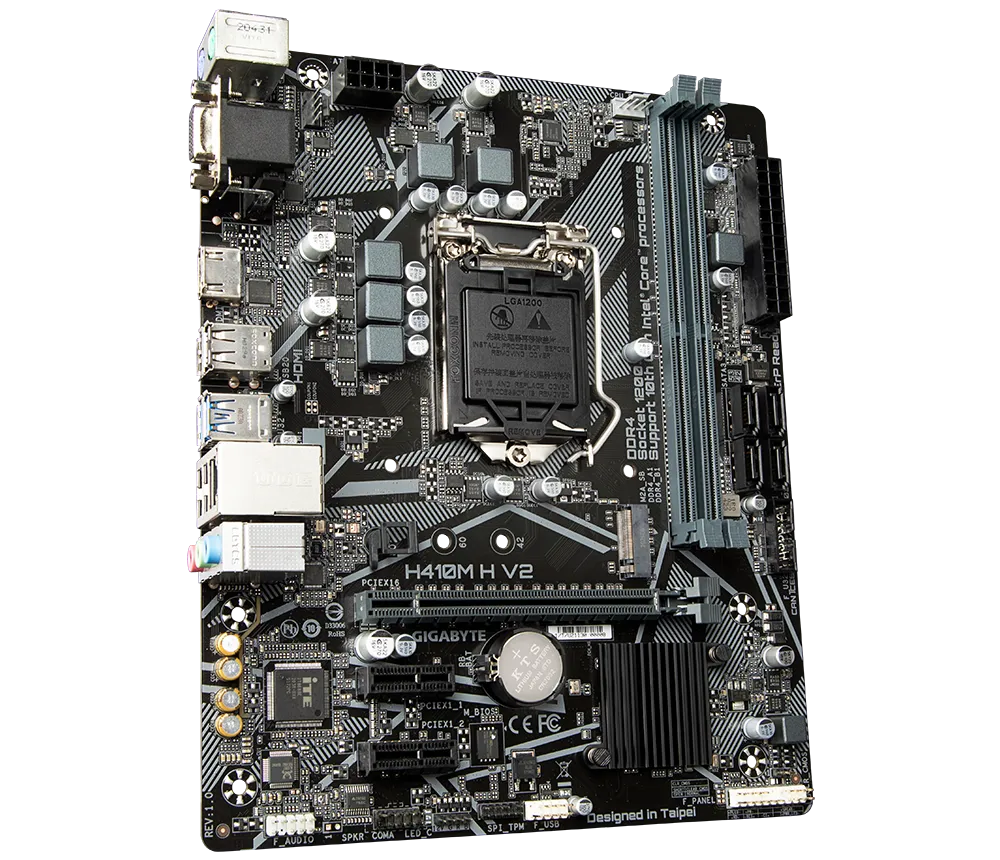

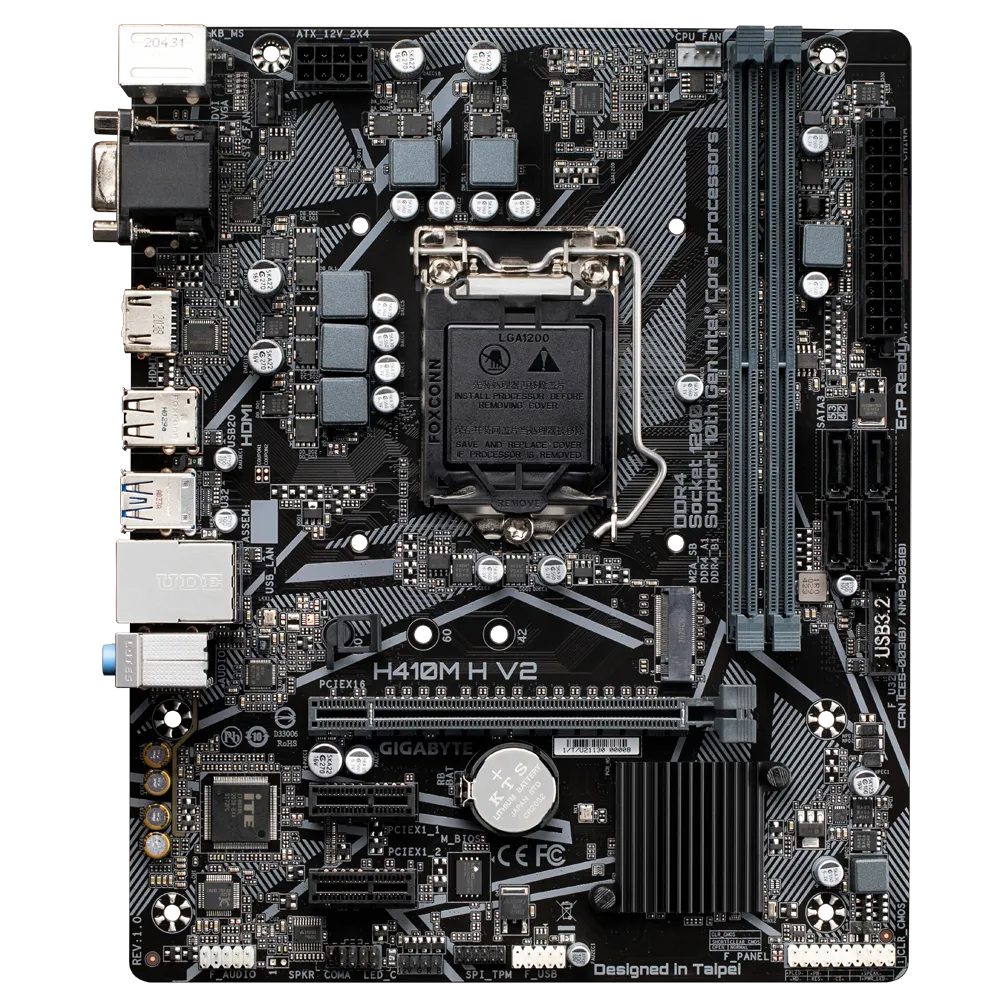

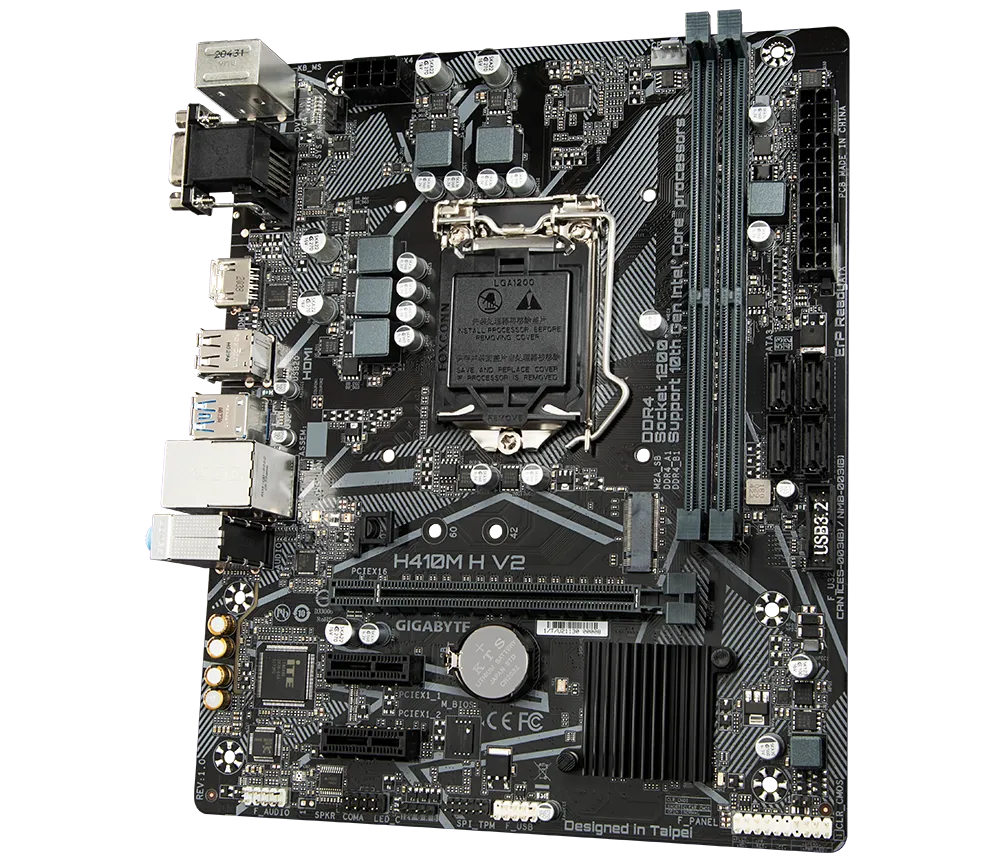

Gigabyte H410M H V2 Motherboard

  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High-Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
SKU: Gigabyte-H410M-H-V2

Original price was: ₹9,360.00.Current price is: ₹6,019.00.

Out of stock

Out of stock

56 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

And More...

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty - As Per Company Norms
  • Free 7-Day returns

Payment Methods:

Description

/*! elementor – v3.17.0 – 08-11-2023 */
.elementor-widget-image{text-align:center}.elementor-widget-image a{display:inline-block}.elementor-widget-image a img[src$=”.svg”]{width:48px}.elementor-widget-image img{vertical-align:middle;display:inline-block}

H410M H V2 rev 1 0 Key Features Motherboard GIGABYTE Global

H410M H V2 rev 1 0 Key Features Motherboard GIGABYTE Global 1

H410M H V2 rev 1 0 Key Features Motherboard GIGABYTE Global 2

H410M H V2 rev 1 0 Key Features Motherboard GIGABYTE Global 3

H410M H V2 rev 1 0 Key Features Motherboard GIGABYTE Global 6

H410M H V2 rev 1 0 Key Features Motherboard GIGABYTE Global 5

  • CPU
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® H470 Express Chipset
  • Memory
    1. Intel® Core™ i9/i7 processors:

      Support for DDR4 2933/2666/2400/2133 MHz memory modules

    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:

      Support for DDR4 2666/2400/2133 MHz memory modules

    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz

      * Support for HDMI 1.4 version and HDCP 2.3.

    Maximum shared memory of 512 MB

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel

      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

  • LAN
    1. Intel® GbE LAN chip (1 Gbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots

      (The PCI Express slots conform to PCI Express 3.0 standard.)

    Supports up to ASPM L1.2 power management protocols.

  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    4. Intel® Optane™ Memory Ready

    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

  • USBChipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x RGB LED strip header
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 1 x serial port header
    13. 1 x Clear CMOS jumper

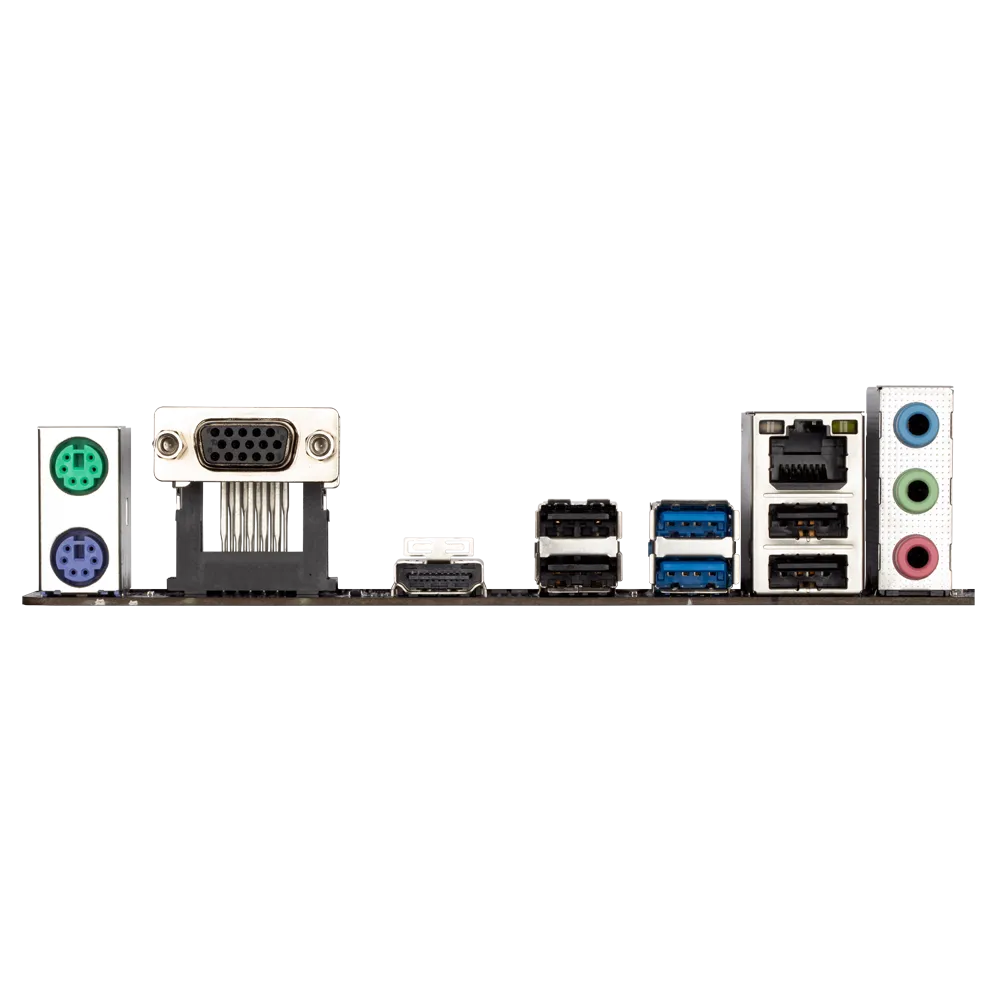

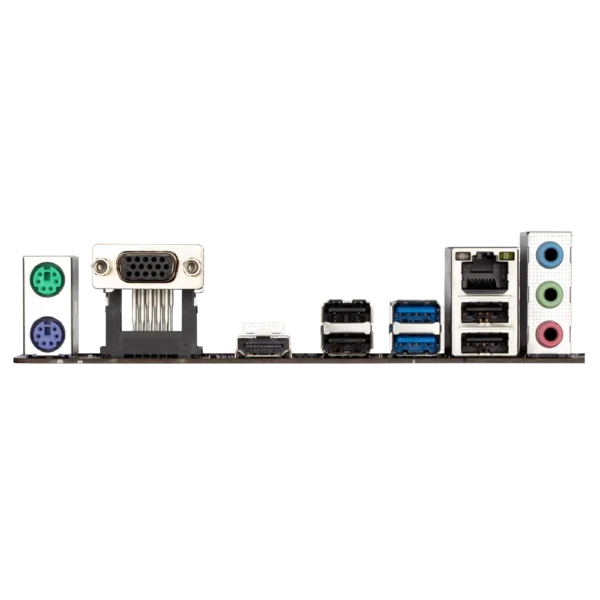

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control

      * Whether the fan speed control function is supported will depend on the cooler you install.

  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center

      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

      @BIOS

      Ambient LED

      EasyTune

      Fast Boot

      Game Boost

      ON/OFF Charge

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 18.5cm
