Gigabyte P550B 550 Watt 80 Plus Bronze SMPS

Gigabyte P550B 550 Watt 80 Plus Bronze SMPS

  • 80 PLUS Bronze certified
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 3 years warranty (Adjusted according to different regions)
SKU: GP-P550B

3,620.00

48 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

DHL courier will deliver to the specified address

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty 1-3 year
  • Free 7-Day returns

Payment Methods:

Description

Gigabyte P550B 550 Watt 80 Plus Bronze SMPS

Features

  • 80 PLUS Bronze certified
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 3 years warranty (Adjusted according to different regions)

80 PLUS BRONZE CERTIFIED

80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

Reliable Flat Cable

P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

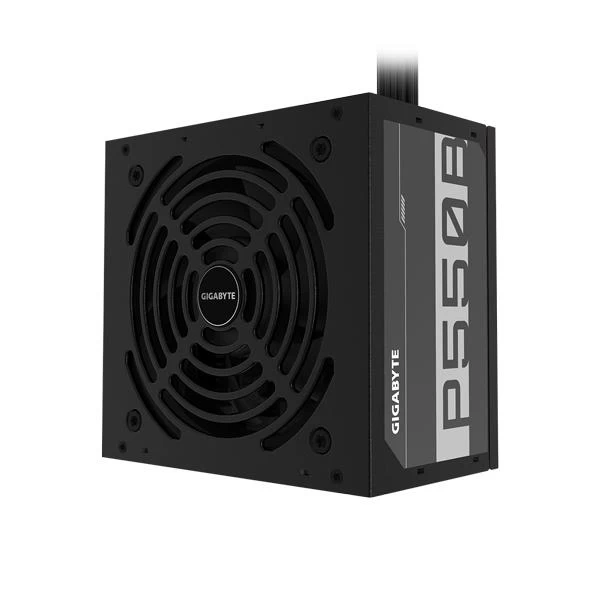

120mm Silent Hydraulic Bearing (HYB) Fan

120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Specifications

ModelP550B
TypeIntel Form Factor ATX 12V v2.31
PFCActive PFC(>0.9 typical)
Input Voltage
1‎00-240 Vac(full range)
Input Current8‎-4 A
Input Frequency6‎0-50 Hz
Output Capacity5‎50W
Dimension1‎50 x 140 x 86 mm
Fan Type1‎20 mm Hydraulic Bearing (HYB) Fan
80 PLUSBronze
Efficiency8‎5% at typical load
MTBF>100,000 hours
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal1‎00-500ms
Hold Up Time>16ms
Cable TypeFlat, All black
ConnectorsATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
Warranty3 Years
