Description

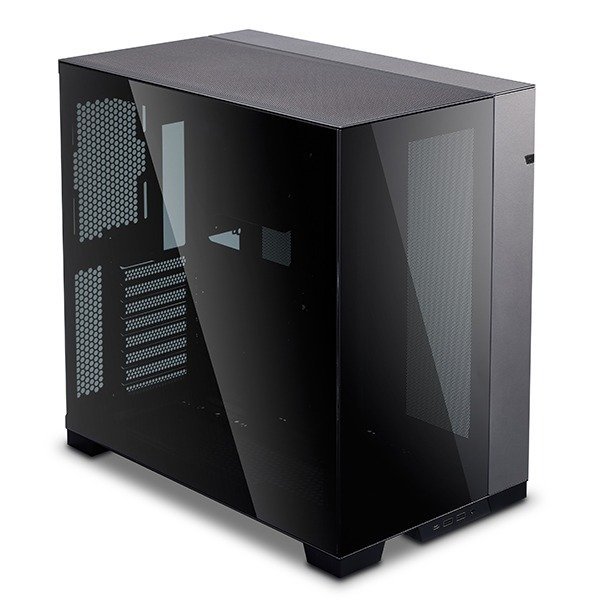

O11 DYNAMIC
-SPACE OPTIMIZATION CHASSIS-
The O11 DYNAMIC is the combination of modern design and art. Through years of researching,collecting feedback and redesigning; We have successfully craft the best edition of the dual chamber chassis.

Display your hardware like
Modern Architecture
Experience the full view seamless front and side tempered glasses like a show room

o11D evo
USB3.1 Type-C, Test the limit of transferring Speed
Type-C(USB 3.1) 1280MB/

Patented Designed Glass Mounting MechanismThe two bolt on the steel pieces adhering on the glass secure the panel with ease


O11D DISTRO-PPLATTE G1
Designed By EKWB

Dual PSUs Capability for efficiencyThe drive caddy can be swapped for second PSUs or can be switched to the lower position.
Double Layer Cable Management DesignThe angled motherboard tray and the back side cable management bar seal the and exclude any cable mess
6 Hard Drive CapabilitySupport up to 6 SSD, and 3 HDD
4 x Dust Filter, Complete Dust ProtectionBottom/top/ Side panels are all equipped with magnetic dust filters to prevent any dust infiltration
Specifications:
| Model | PC-O11DX | PC-O11DW |
| Color | BLACK | WHITE |
| Dimensions | (W)272mm x(H)446mm x(D)445mm | |
| Case Type | Tower Chassis | |
| Structure | Dual chamber | |
| Materials | (Front)Tempered Glass+Aluminum (Side)Tempered Glass (Body)Steel | |
| Expansion Slot | 8 | |
| Drive Support | 6 x 2.5″SSD or 3 x 2.5″SSD+ 3 x 3.5″ HDD | |
| I/O Ports | USB3.0 x2 , HD Audio USB3.1 Type-C x1 , HD Audio | |
| M/B Type | E-ATX / ATX / Micro-ATX / Mini-itx | |
| Fan | (Top) 120mm x3 / 140mm x2(Option) (Side) 120mm x3(Option) (Bottom) 120mm x3 (Option) | |
| Radiator | 120x 360mm / 120x 240mm / 140x 280mm | |
| VGA Card | length ≤420mm , height ≤159mm | |
| CPU Cooling | ≤155mm | |
| PSU | 2,(L)210mm~255mm(max) | |
| Filter | (Top) x1,(Side) x2, (Bottom) x1 | |
