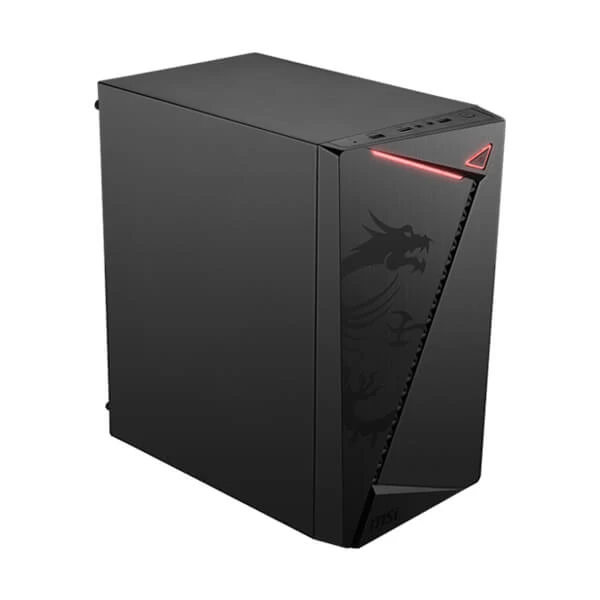

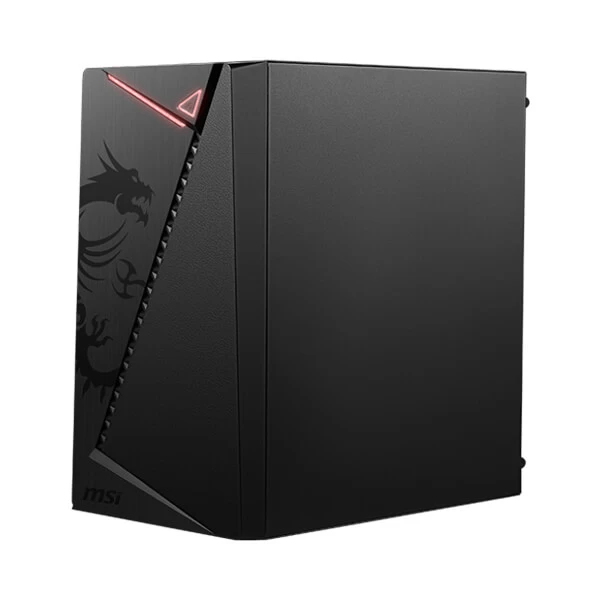

MSI MAG Shield M301 (M-ATX) Mini Tower Cabinet (Black)
- Micro-ATX Tower gaming PC case that supports Micro-ATX / Mini ITX.
- Support ATX power supply
- Storage layout that support up to 1x 2.5" and 1x 3.5"
STORAGE YOU NEED
Configure your own storage layout and install up to 1x 2.5" + 1x 3.5" storages.
The MAG SHIELD M301 one of the micro-atx chassis that supports 250mm GPU and ATX power power supply.

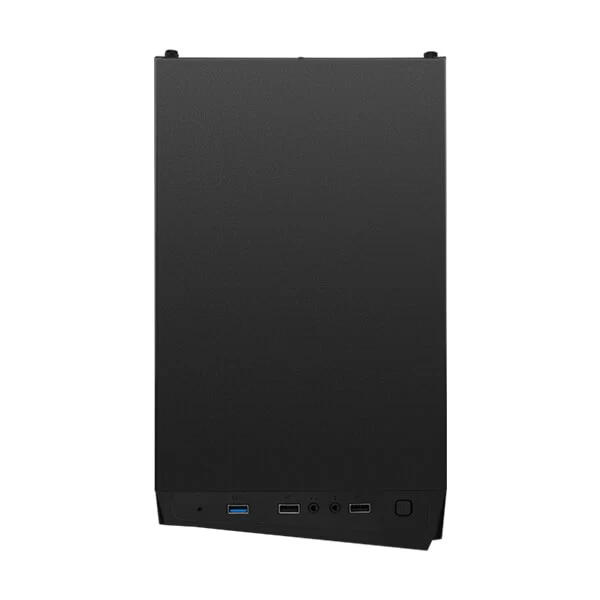

The MAG SHIELD M301 Series is built with multiple front I/O connector ports, including a USB 3.2 Gen 1 Type-A.
|Product Name||MAG SHIELD M301|
|Case Form Factor||Micro ATX-Tower|
|Motherboard Form Factor Support||Micro-ATX / Mini-ITX|
|I/O Ports||2x USB 1.0 Type-A|
1x USB 3.2 Gen 1 Type-A
|Drive Mount Support||1x 2.5”|
|Maximum GPU Length||250mm / 9.84 inches|
|Maximum CPU Cooler Height||160 mm / 6.3 inches|
|Power Supply Support||ATX|
|Maximum PSU Length||150mm / 5.91 inches|
|Fan Size Support||Front: 2x 120 mm|
Rear: 1x 120 mm
|Pre-installed Fan Size||Rear: 1x 120 mm fan|
|Pre-installed Fan Type||Rear: 1x Non-LED fan|
|Radiator Size Support||Rear: 1x 120 mm|
|Dimensions (DxWxH)||345 x 206 x 352 mm / 13.58 x 8.11 x 13.86 inches|
|Net Weight||2.28 kg / 5.03 lbs|
|Gross Weight||3.12 kg / 6.88 lbs|
