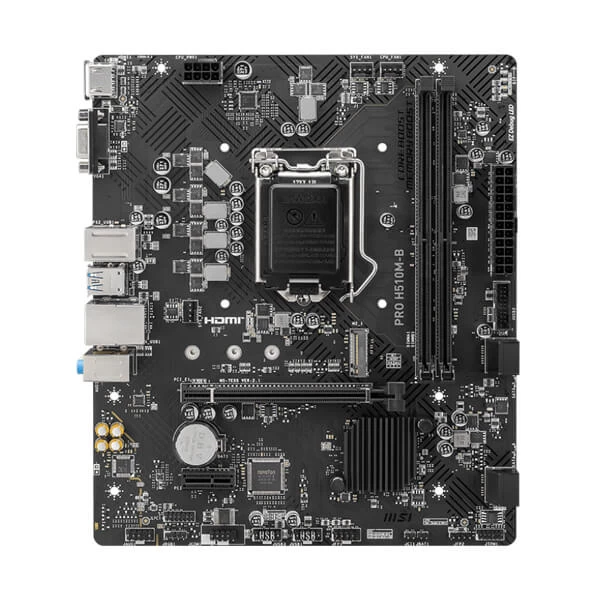

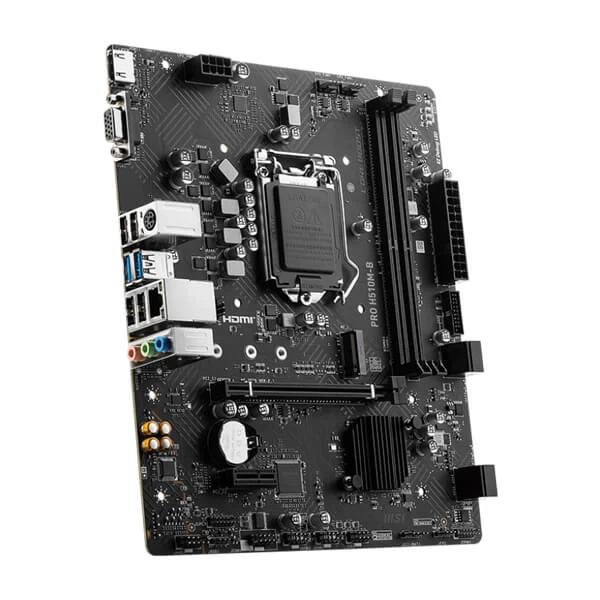

MSI Pro H510M-B Motherboard

MSI Pro H510M-B Motherboard

  • Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933MHz (MAX)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Audio Boost: Reward your ears with studio grade sound quality
SKU: PRO-H510M-B

5,385.00

32 People watching this product now!
  • Pick up from the Micro Center India

To pick up the Same-day Order Before 1:30 PM.

Free

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Free

  • DHL Courier
  • Delhivery Courier
  • DTDC Courier

DHL courier will deliver to the specified address

3 - 4 Working Days With Express
5 - 6 Working Days With Surface

Free

  • Warranty 1-3 year
  • Free 7-Day returns

Payment Methods:

Description

MSI Pro H510M-B Motherboard

Features:

  • Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933MHz (MAX)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specification:

ModelPRO H510M-B
ChipsetINTEL H470
CPU SUPPORTSupports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Memory
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support 2933/ 2666/ 2400/ 2133 MHz
  • Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
  • Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
  • 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
  • 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 1x M.2
  • M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LANRealtek® 8111H Gigabit LAN
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE4x EZ Debug LED

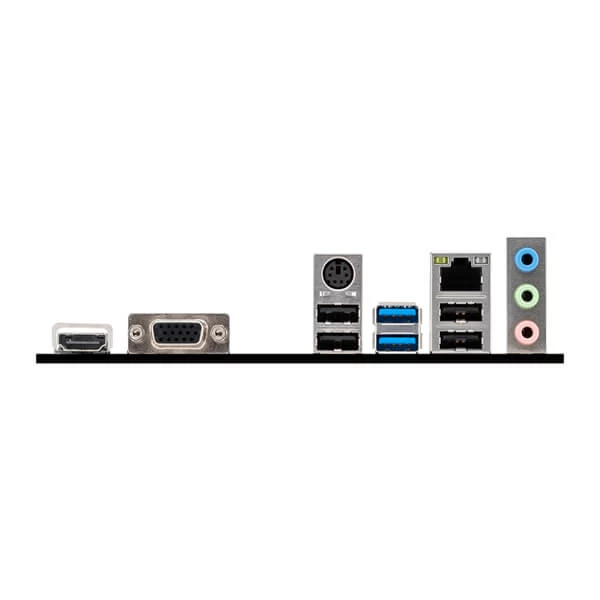

BACK PANEL PORTS
  • HDMI™
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • LAN port
  • Audio Connectors
  • USB 2.0
  • USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DimensionmATX
202mmx236mm
Warranty3 Years
